0.4mm 110° Universal Grade Carbide Dimple Cutter For SILCA Futura
| Grade | Universal Grade |
| Material | Carbide |
| Angle | 110° |
| Dimensions | 6mm x 30mm |
| Replaces | 04D |
| Part Number | 04DM |
| Applicable Machines | Silca Futura |
| Tip Width | 0.4mm |
| Type | Dimple Cutter |
| RAISE Part Number | P-3408 |
| Condition | New |
Raise / Cutters

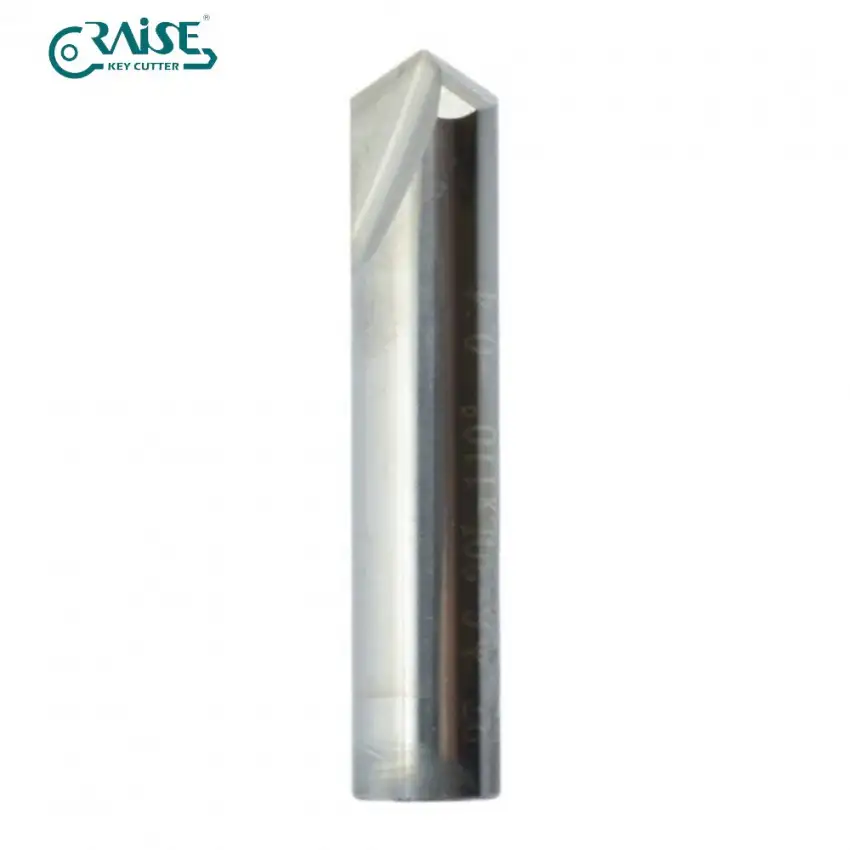

RAISE 0.4mm 110° Universal Grade Carbide Dimple Cutter for Silca Futura
The RAISE 0.4mm 110° Universal Grade Carbide Dimple Cutter is a replacement dimple cutter for cutting dimple keys on Silca Futura. It is made from carbide (Universal Grade) with a 0.4mm tip width, a 110° angle and 6mm x 30mm dimensions.
It is a direct replacement for 04D (part number 04DM).

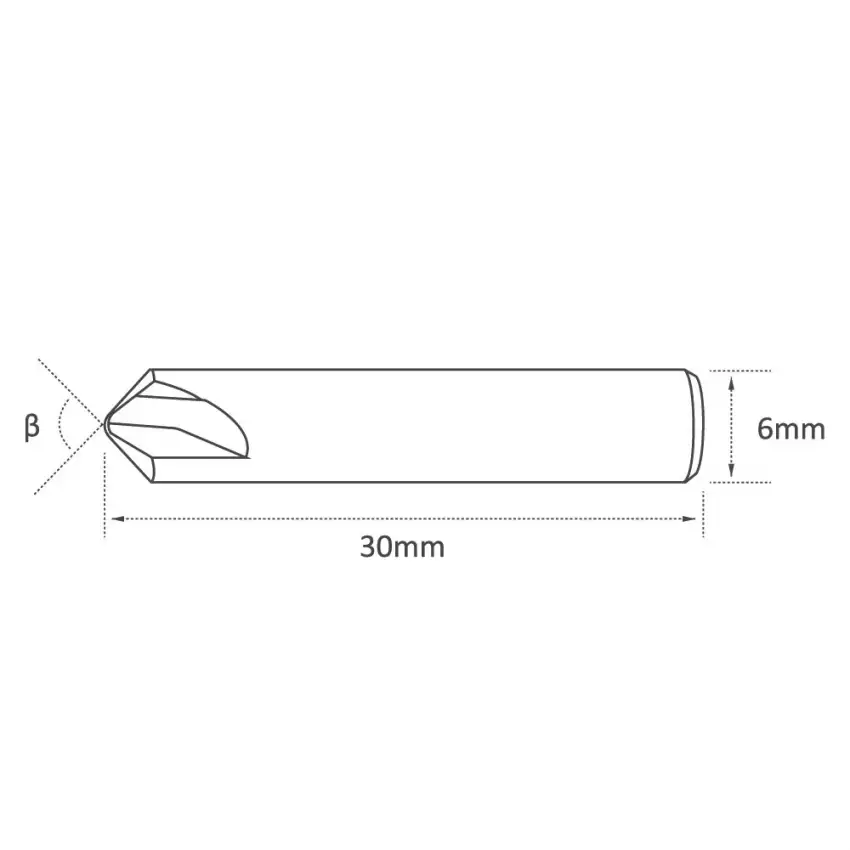

Specifications
- Brand: RAISE
- Type: Dimple Cutter
- Tip Width: 0.4mm
- Angle: 110°
- Dimensions: 6mm x 30mm
- Material: Carbide
- Grade: Universal Grade
- Replaces: 04D
- Part Number: 04DM
- RAISE Part Number: P-3408
Compatible Machines
- Silca Futura
