AccuReader For Kawasaki Motorcycle KW14R

AccuReader For Kawasaki Motorcycle KW14R-0 thumb

AccuReader For Kawasaki Motorcycle KW14R


This set will allow you to read the KW14R keyways completely and accurately without the removal of the ignition. It takes only minutes to read the depths for each cut in each position for a complete key.

The Accu-Reader works on the process of elimination to decipher the correct depths of the lock. By checking the deepest cut first you eliminate what the cuts are not. Therefore it is essential to always read depth slide #4 first.

The Accu-Reader key is designed to be used for wafer positions 3-6 on one side of the key and wafer positions 1-2 on the opposite side of the key. All the positions can be read from one side of the key, however it is recommended to flip the key over and use the other side. This allows for reading the 1- 2 wafer positions with a fully or almost fully inserted key, increasing the accuracy.

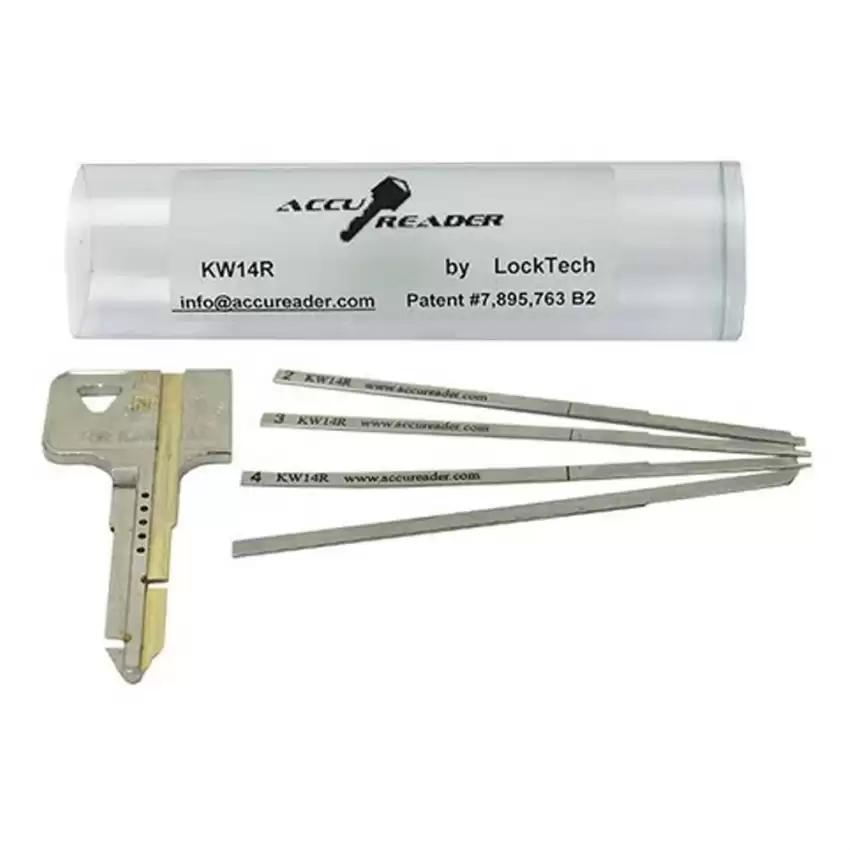

Package Contents:

  • 1-Accu-Reader key
  • 1-insertion/release slide
  • 1-depth slide #4
  • 1-depth slide #3
  • 1-depth slide #2
  • 1-Tube storage container
  • 1-Tube Cap

KW14R Compatibility List

  • 2008 Concourse (KW14 or KW14R)
  • 1987-2001 Classic
  • 1987-2001 Nomad
  • 1987-2001 Vulcan500/800/1500 (KW14 or KW14R)
  • 1987-2001 KLR/KLX (KW14 or KW14R)
  • 1987-2001 Eliminator 125 (KW14 or KW14R)
