ACDP Module 41 for Toyota R7F7014xx/S6J3xx ODO OBD/CAN Mileage Correction
| Condition | New |
Yanhua ACDP / Key Programming Devices

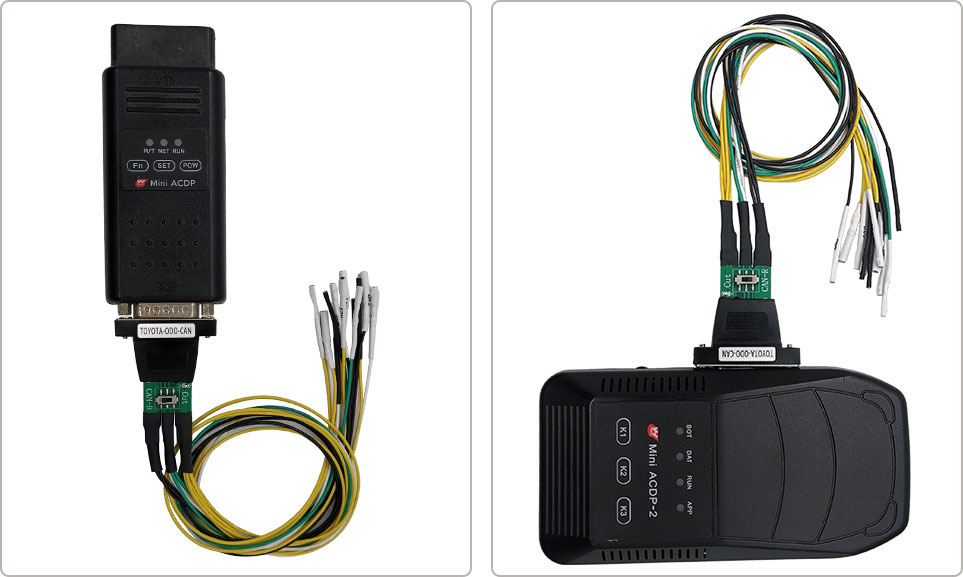

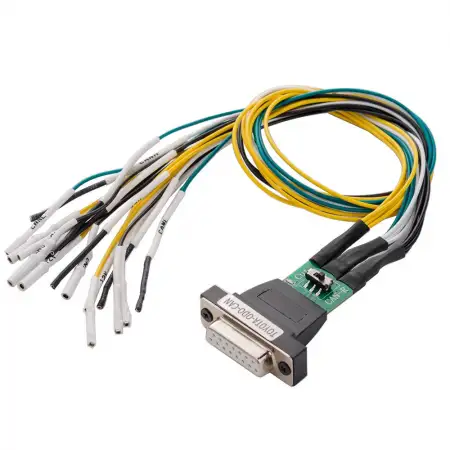

ACDP Module 41 for Toyota R7F7014xx / S6J3xx ODO OBD/CAN
Module Functions:
- Supports Toyota S6J3001 (2019–) encrypted and unencrypted instrument clusters for mileage correction via OBD/CAN method.
- Supports Toyota R7F701401 (2021–) encrypted and unencrypted instrument clusters for mileage correction via OBD/CAN method.
- Supports Toyota R7F701441 encrypted instrument clusters for mileage correction via OBD/CAN method.

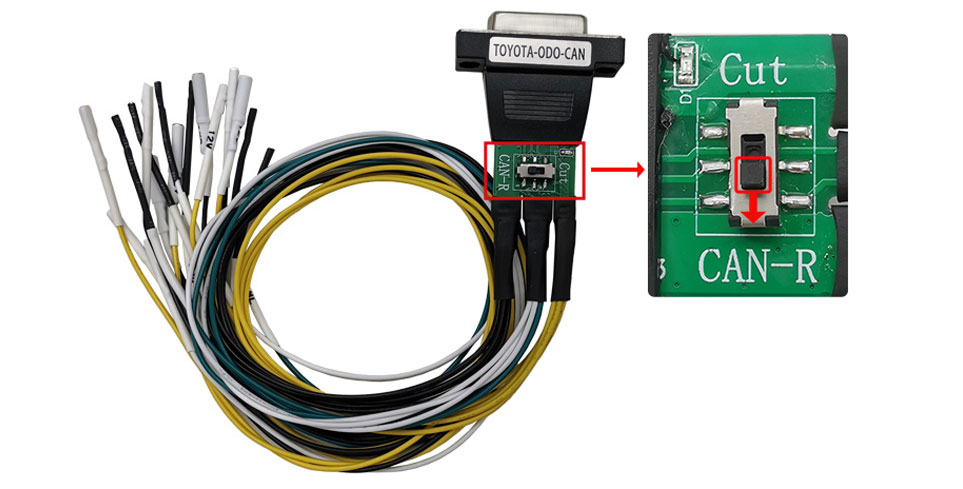

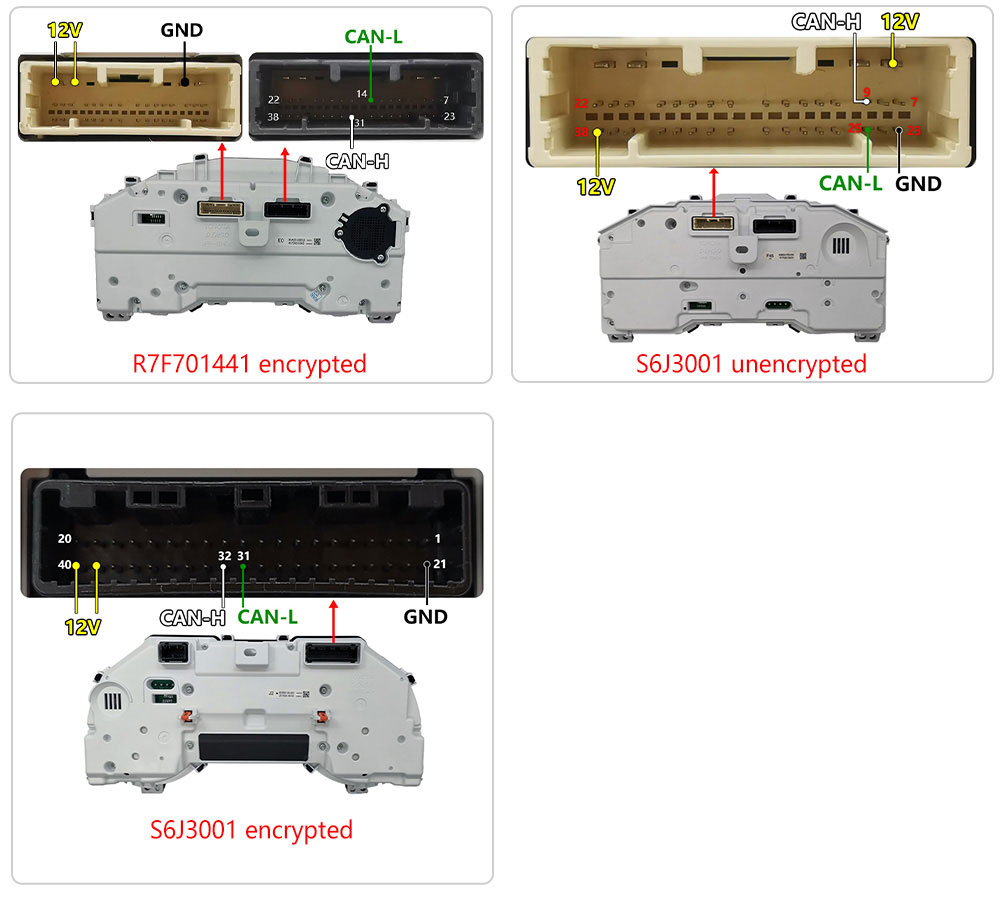

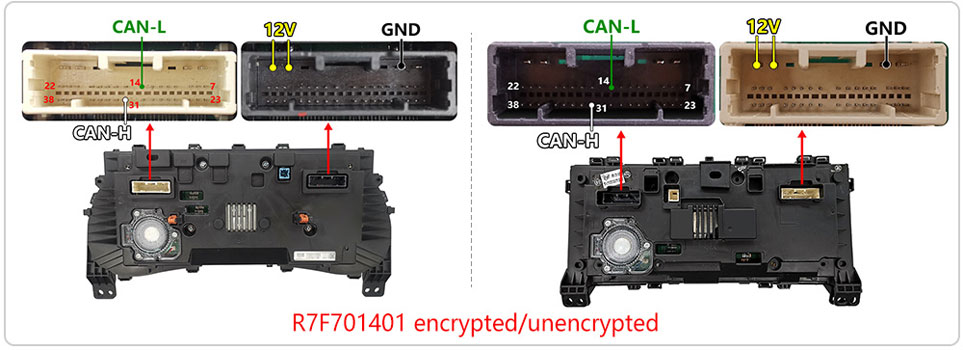

Connection diagram:
Method 1: CAN connection



Method 2: OBD connection

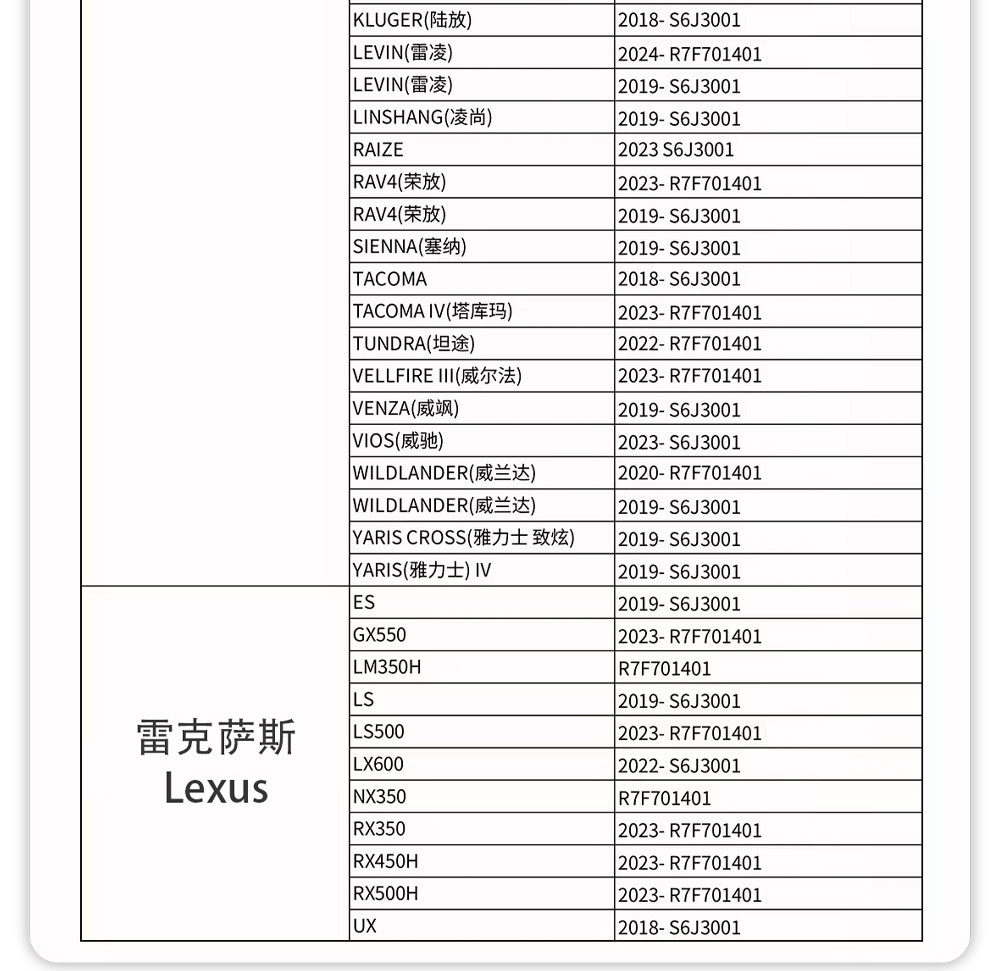

Supported Models:

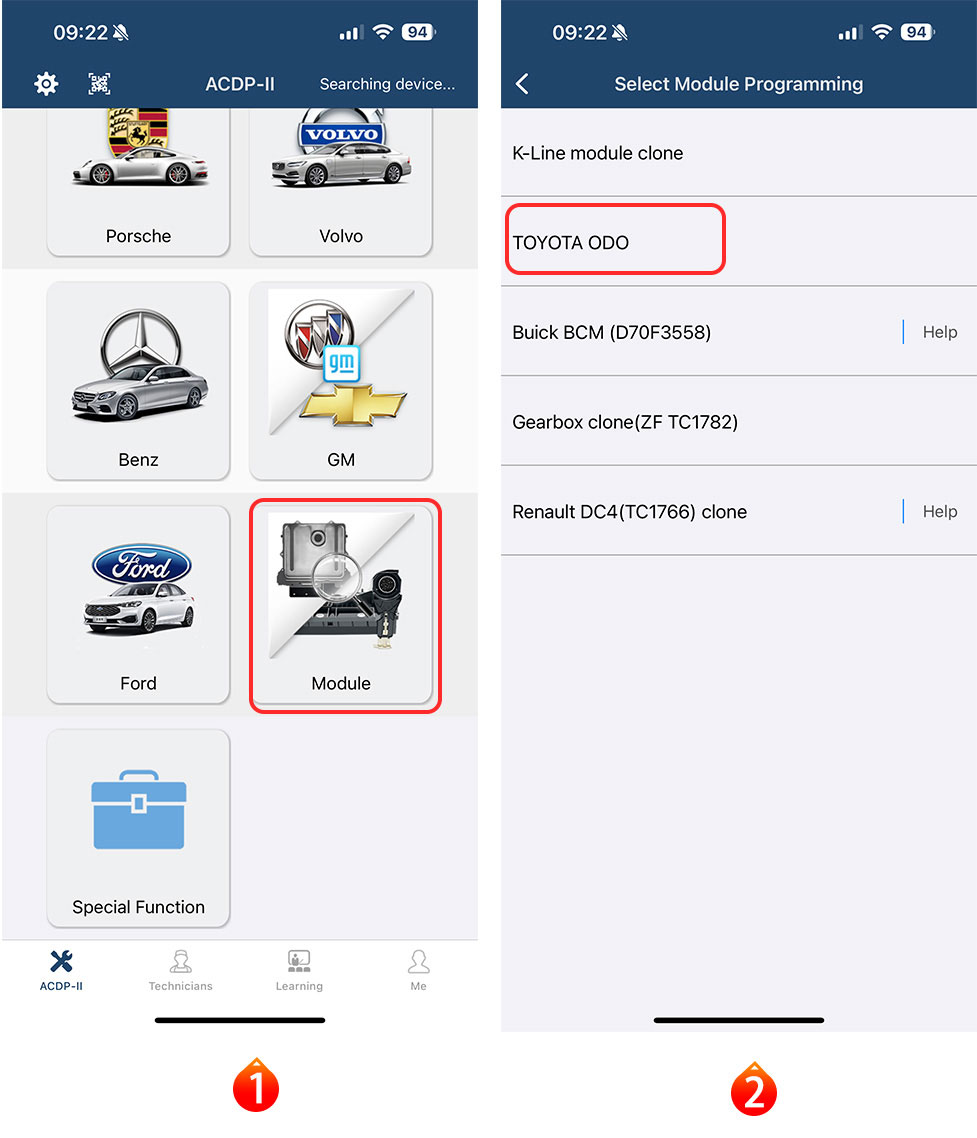

APP operation interface:
