Autel MaxiIM IM508 Key Programmer & Diagnostic Tool (USA Version)

Autel MaxiIM IM508 Key Programmer & Diagnostic Tool (USA Version)-0 thumb
MaxiIM IM508 Key Programmer and Diagnostic Tool From Autel thumb
PD-AUT-IM508

Autel MaxiIM IM508 Key Programmer & Diagnostic Tool (USA Version)

$1,150.00 Was $1,200.00 (Save 4%)

Operating SystemAndroidTM 4.4.4
ProcessorCortex-A9 processor (1.6 GHz)
Memory32GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (supports up to 32GB)
SensorsAmbient light sensor for brightness auto changing
Audio Input / OutputInput: N/A
Outputbuzzer
Power and Battery3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery LifeAround 4.5 hours of continuous use
Battery Charging Input5 V/1.5 A
Power Consumption500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.0 to 50øC (32 to 122øF)
Storage Temp.-20 to 60øC (-4 to 140øF)
Operating Humidity5% - 95% non-condensing
Net Weight2.42 lb.
ConditionNew

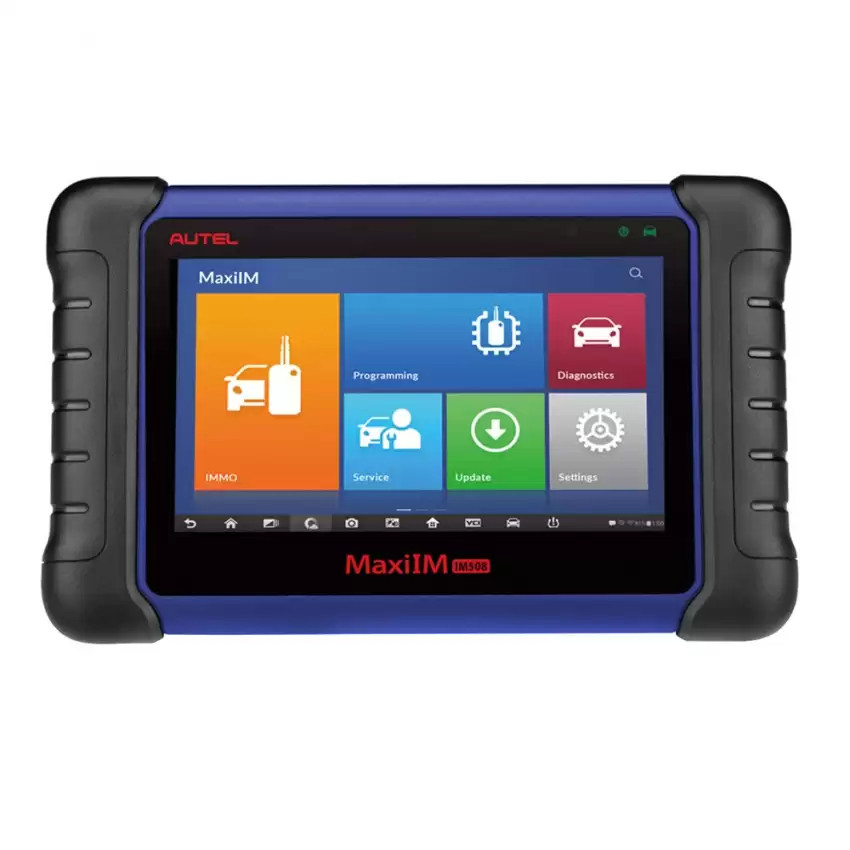

MaxiIM IM508 is a fast and easy-to-use ultra portable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Equipped with the XP200 key programmer, IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

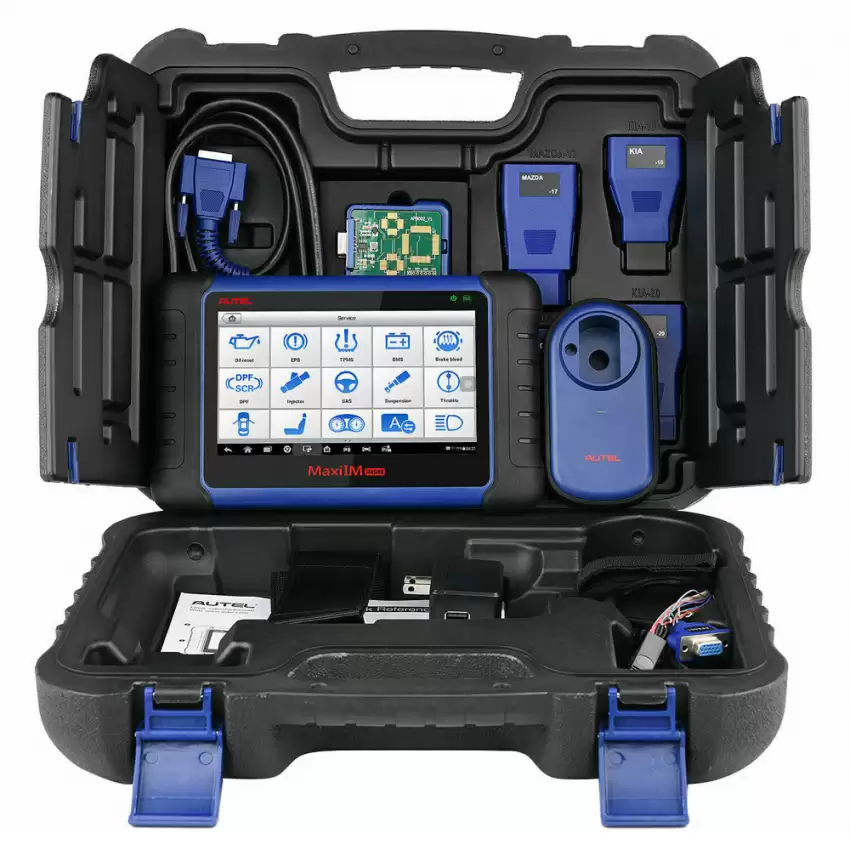

What the package includes:

  1. IM508 Tablet
  2. XP200 Key Programmer
  3. Cables & Cords
  4. USB Adapter
  5. Carry Case

Characteristics:

  • Powerful Cortex-A9 processor.
  • 7”1024x600 LCD capacitive touchscreen.
  • Internal reliable 32GB Memory.
  • Android Operating System for fast boot-up and multitasking.
  • Powerful combination of key programming/all system diagnostics/advanced maintenance services.
  • Smart Mode for guided and automated key learning.
  • Expert Mode for advanced key learning.
  • Read PIN/CS (all key lost) , key generation, key learning, remote learning.
  • IMMO ECU reset/adaptation, refresh/coding.
  • Transpronder read/write, EEPROM/MCU read/write.
  • Powerful OE level diagnostics for more than 80 US, Asian and European makes and models.
  • Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn.

Immo and Key Programming

  • Read PIN / CS (All Key Lost)
  • Key Generation
  • Key Learning / Remote Learning
  • Backup / Restore IMMO data
  • IMMO ECU Reset / Adaptation / Refresh / Coding
  • BMW FEM / BDC Key Learning and ECU Adaptation
  • VW, AUDI MQB Key Learning, 48 Transponder (96-Bit) Add - Key, All Key Lost, A6 All Key Lost.
  • XP200 Key & Chip Programming.
  • Key Read / Write
  • EEPROM / MCU Read / Write

All Systems Diagnostics:

  • OE Level Diagnostics
  • 80+ Vehicle Makes
  • Shop & Data Manager Apps
  • Advanced Maintenance Services including EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID relearn.
