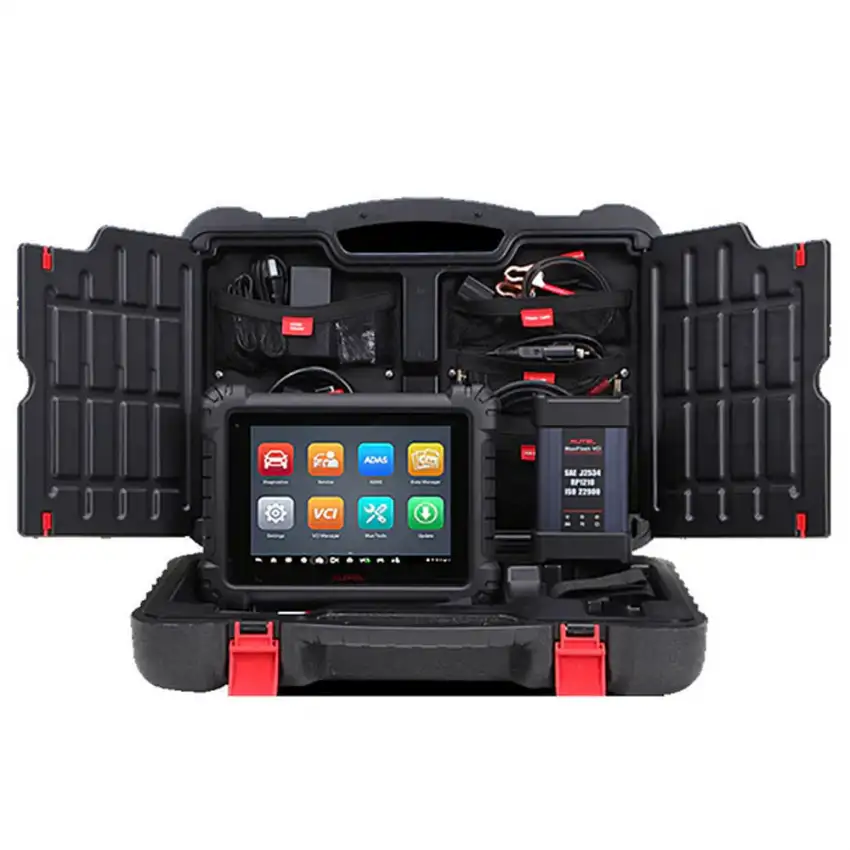

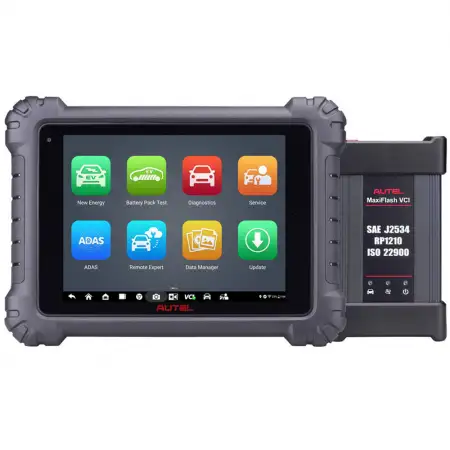

Autel MaxiSYS MS909 Advanced Smart Diagnostic Tablet MaxiFlash VCI Measurement System
| Operating System | Android 7.0 / Android 10.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | Dual Wi-Fi(802.11 a/b/g/n/ac 2x2 MIMO), BT V5.0 + BR/EDR, GPS, USB 2.0, HDMI 2.0, SD Card |
| Camera (Rear) | 16 Megapixel, Autofocus with Flashlight |
| Camera Front | 16 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jac |
| Power and Battery | 15000mAH 3.8V lithium-polymer battery, Charging via 12V AC/DC |
| Input Voltage | 12V/3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 304.4 mm (11.98 |
| Weight | 1.66kg (3.66 lb.) |
| Condition | New |
Autel / Diagnostic Tools
The MaxiSYS MS909 is a high-performance diagnostic tablet with a 9.7-inch Android touchscreen, powered by an octa-core processor and equipped with 128GB of memory. It includes an advanced VCI that supports the latest vehicle communication protocols, including DoIP, D-PDU, and Mega CAN.

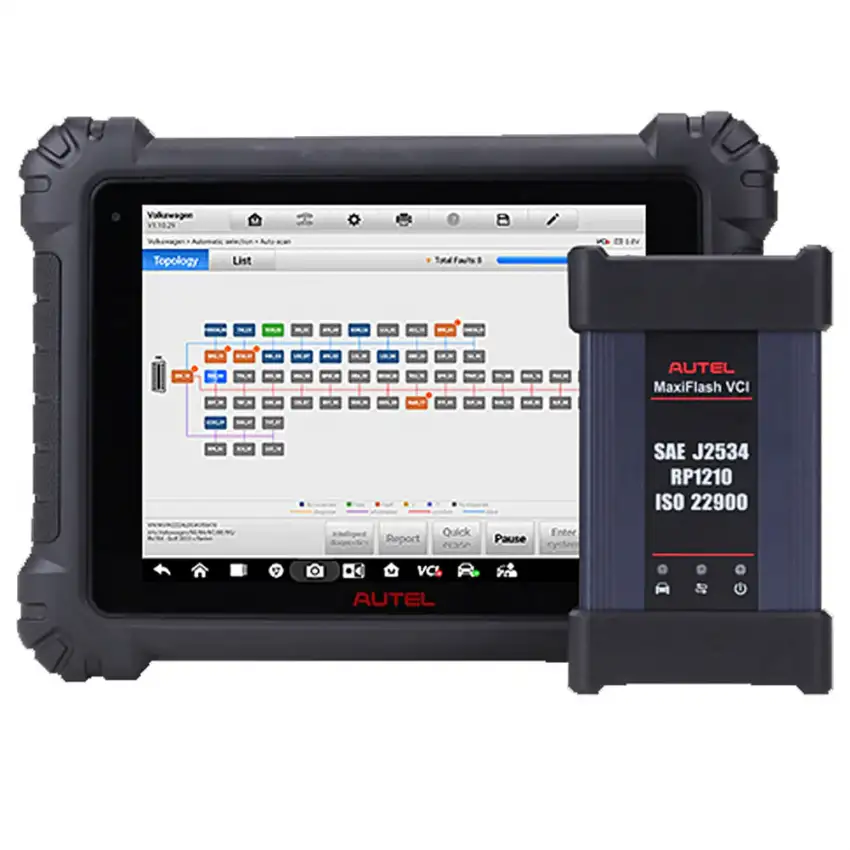

Designed for efficiency, the MS909 offers topology module mapping for supported vehicles, enabling streamlined diagnostics. It features a rechargeable lithium battery that delivers up to 8 hours of continuous use. Additionally, the device is equipped with both front and rear cameras, enhancing its versatility and usability.
- Autel updates deliver the latest OE-level coverage for over 80 US Domestic, Asian, and European vehicles, including supercars.
- Provides exceptional OE-level functionality, encompassing comprehensive OBDII diagnostics, advanced services, ECU coding, and programming.
- Enables automatic system and software updates with real-time push notifications via the internet for seamless operation.
- Offers Interactive Data Logging sessions, allowing direct communication with Autel Support for troubleshooting diagnostic issues.
- Features a one-stop multitasking solution for efficient workshop management, keeping data files, customer details, and vehicle records well-organized.
- Includes a cloud-based Data Manager for secure storage of customer records, vehicle data, scanner information, and technician notes.
