Autel MaxiSYS MS909CV Commercial Vehicle Diagnostics Tablet With Wireless VCI/J2534
| Operating System | Android 10 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO), BT V5.0 + BR/EDR, GPS, USB 2.0, HDMI 2.0, SD Card (up to 256GB) |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight, Front: 16 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, dual speakers, 3.5 mm stereo headset jack |
| Power and Battery | 15000mAH 3.8V lithium-polymer battery, Charging via 12V AC/DC power supply |
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98 |
| Weight | 1.66kg (3.66 lb.) |
| Condition | New |
Autel / Diagnostic Tools

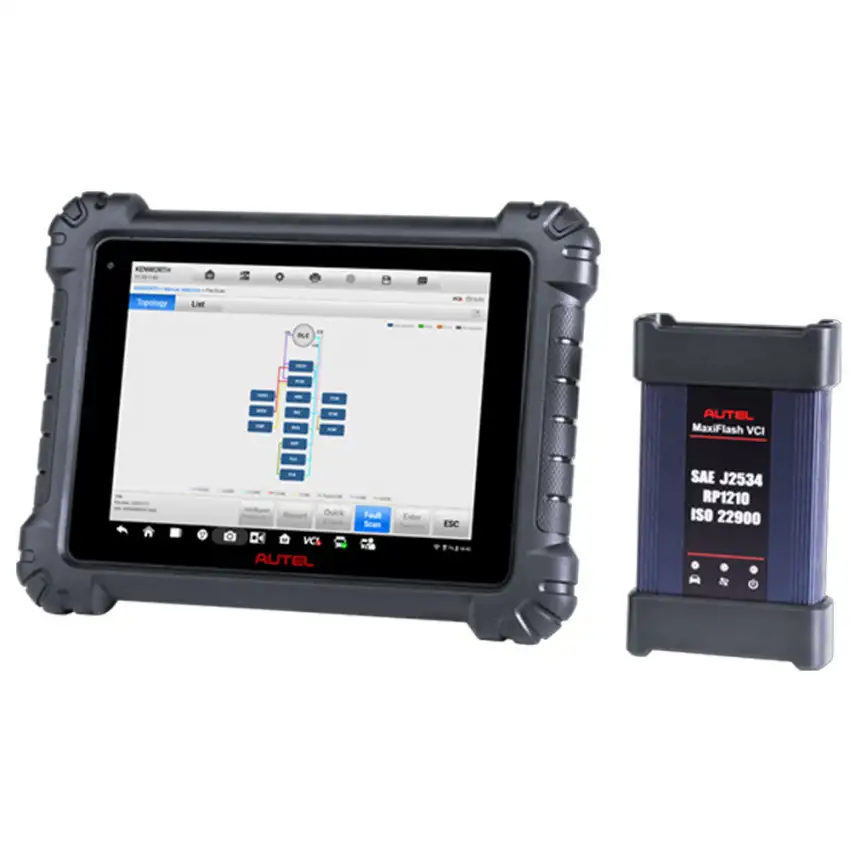

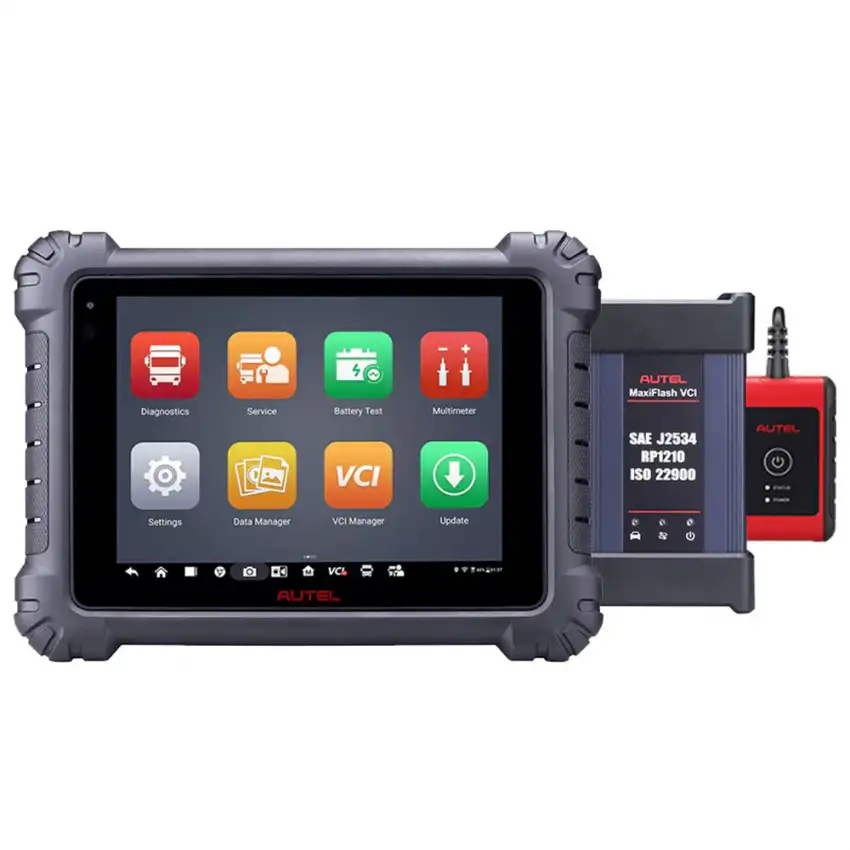

The Autel MaxiSYS MS909CV is a powerful diagnostic tablet designed for commercial vehicles, compatible with over 80 models across light, medium, and heavy-duty categories. Featuring a 9.7-inch wireless Android touchscreen, it delivers extensive diagnostics, including reading and erasing codes, viewing and graphing live data, and performing active tests.

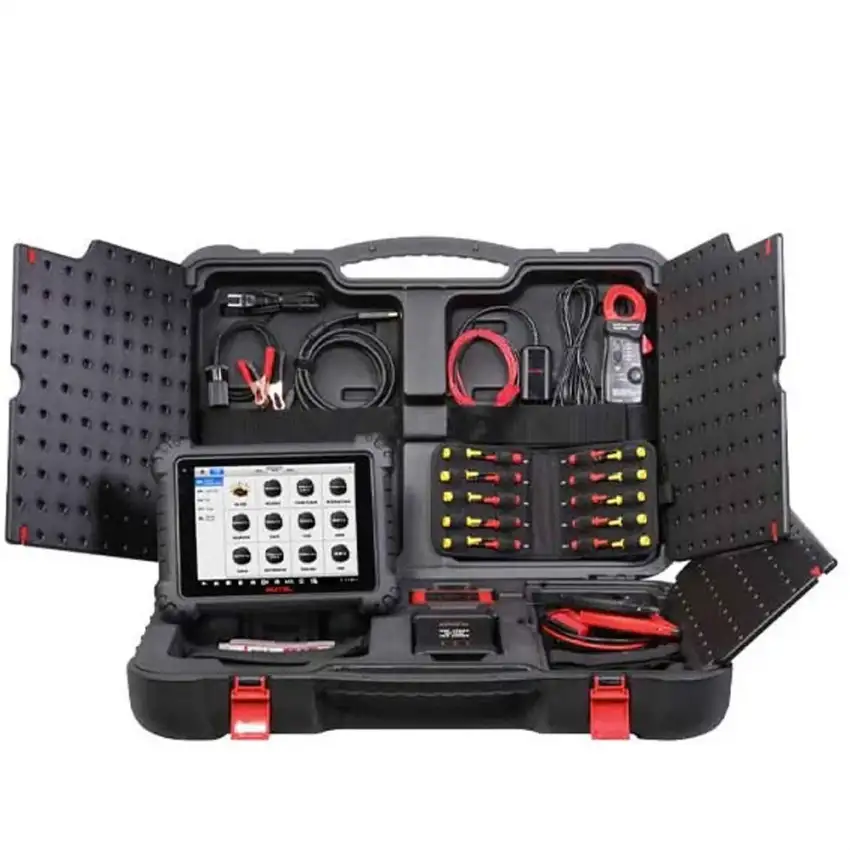

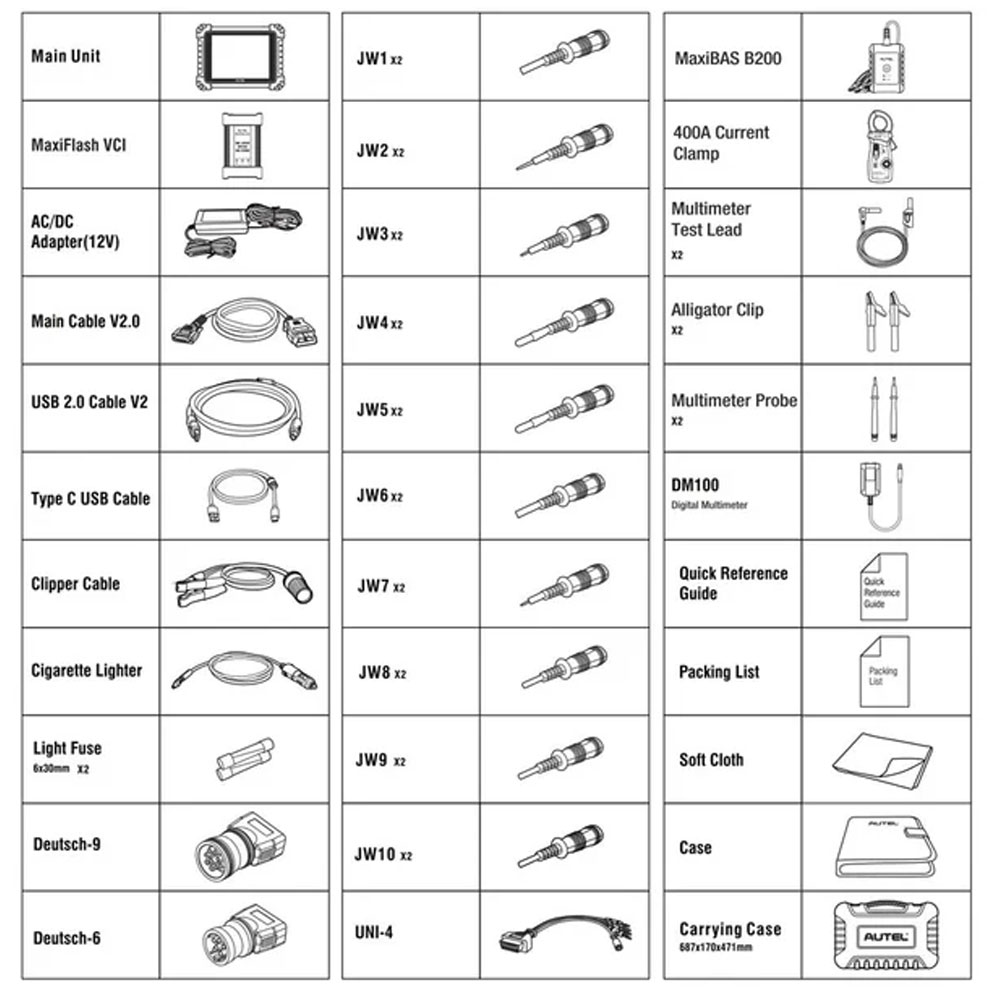

This advanced tablet includes a Bluetooth-enabled Vehicle Communication Interface (VCI)/J2534 pass-thru device, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, a multimeter, and amp clamps. Additionally, it supports ADAS Calibration Software for Class 3-5 and Class 6-8 vehicles equipped with dynamically calibrated systems.
- Equipped with an upgraded Octa-Core processor, 128GB storage, and the Android 10.0 operating system, complemented by a 9.7-inch touchscreen and the all-new MaxiFlash VCI for seamless performance.
- Offers advanced diagnostics with module topology mapping on select vehicles, along with enhanced AutoSCAN and VINScan capabilities.
- Provides ADAS calibration with complete Class 3-5 coverage and new Class 6-8 dynamic calibration, with static calibration for Class 6-8 vehicles coming soon.
- Supports heavy-duty battery testing and generates comprehensive health reports.
