Autel MaxiSYS MS919 Diagnostic Tablet with Advanced MaxiFlash VCMI
| Operating System | Android 7.0 / Android 10.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO), BT V5.0 + BR/EDR, GPS, USB 2.0, HDMI 2.0, SC Card |
| Camera Rear | 16 Megapixel, Autofocus with Flashlight |
| Camera Front | 16 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 15000mAh 3.8V lithium-polymer battery, Charging via 12V AC/DC power supply |
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 304.4 mm (11.98 |
| Weight | 1.66kg (3.66lb.) |
| Condition | New |
Autel / Diagnostic Tools

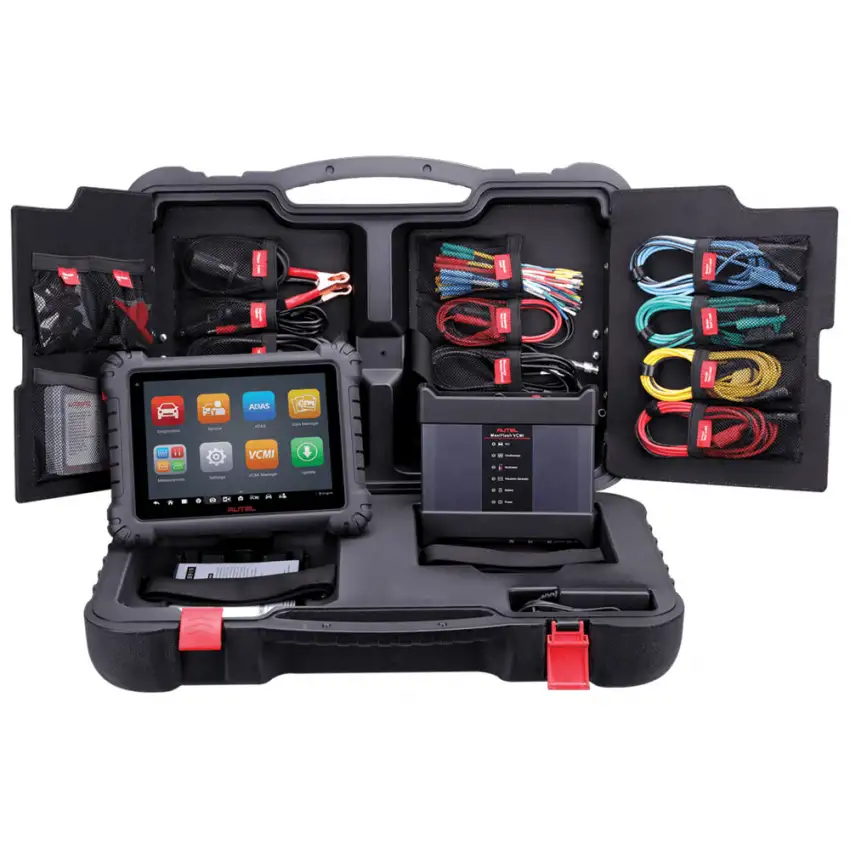

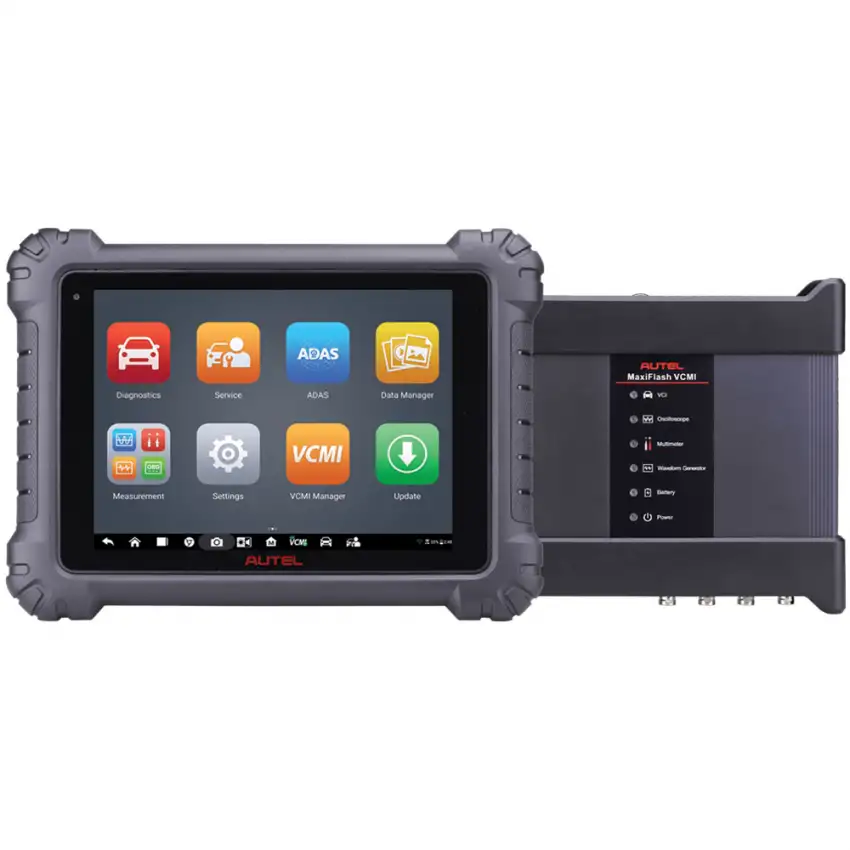

The MaxiSYS MS919 is a cutting-edge diagnostic tablet featuring a 9.7-inch Android touchscreen, powered by an octa-core processor and 128GB of storage. It comes with the MaxiFlash VCMI, a versatile 5-in-1 tool that enables wireless communication between the tablet and vehicles, supporting the latest protocols such as DoIP, D-PDU, and Mega CAN. Beyond communication, the VCMI serves as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
Designed for advanced diagnostics, the MS919 includes dynamic topology module mapping for supported vehicles, preset oscilloscope guides, tests, and access to a waveform library. Equipped with a rechargeable lithium battery, it offers up to 8 hours of continuous use. Additionally, it features both front and rear cameras, enhancing its functionality and convenience.
- Autel updates ensure the latest OE-level coverage for over 80 US Domestic, Asian, and European vehicles, including supercars.
- Delivers exceptional OE-level functionality, ranging from comprehensive OBDII diagnostics and services to advanced ECU coding and programming.
- Features automatic system and software updates with real-time push notifications via the internet.
- Interactive Data Logging sessions provide direct access to Autel Support for troubleshooting diagnostic bugs and errors.
- Offers a one-stop multitasking platform for efficient workshop management, organizing data files, customer information, and vehicle records.
- Utilizes a cloud-based Data Manager to securely store customer and vehicle records, scanner data, and technician notes.
Accessories:
Downloads:
MaxiSys MS919 User Manual
MaxiSys MS919 Specs
MaxiSys MS919 Flyer
