Autel MaxiTPMS ITS600K20 kit with the ITS600 tablet and twenty 1-Sensors

Autel MaxiTPMS ITS600K20 kit with the ITS600 tablet and twenty 1-Sensors-0 thumb
TPMS-AUT-ITS600K20

Autel MaxiTPMS ITS600K20 kit with the ITS600 tablet and twenty 1-Sensors

$849.00Was $965.00 (Save 12%)

  • New Arrival
Recommended UseIndoor
Operating SystemAndroid 9.0
ProcessorQuad-core processor (1.5 GHz)
Memory1 GB RAM DDR4 & 64GB ROM
Display5.5-inch LCD capacitive touchscreen with 1280×720 resolution
ConnectivityWi-Fi, USB 2.0, Type C, BT
SensorsLight sensor for brightness auto adjust
Audio input/outputInput: N/A, Output: Beep
Power and Battery3.8 V/5000 mAh lithium-polymer battery, Charges via 5 V AC/DC power supply
Battery Charging Input5 V/2 A
Power Consumption600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp.-10 to 45ºC (14 to 113ºF)
Storage Temp.-20 to 60ºC (-4 to 140ºF)
Dimensions (W x H x D)183.0 mm (7.2″) x 89.0 mm (3.5″) x 22.0 mm (0.87″)
Net Weight368 g (0.8 lb.)
ProtocolsISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
ConditionNew
Report incorrect product information

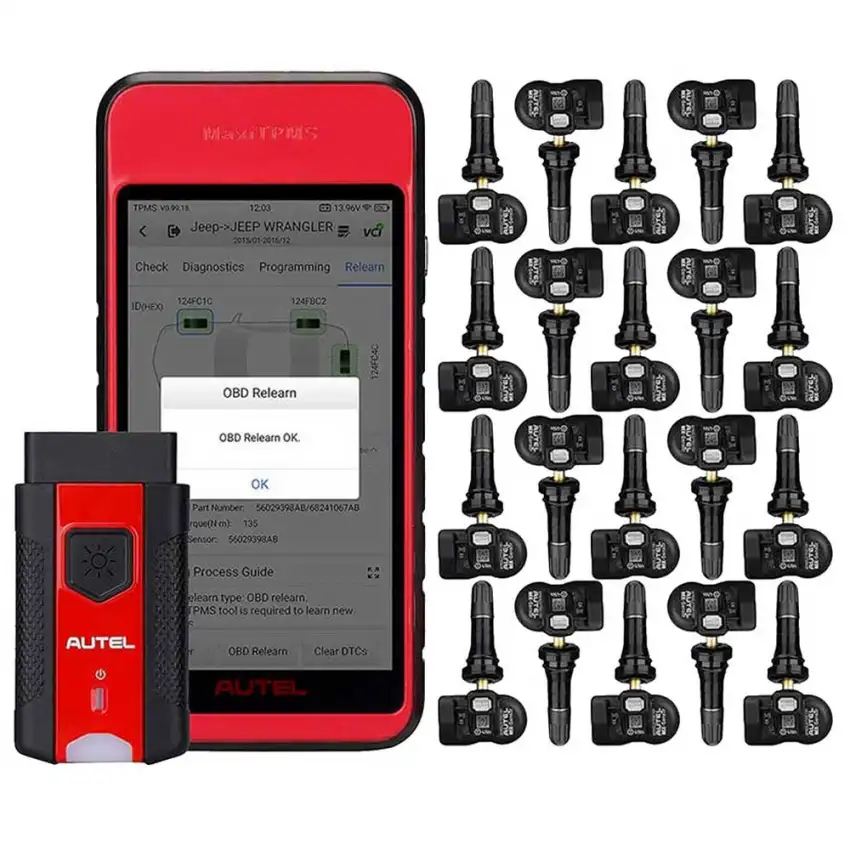

The MaxiTPMS ITS600K20 kit comprises the ITS600 tablet along with twenty 1-Sensors, providing an extensive solution for TPMS diagnostics and service. The MaxiITS600 tablet is a wireless Android-based device with an intuitive touchscreen interface. Featuring a vivid 5.5-inch color display, it is equipped with a Bluetooth vehicle communication interface (VCI).

Tailored to U.S., Asian, and European TPMS-equipped vehicles, the ITS600 tablet offers a range of functionalities. These include an enhanced TPMS status screen, VINscan for swift vehicle identification, four MX-Sensor programming options, OBDII relearn functionality, and on-screen relearn instructions tailored for all vehicles.

Capable of activating, reading, and relearning all known sensors, the ITS600 tablet also conducts comprehensive vehicle systems diagnostics and supports four common maintenance services. Furthermore, it is compatible with Autel's TBE200 Tire Tread & Brake Disc Wear Analysis tool (sold separately).

The ITS600 tablet comes with one year of free TPMS software updates and is backed by a one-year limited warranty, ensuring continuous support and reliability for users.

Description:
MaxiTPMS ITS600K8 Kit

  • Includes ITS600 TPMS Service and Diagnostic Tablet with (20) 1-Sensors
  • Wireless Touchscreen Android-based Tablet Tool
  • Activates, Reads and Relearns All Known Sensors
  • Four MX-Sensor Program Modes; Batch Program Up to 20 MX-Sensors
  • 5.5 Inch Color Display; Android 9.0 OS
  • Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
  • Enhanced, At-a-Glance Diagnostics Status Screen
  • Rapid VIN Acquisition Via Optical VINscan Function
  • Program MX-Sensors to replace 99% of OE Sensors
  • Read/Erase All System Codes and Perform OLS, BMS, SAS and EPB

Downloads:
Battery Tester Memory Saver Kit Flyer
ITS600 Pro Upgrade
