Autel MaxiTPMS TS608K-1 Tablet Kit With 8 Sensors

Autel MaxiTPMS TS608K-1 Tablet Kit With 8 Sensors-0 thumb
MaxiTPMS TS608K-1 Tablet Kit With 8 Sensors From Autel thumb

Autel MaxiTPMS TS608K-1 Tablet Kit With 8 Sensors

$799.99Was $1,195.00 (Save 33%)
  • Product Code: #TPMS-AUT-TS608K-1
  • Manufacturer: Autel
  • Categories: TPMS
Operating SystemAndroid™ 4.4.2, KitKat
ProcessorCortex-A9 processor (1.6 GHz)
Memory1GB RAM DDR3 & 64GB ROM
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0; USB 2.0; Wi-Fi; HDMI Type A; Micro SD card slot (supports up to 32GB);
SensorsLight sensor for brightness auto adjust
Audio input/outputInput: N/A; Output: Beep;
Power and Battery3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply;
Tested Battery LifeAround 7 hours of continuous use
Battery Charging Input5 V/1.5 A
Power Consumption600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.-10 to 60°C(14 to 140°F)
Storage Temp.-20 to 70°C (-4 to 158°F)
Operating Humidity5% - 95% non-condensing
Dimensions (W x H x D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight885 g (2.31 lb.)

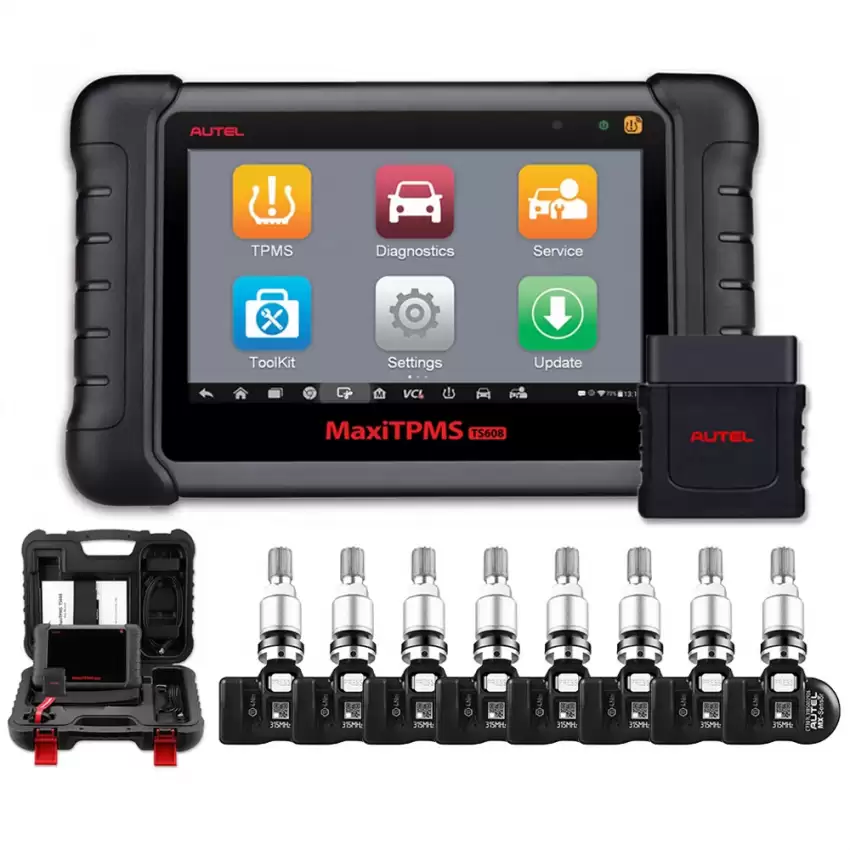

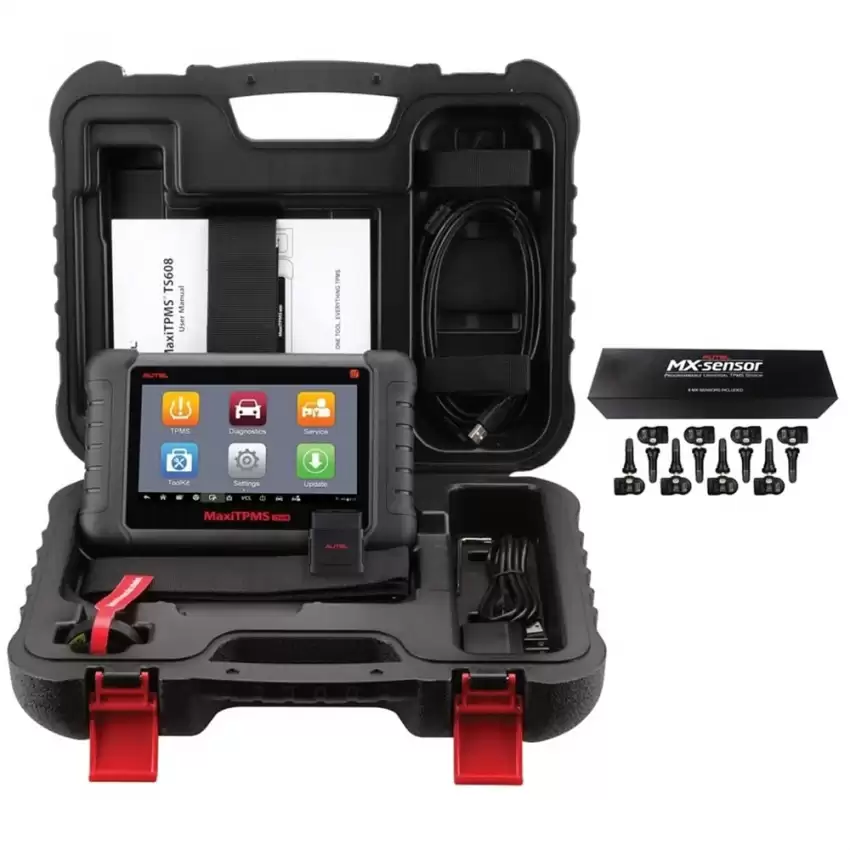

The TS608K-1 Kit includes the TS608 TPMS tool and one bulk box of eight programmable Autel Sensors

  • Complete full service projects faster with TPMS and all systems diagnostics in one mobile tool.
  • OBDII connection to read & clear codes
  • Detect & display TPMS system faults
  • Activate & relearn all known sensors
  • Read sensor ID info & battery power level
  • Sensor position relearn assist procedure
  • Status screen
  • Single screen to easily view feedback of all sensors and pinpoint TPMS system faults
  • Toolkit Features
  • Check MX sensor ID
  • Unlock REDI 7002A
  • Check FOB signal
  • Wake-up sensor
  • Three tools in one tablet:
  • Complete TPMS diagnostics
  • Advanced service features
  • All systems diagnostics


  • Copy by activation
  • Copy by manual Input
  • Auto create 1-16 Sensors
  • Copy by OBD
  • Read & clear codes (Generic & Manufacturer, Pending and Stored)
  • Control & test ABS, SRS, EPB, & DPF Groups
  • Diesel particulate Filter Service
  • Set Inspection 1 & 2 Service Intervals
  • View and Graph Live Freeze Frame Data
  • Perform 02 Monitor, On-Board Monitor, 1/M Readiness and Component Testing
  • Reset Steering Angle Sensors (SAS)
  • Read & Clear Codes For All Module Systems Powertrain, Body, Chassis, Communication
  • Supports All 10 OBDII Test Modes - Freeze Frame, Enhanced Mode 6, ltM Readiness, Vehicle Information & Component Tests
  • Open & Close EPB Pads For Service
  • Diagnose EPB/SBC Caliper Functionality
  • Oil & Service Resets
  • Battery Registration
