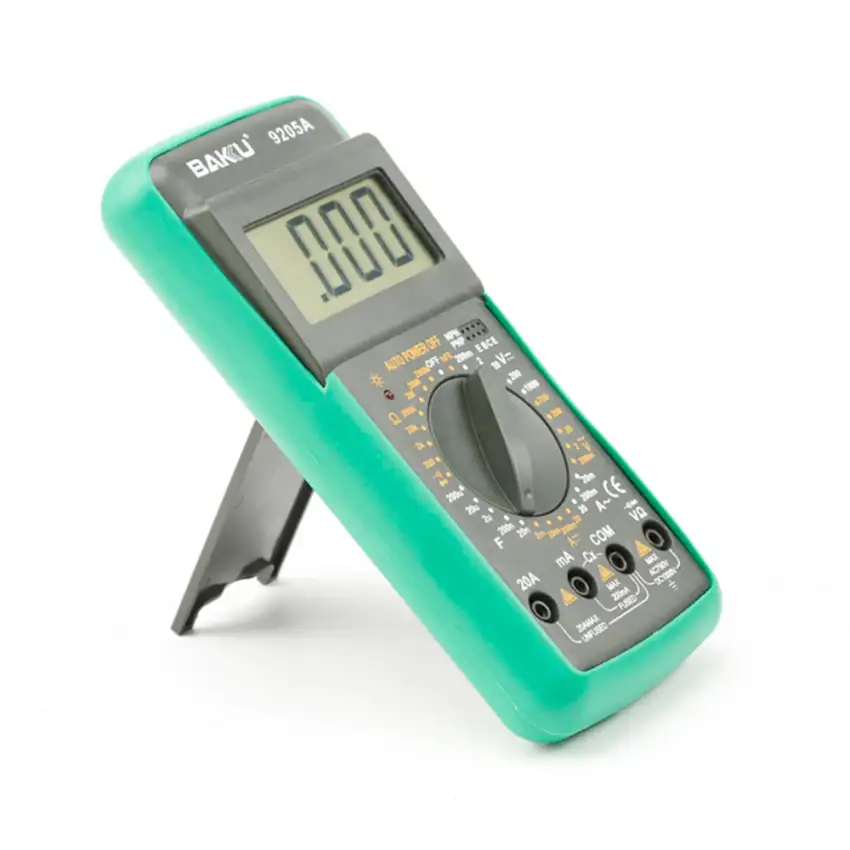

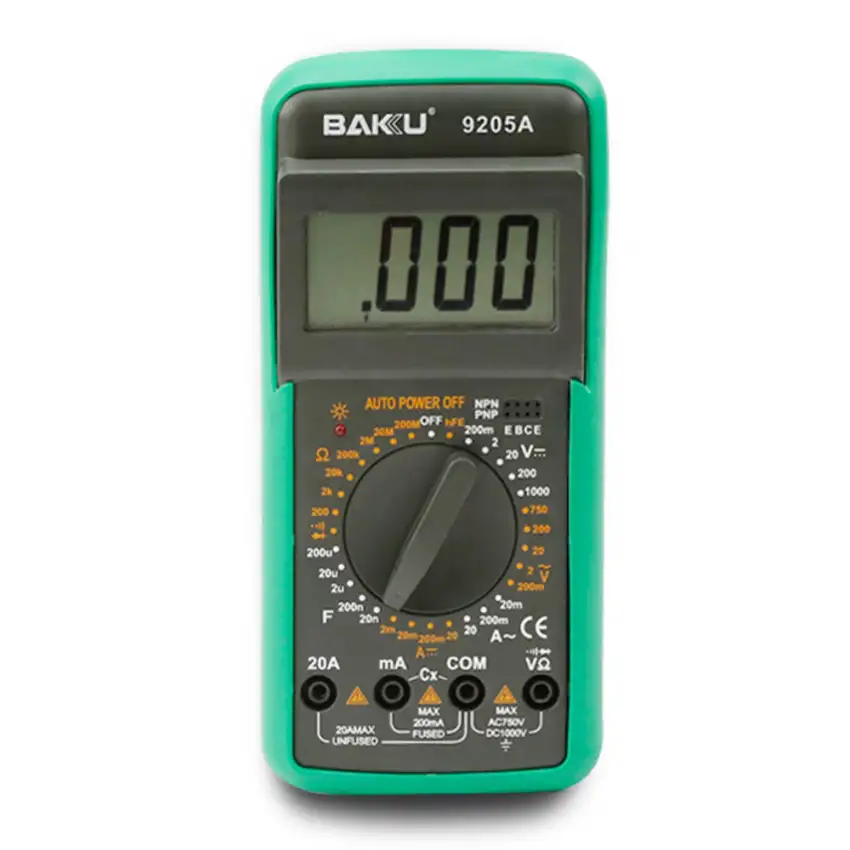

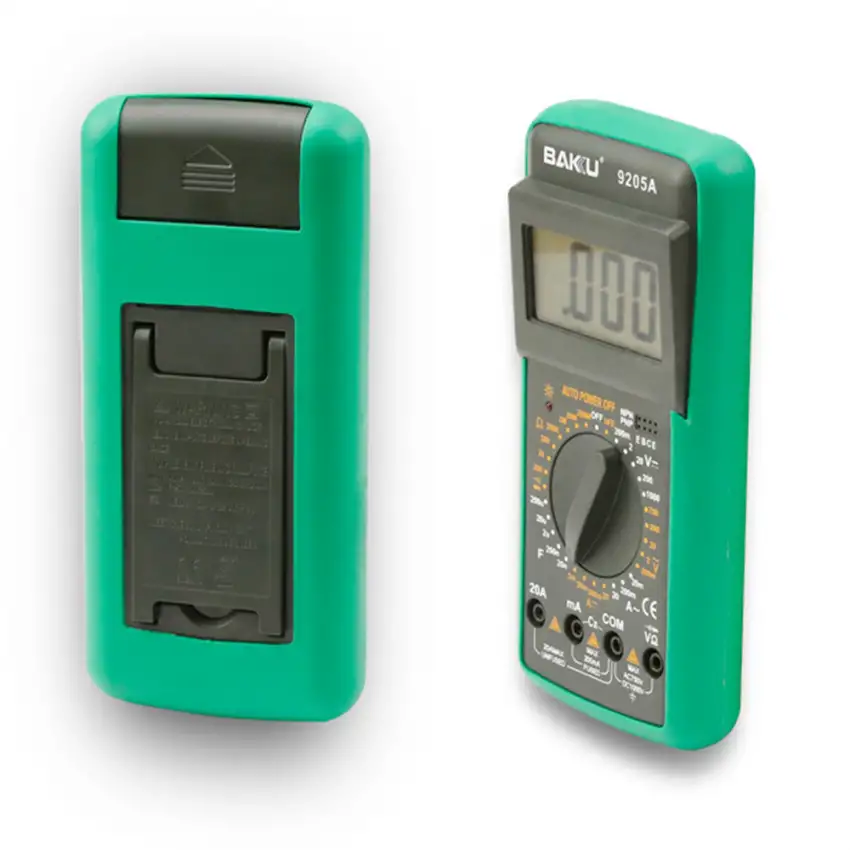

Baku BK-9205A Universal Multi-functional Digital LCD Multimeter
| Tools | Testers |
| Condition | New |
.png){kind=logo}
Baku / Tools
- Features data retention and automatic shutdown functions for enhanced convenience.
- Measures AC/DC voltage, DC current, resistance, and capacitance with high precision.
- Equipped with a large LCD screen for clear and accurate readings.
- Suitable for engineering design, laboratory work, production experiments, workshops, fieldwork, and industrial maintenance.
- Application scope includes electrical appliance repair, household appliance repair, home wiring projects, and hobby projects.
Package Includes:
1x Digital Multimeter
1x Manual
1x 9V 6F22 Battery
2x Test Leads (Red & Black)
| Function | Measuring Range | Precision | |||
| DC Voltage | 200mV/20V/200V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) | ±(0.1%+3) |
| 1000V | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) | ±(1.5%+3) | |
| AC Voltage | 200mV | ±(1.2%+3) | ±(0.8%+3) | ||
| 2V/20V/200V | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) | ±(0.6%+10) | |
| 750V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ±(1.8%+15) | |
| DC Current | 20µA | ±(2.0%+5) | |||
| 200µA | ±(0.8%+3) | ||||
| 2mV/20mV/200mV | ±(1.5%+1) | ±(1.5%+1) | ±(1.5%+1 | ±(0.8%+3) | |
| 10A | ±(2.0%+5) | ±(2.0%+5) | ±(2.0%+5) | ±(2.0%+10) | |
| AC Currect | 20µA/200µA | ±(2.0%+5) | |||
| 2mV/20mV/200mV | ±(1.8%+5) | ±(1.8%+5) | ±(1.8%+5) | ±(0.8%+10) | |
| 10A | ±(3.0%+5) | ±(0.8%+3) | ±(0.8%+3) | ±(2.0%+10) | |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) | ±(0.5%+3) |
| 20MΩ | ±(1.0%+5) | ±(1.0%+5) | ±(1.0%+5) | ±(0.5%+1) | |
| 200MΩ | ±(6.0%+1) | ±(6.0%+1) | ±(6.0%+1) | ±(5.0%+10) | |
| Capacitance | 2nF/20nF/200nF/2µF | ±(0.4%+3) | ±(0.4%+3) | ||
| 20nF/200nF/2µF/20µF | ±(0.4%+20) | ||||
| 100µF | ±(6.0%+10) | ±(6.0%+10) | ±(6.0%+10) | ||
