Godiag GT100 OBD II Protocol Detector ECU Connector

$83.00Was $89.00 (Save 6.5%)

Diagnostic portOBDII
Working voltageDC 9V-24V
Work and power0.5-0.6W
Adapter powerInput AC100v-240v, Output DC12V 1A
Operating temperature range-20 to 70 °C ( -4 to 158 °F )
Storage temperature range-40 to 85 °C ( -40 to 185 °F )
DimensionL: 9.05in, W:7.08in, H:2.75in
ConditionNew

Highlights for GT100 ECU connector:

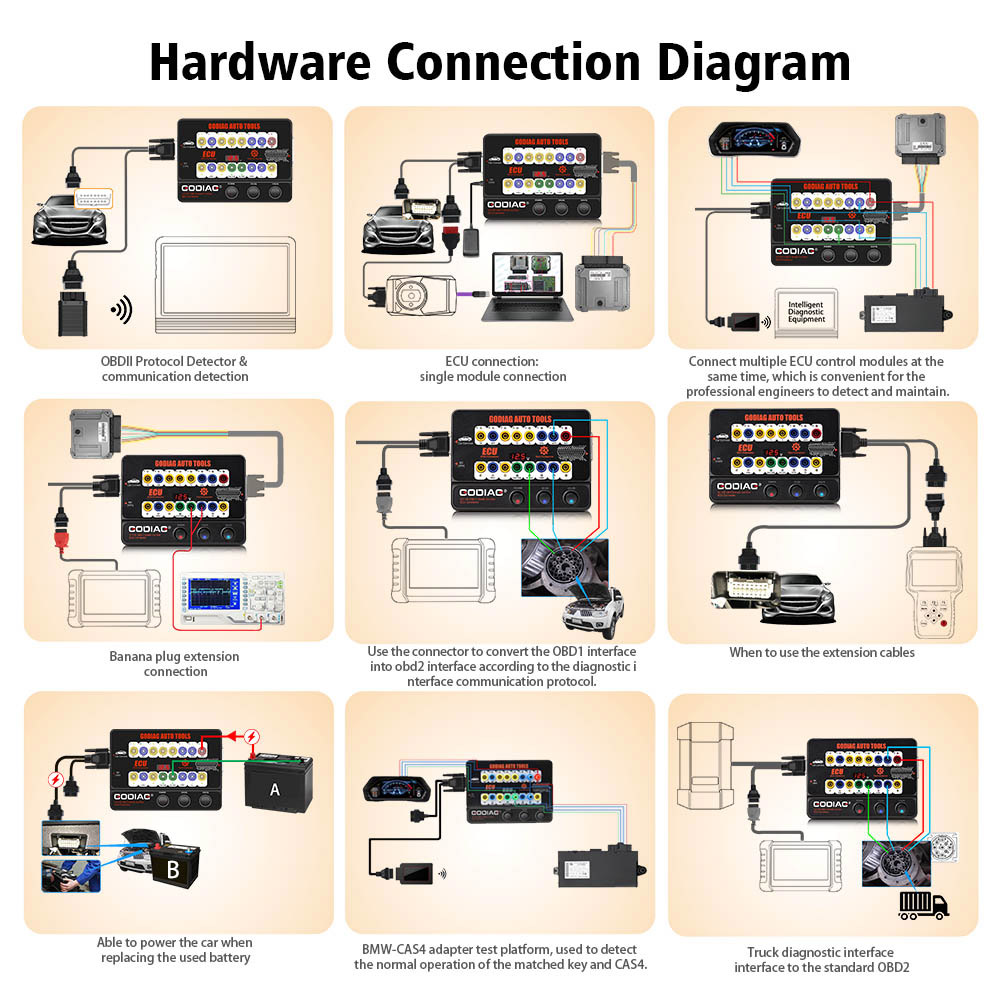

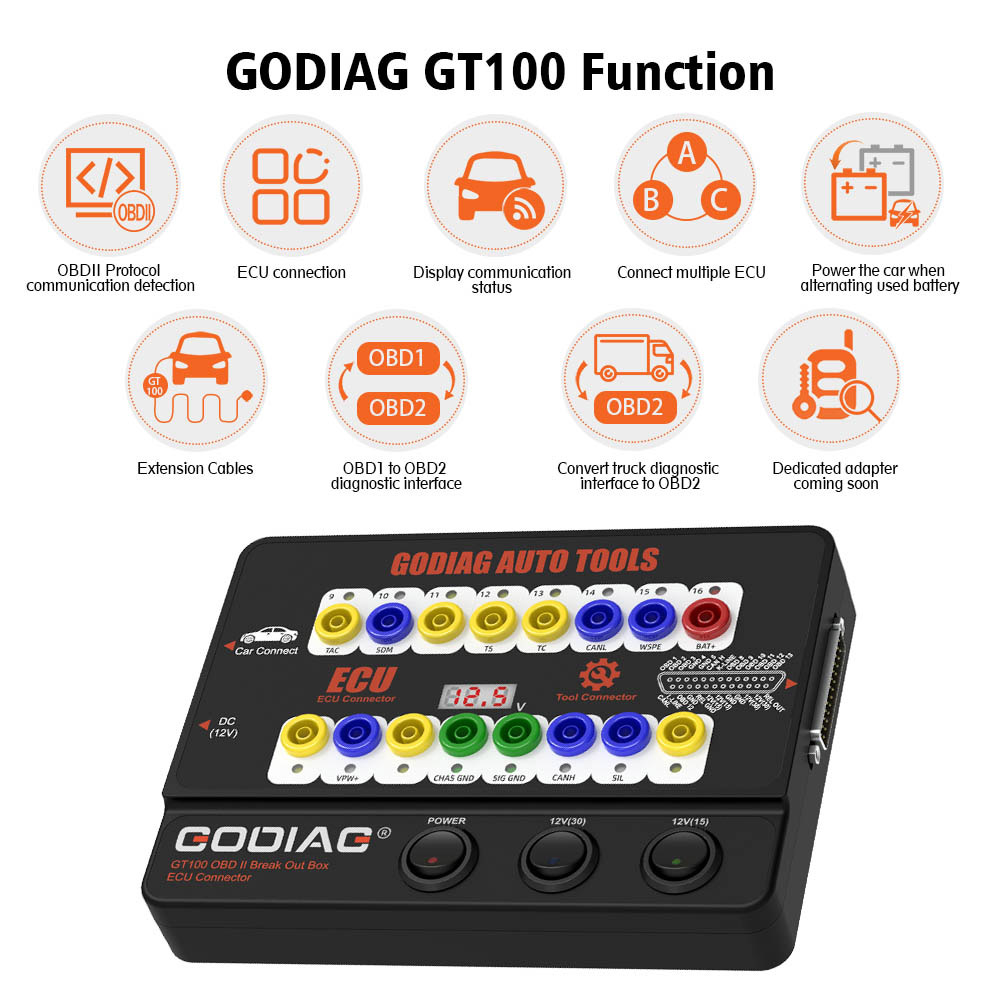

  1. It is the latest testing platform for OBDII protocol communication detection and ECU maintenance/diagnosis /programming /coding.
  2. It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion.
  3. Able to connect the single modules or multiple modules of the vehicle.
  4. It can be connected with any diagnostic tool to tell whether the car communication is good or not.
  5. Can work with most device to do test, will make your operation much easier , such as xhorse vvdi2, Autel Scanner, Launch Scanner, Vident Scanner, and so on.
  6. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost,automatically locked,the key remote control fails and the fault light turns on.
  7. Ship from US and EU and UK warehouse, Fast Delivery with Tax Free.
  8. Guarantee: One year warranty.
  9. Can support all key lost, activate the meter and wake up the anti-theft module.
    (1) for Porsche, VW 4th generation smart key &5th generation card key (models such as: new A6L Touareg A4 Q5 A7), use GT100 short the banana PIN 16----PIN 1, After the instrument is on, the key matching tool connects to GT100+ female Head for data collection. Some vehicle instruments are not bright, but data can also be collected, for example: A6L Q7.
    (2) Can replace the engine ECU for Toyota; and Support onnect short-circuit PIN13-PIN4 with Key Programmer when do all key lost for Toyota.
    (3) Mitsubishi all key lost matching or all key lost for remote control key, need to set OBDII short-circuit PIN1-PIN4.
  10. With BMW CAS4 & CAS4+ Test Platform and BMW FEM/BDC test platform,GT100 can work with Xhorse VVDI2/Lonsdor K518/CGDI/Autel im608 to Support Off-site Key Programming/All Keys Lost/ Add New Key.

GODIAG GT100 Functions in Detail

- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car
- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

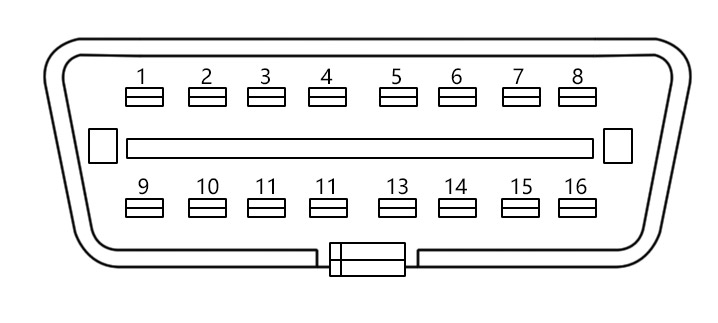

Indicator Meaning:

1. Manufacturer custom 9. Manufacturer custom
2. SJE1850 wire SJE1850 wire《bus->
3. Manufacturer custom 11. Manufacturer custom
4. Power grounding 12. Manufacturer custom
5. Signal grounding 13. Manufacturer custom
6. SAEJ2284《CAN》high 14. SAEJ2284《CAN》low
7. ISO9141-2&iso, DIS4230-4K wire 15. ISO9141-2 & ISO/DIS 4230-4L wire
8. Manufacturer custom 16. Car battery positive





Godiag 100 Package includes:
1pc x Host

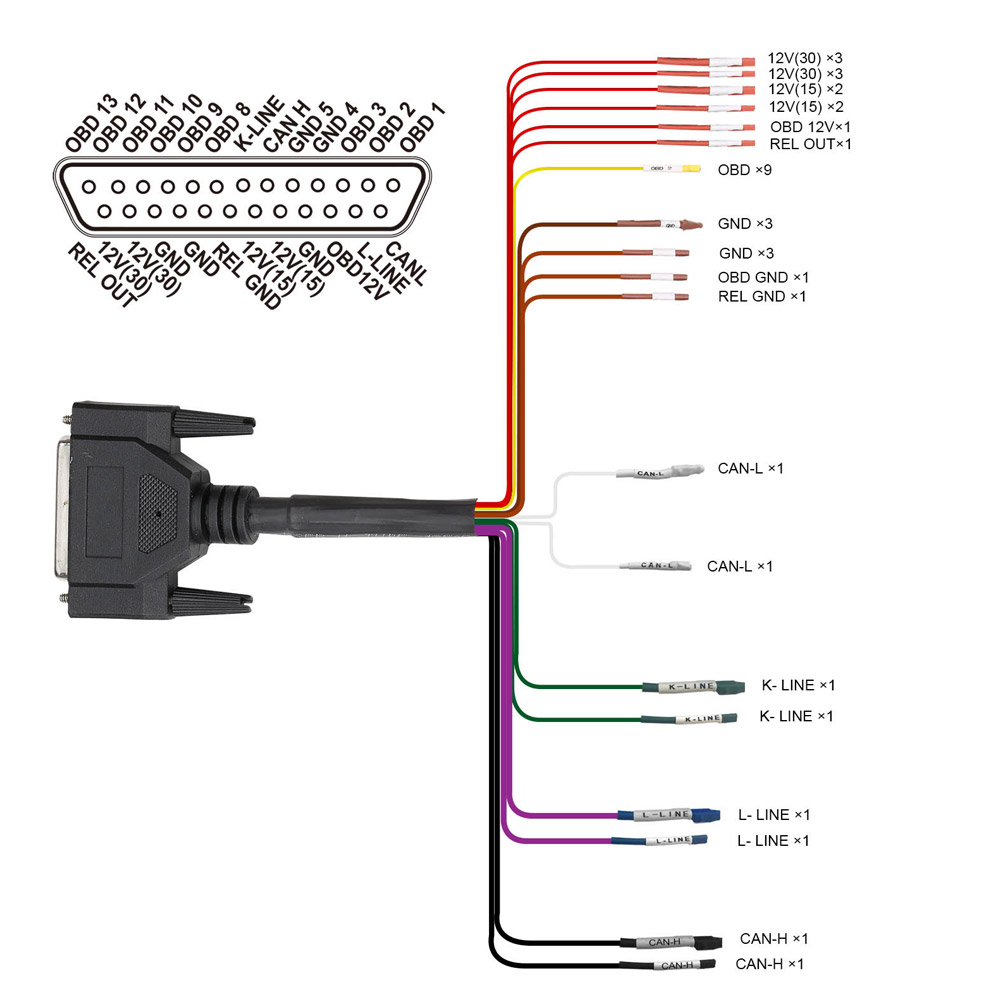

1pc xOBD 2-in-1 extension cable
1pc xColored jumper cable
1pc xPower supply 12V
1pc xResistance 120 ohm
6pcs xBanana plug
24pcs xWire accessories, Dupont 2.54mm connector female pin
