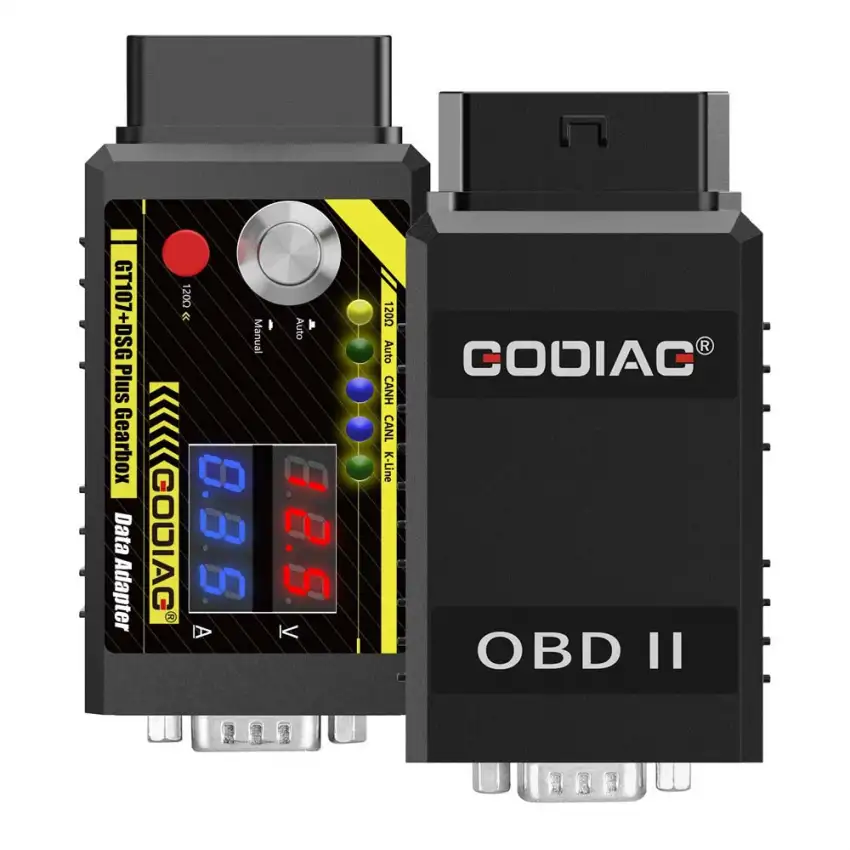

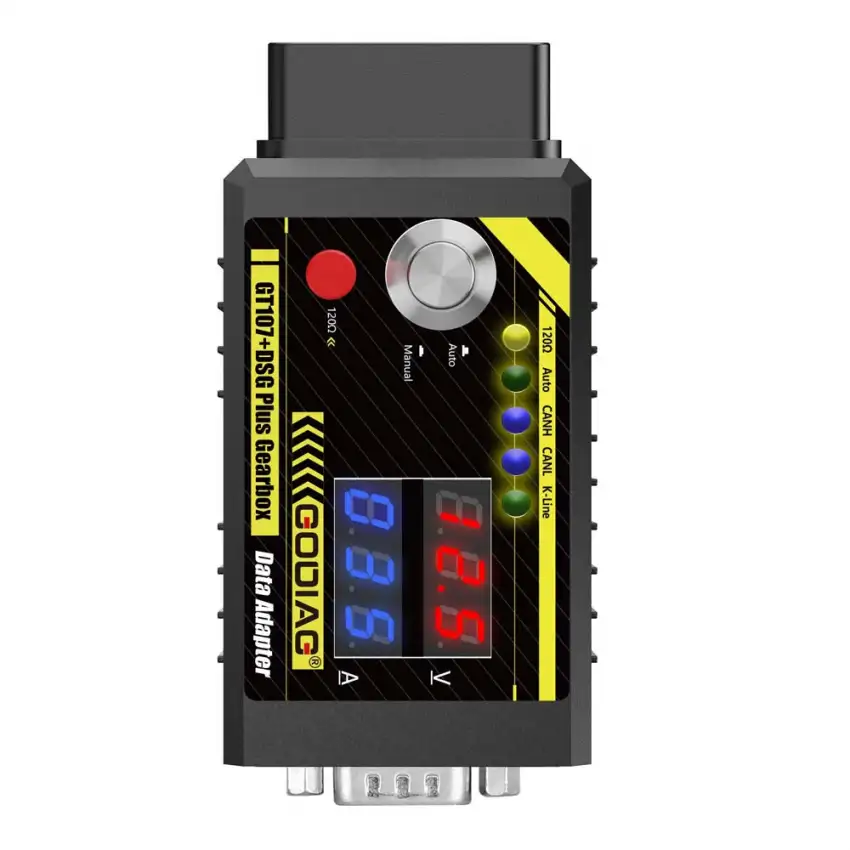

GODIAG GT107+ Plus Gearbox Cables 7-in-1 Set for V30/ DQ200/ DL501/ VL300/ VL381/ DQ500/ DQ250

GODIAG GT107+ is a DSG gearbox connection adapter that allows maintenance engineers to clone, diagnose, and repair DSG gearbox ECUs. It also supports reading, writing, and adjusting ECU data using tools such as PCMFlash, PCMTuner, Kessv2, Autel, and more.

The package includes a 7-in-1 gearbox cable set compatible with V30, DQ200, DL501, VL300, VL381, DQ500, and DQ250 gearboxes.

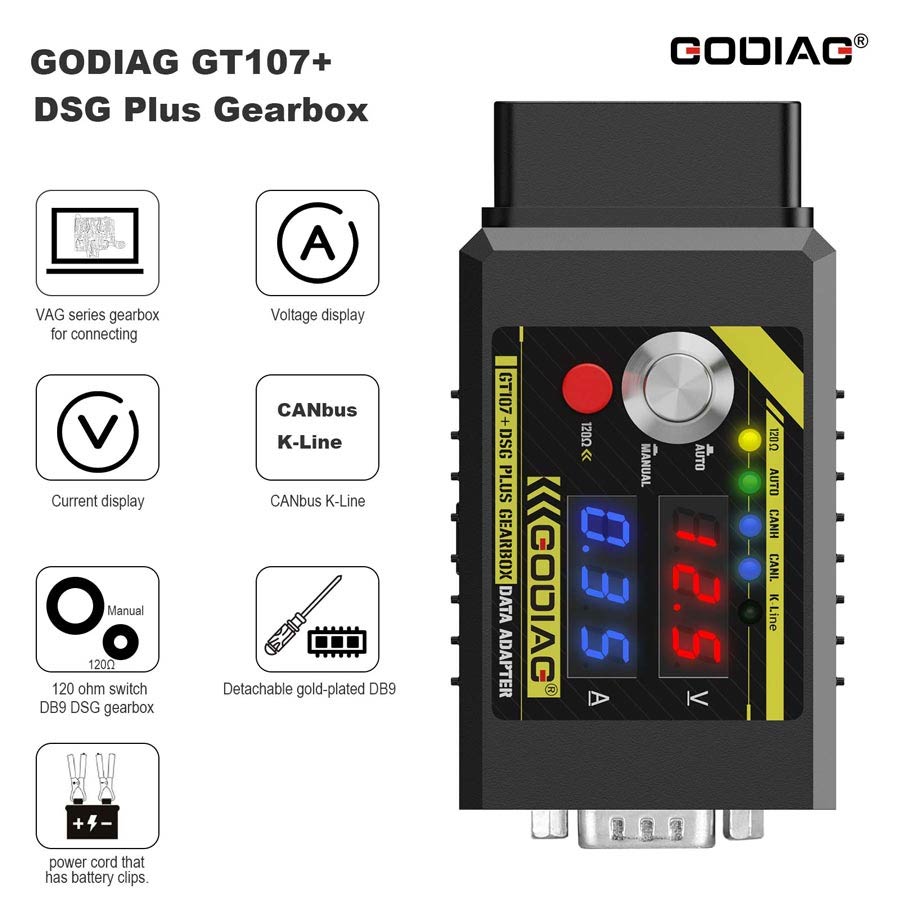

Product Features

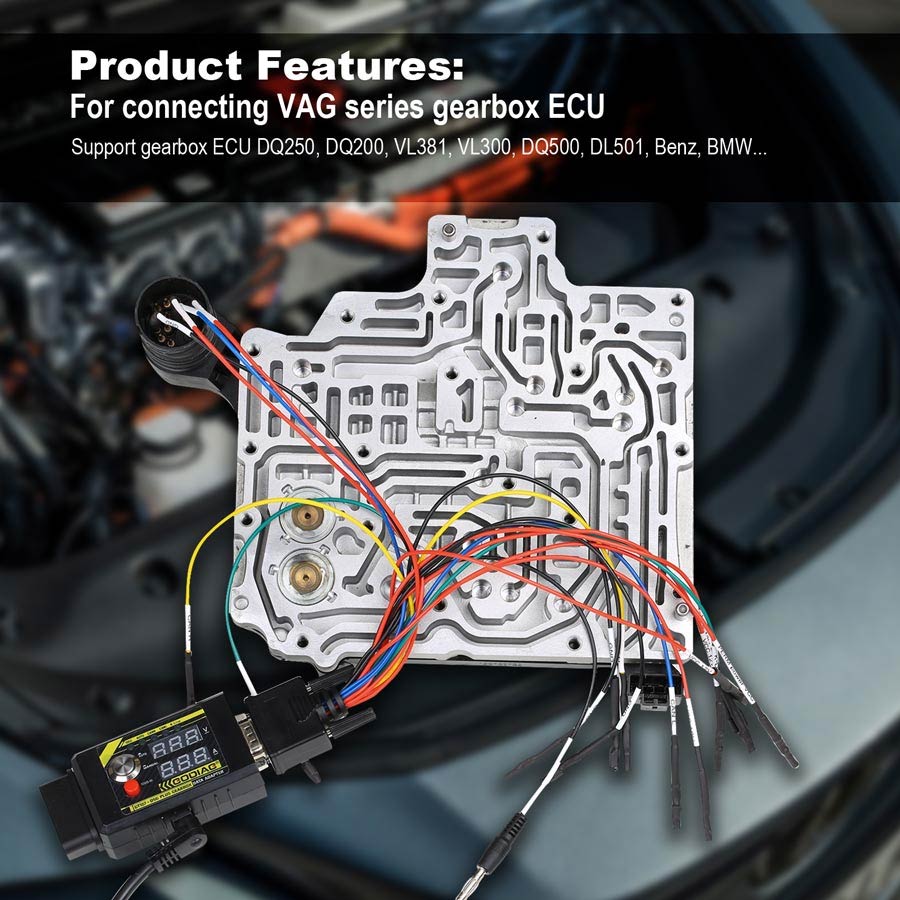

• Wide Compatibility – Designed for connecting VAG-series gearbox ECUs, supporting models such as DQ250, DQ200, VL381, VL300, DQ500, DL501, as well as certain Benz and BMW gearboxes.
• Voltage Display – Monitors the current operating voltage of the gearbox ECU. A significant voltage drop can indicate issues such as short circuits or incorrect wiring.
• Current Display – Shows the ECU’s working current, helping to assess the operational condition of the gearbox ECU.
• Communication Indicator – Displays the current CANbus and K-Line communication status.
• Flexible Switching Options – Includes manual and automatic power switches, a 120-ohm termination switch, a boot mode cable (DB9 DSG universal conversion jumper), and a probe.
• DIY-Friendly Interface – Features a detachable gold-plated DB9 connection, allowing users to create custom professional connection ports for development purposes.
• Convenient Power Supply – Comes with a power cable and battery clips, enabling direct power sourcing from a vehicle’s battery.

Package Includes:

• 1pc x Godiag GT107+ ECU Prog AD

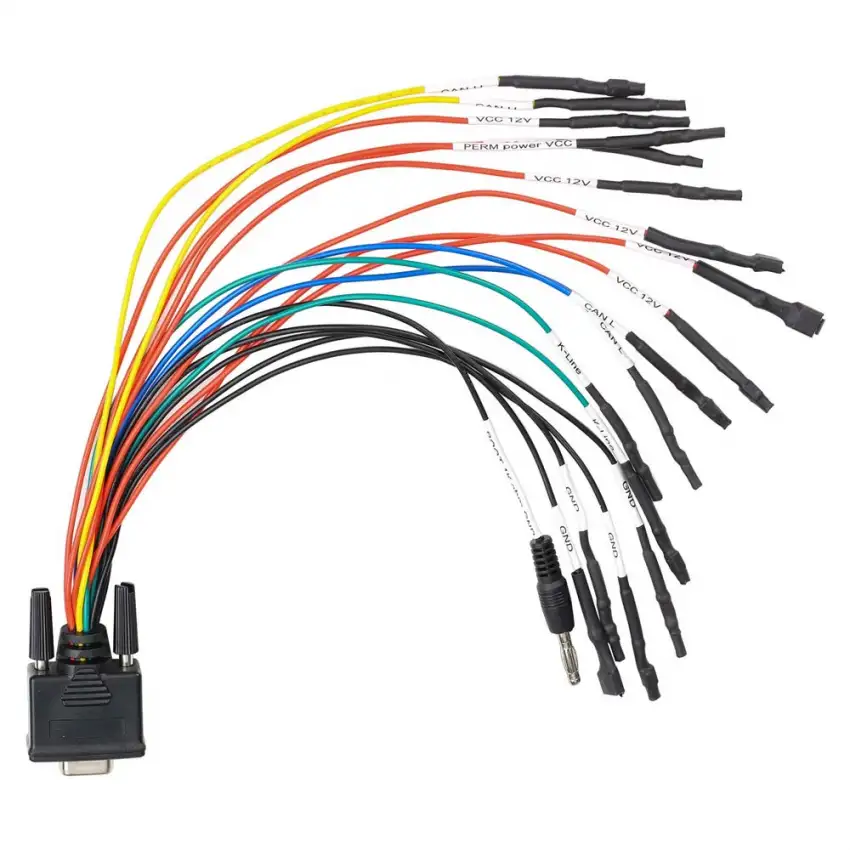

• 1pc x DB9 DSG Gearbox Universal Conversion Jumper
• 1pc x Power Cord with Battery Clips
• 1pc x Probe
• 1pc x DC power adapter(5.5*2.1mm female to 5.5*2.5mm male)
• 1pc x Manual

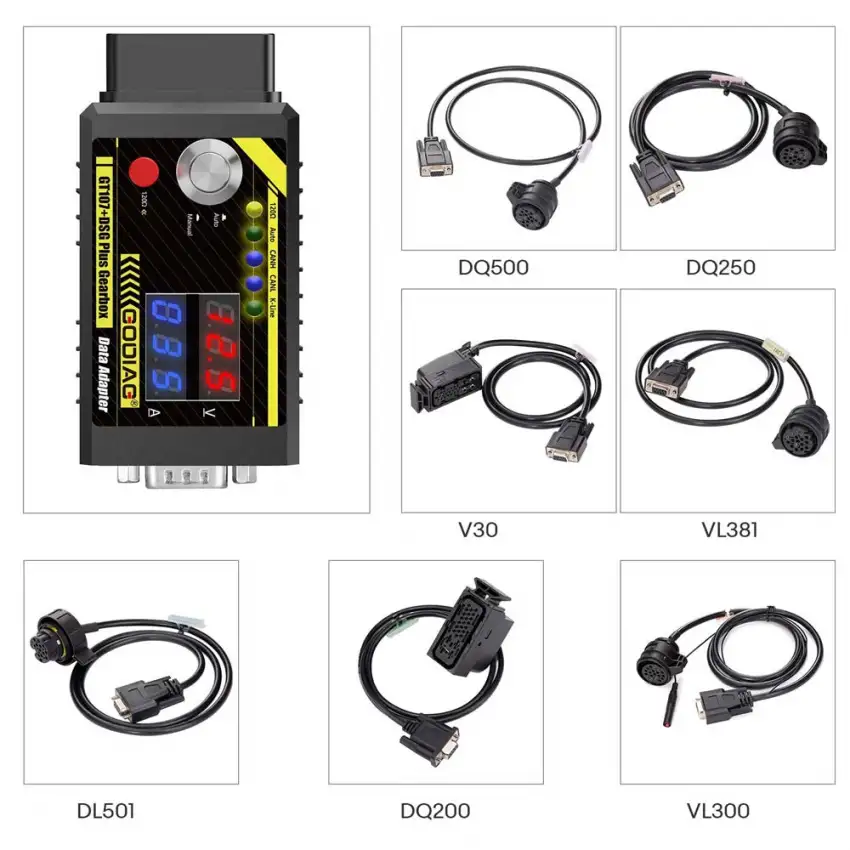

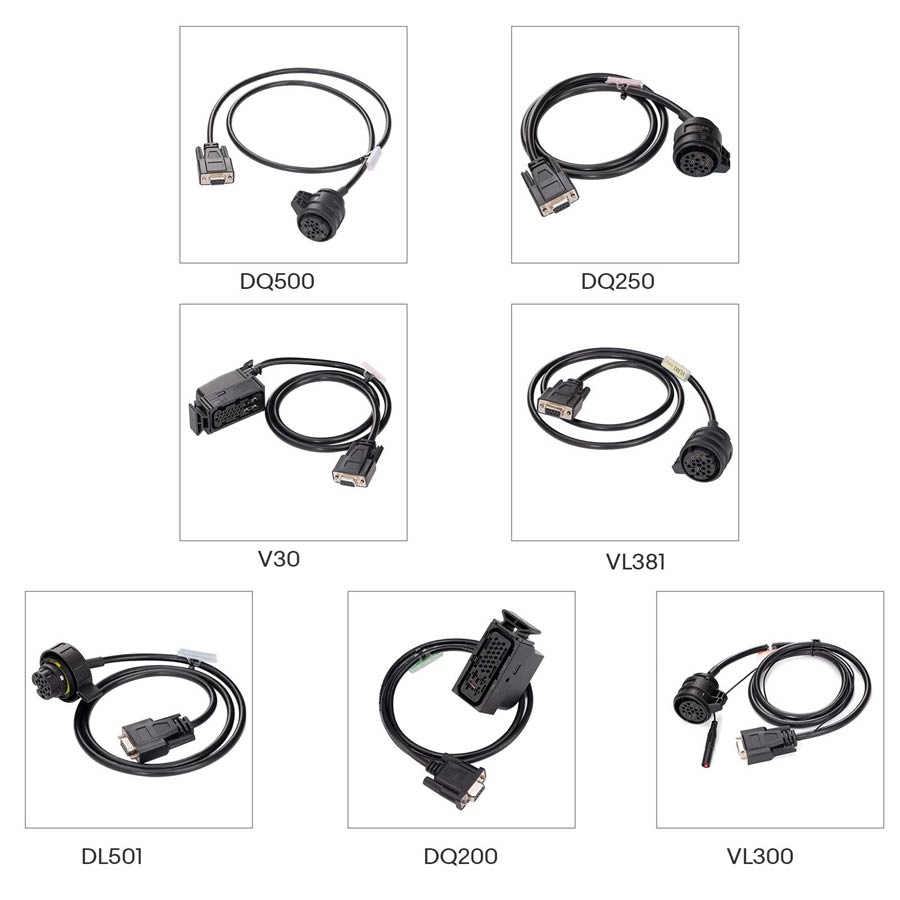

• 1pc x Gearbox Cable 7-in-1 Set
