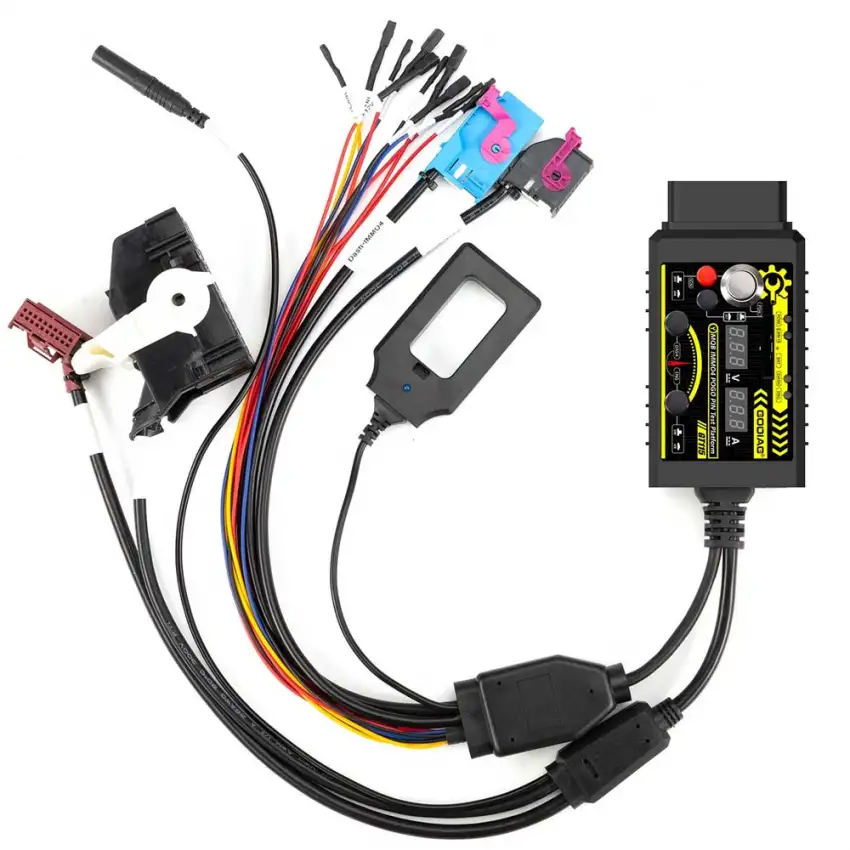

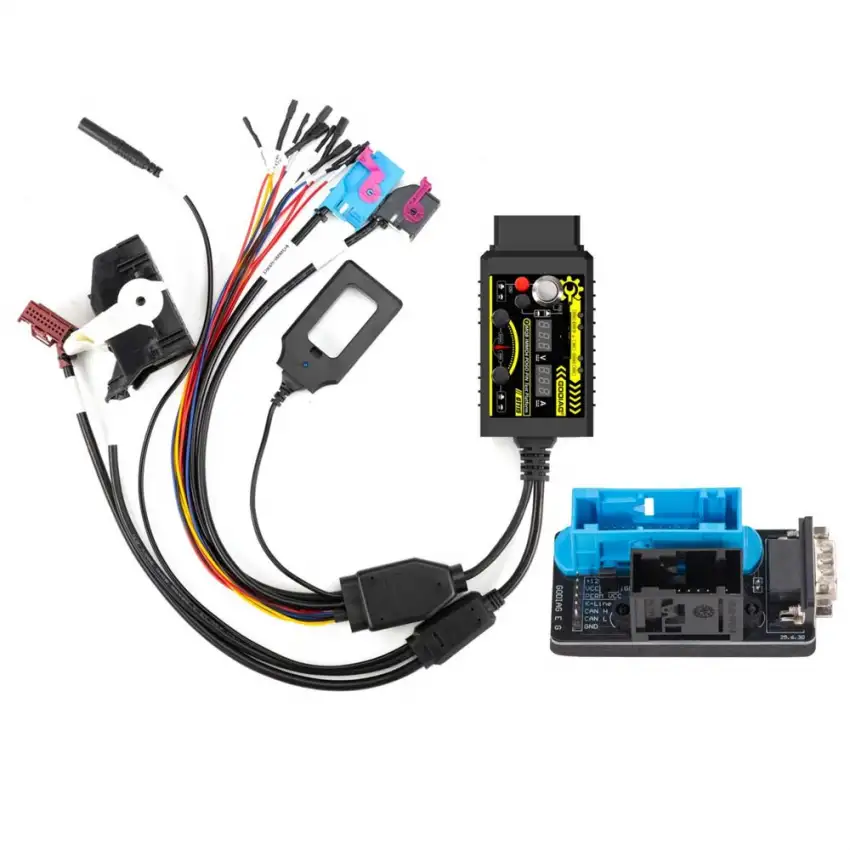

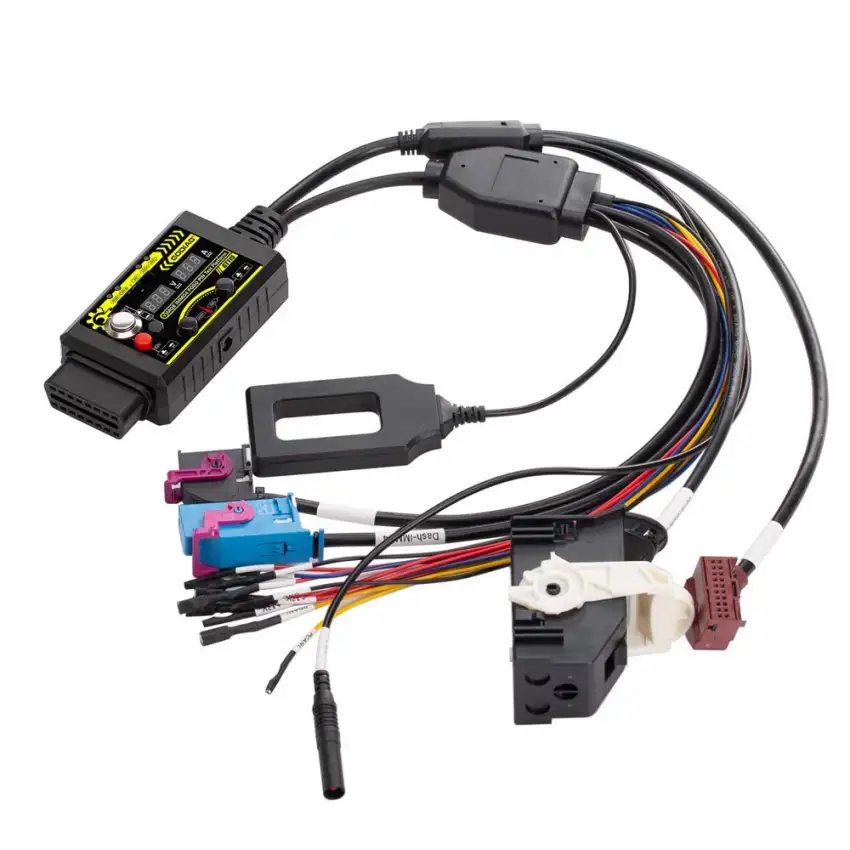

GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter

GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter-0 thumb
GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector thumb
High quality GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter thumb
GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter - AD-GOD-GT115 p-2 thumb
GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter - AD-GOD-GT115 p-3 thumb
GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter - AD-GOD-GT115 p-4 thumb
AD-GOD-GT115

GODIAG GT115 MQB IMMO4 POGO PIN Test Platform with GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter

$90.00

  • New Arrival
ConditionNew
Report incorrect product information

GODIAG GT115 – Functions

  1. Synchronous Key & IMMO Detection – Simultaneously detect the vehicle key and the IMMO (Immobilizer) module.
  2. Standalone Diagnostics – Perform independent diagnostics for the engine and power expansion modules.
  3. Gateway Communication Testing – Diagnose communication and run programming tests for engine and power modules via the gateway module.
  4. IMMO 4th Gen POGO PIN Support – Read and write data, and perform key synchronization detection.
  5. BCM Module Testing – Connect the BCM module to the gateway for communication diagnosis and programming (press the corresponding switch when required).
  6. Gateway Module Detection – Quickly verify the status and functionality of the gateway module.
  7. Voltage Display – Monitor the voltage of the connected power supply in real time.
  8. Current Display – Display the working current of the connected module.
  9. 2032 Battery Voltage Testing – Measure and ensure proper voltage for the 2032 battery.
  10. Dashboard Data Access – Use the POGO PIN to read and write dashboard data with high precision.

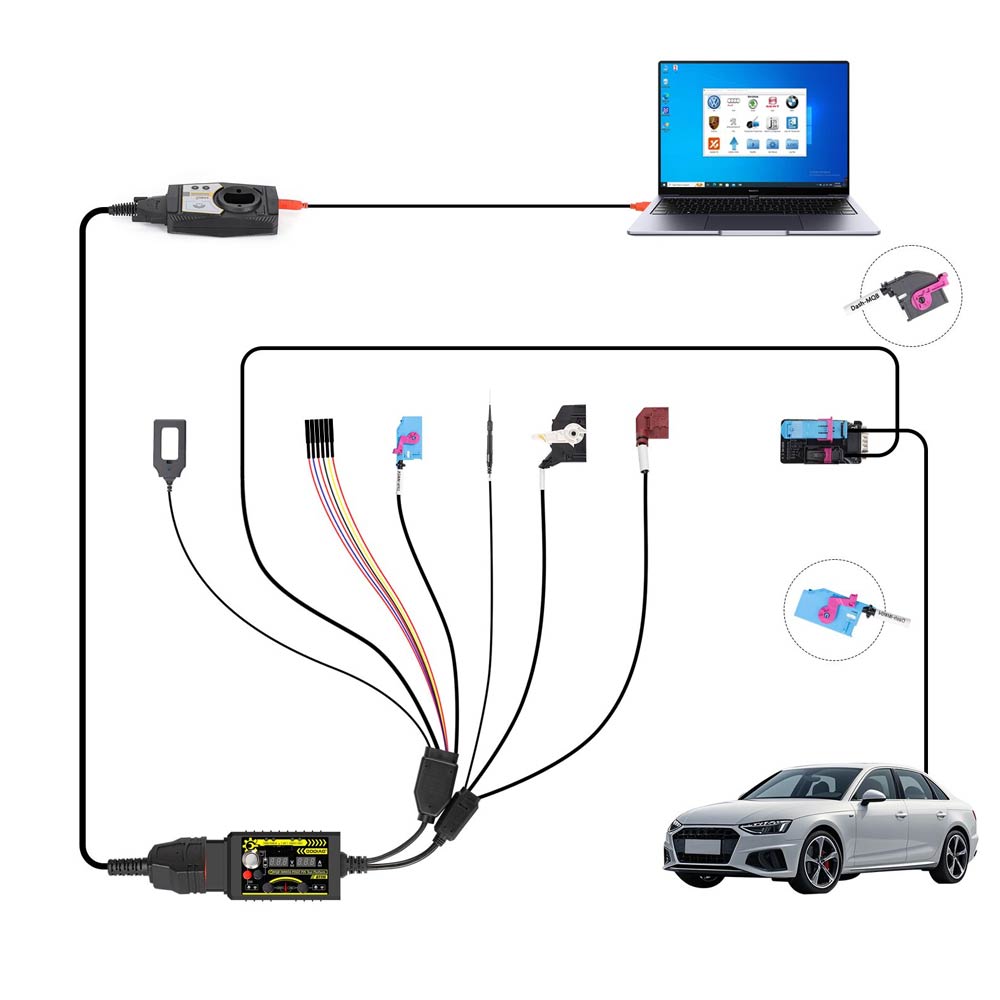

Free Download: GODIAG GT115 Connection Diagram (35MB)

Product Features

  • Synchronous Detection – Instantly detect both the key and vehicle IMMO module status.
  • Independent Diagnostics – Perform tests without needing full system connections.
  • Gateway Communication – Diagnose and program engine/power modules via the gateway.
  • POGO PIN Technology – Ensure stable, precise data reading/writing to the dashboard.
  • BCM Testing – Diagnose and program BCM modules via gateway connection.
  • Real-Time Monitoring – Track voltage and current for accurate diagnostics.
  • Battery Voltage Detection – Check the status of the 2032 battery for optimal operation.

How to Use the POGO PIN

  1. Connect the power supply (ensure the power switch is OFF).
  2. Press the IGN ignition power (ensure the IGN switch is ON).
  3. Connect the instrument plug.
  4. Locate the POGO PIN contact point for the corresponding instrument and connect the probe.
  5. Turn on the power switch for 3–5 seconds. If the ABS light flashes, you have successfully entered POGO PIN read/write mode.

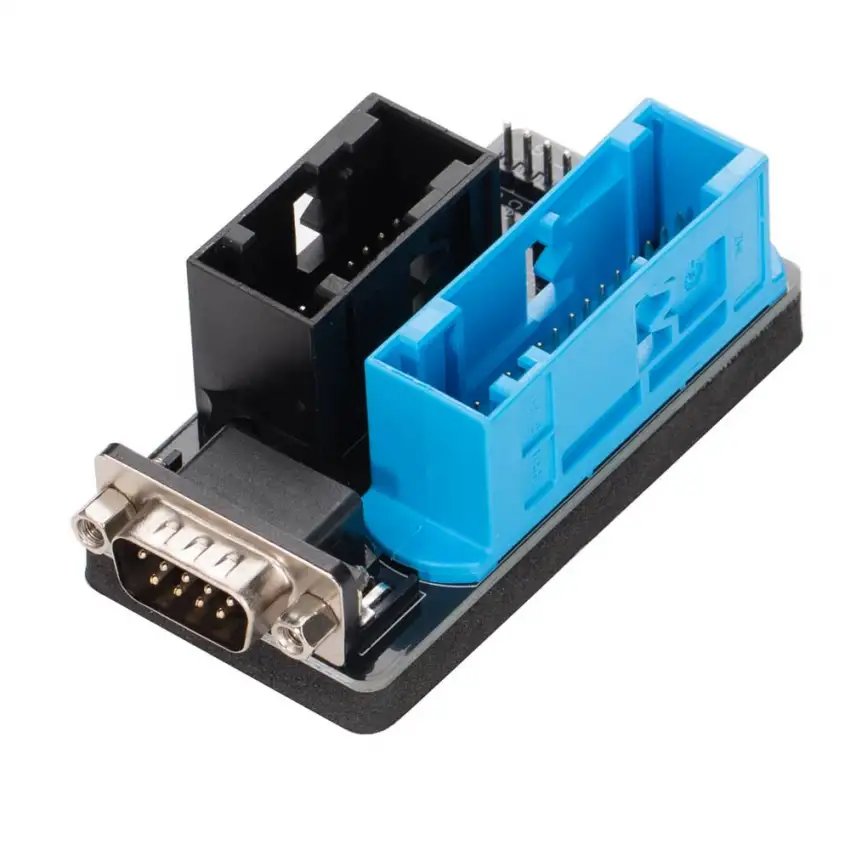

GODIAG MQB Data Collector – ELV/TCM DSG Gearbox Adapter

Functions:

When paired with the GODIAG GT115 MQB IMMO4 POGO PIN Test Platform, the vehicle instrument plug can be connected to collect ELV data.

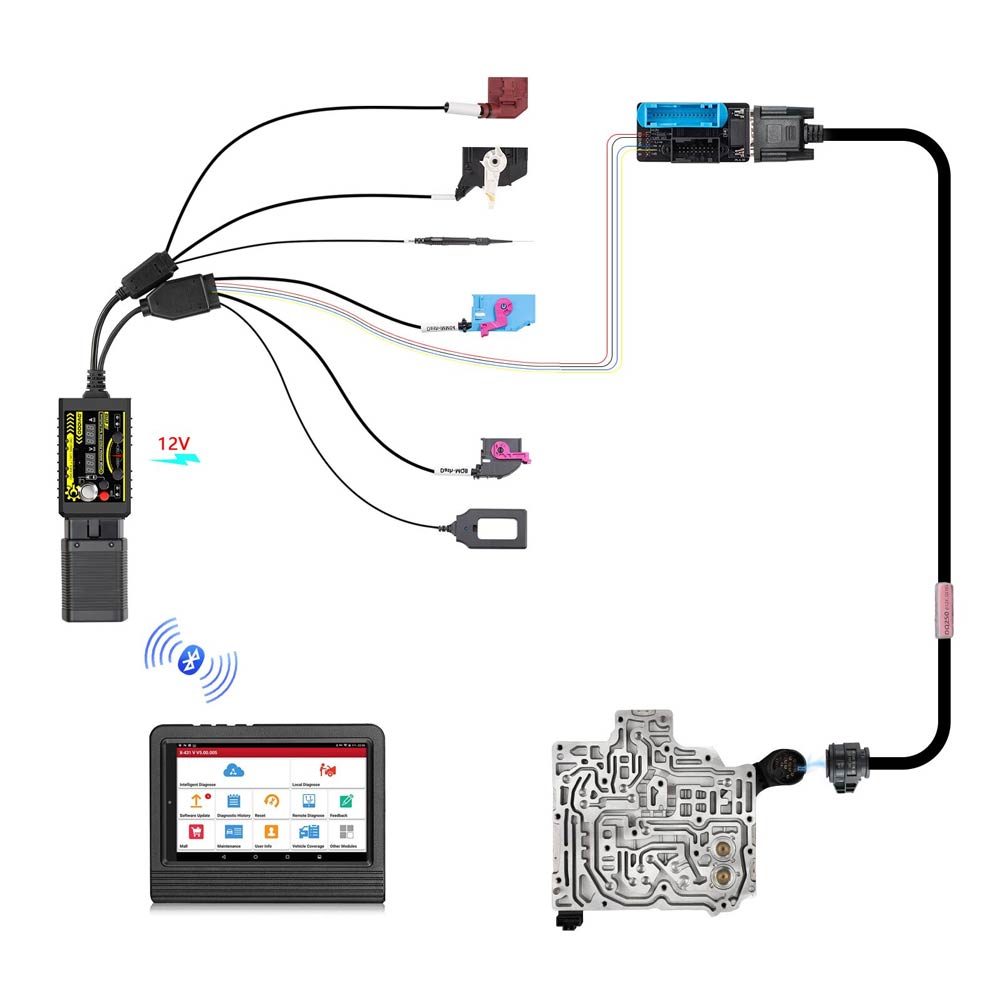

When used with the GODIAG GT107+ and Gearbox Cables 7-in-1 Set, you can diagnose, read, and write gearbox data.
When paired with the GODIAG Full Protocol OBD2 Jumper Adapter (or other OBD2 CANbus cables) and the GT107+, you can perform full diagnostics and data operations directly in the office.

Package Includes

  • 1 × GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter
  • 1 × GODIAG GT115 MQB IMMO4 POGO PIN Test Platform
