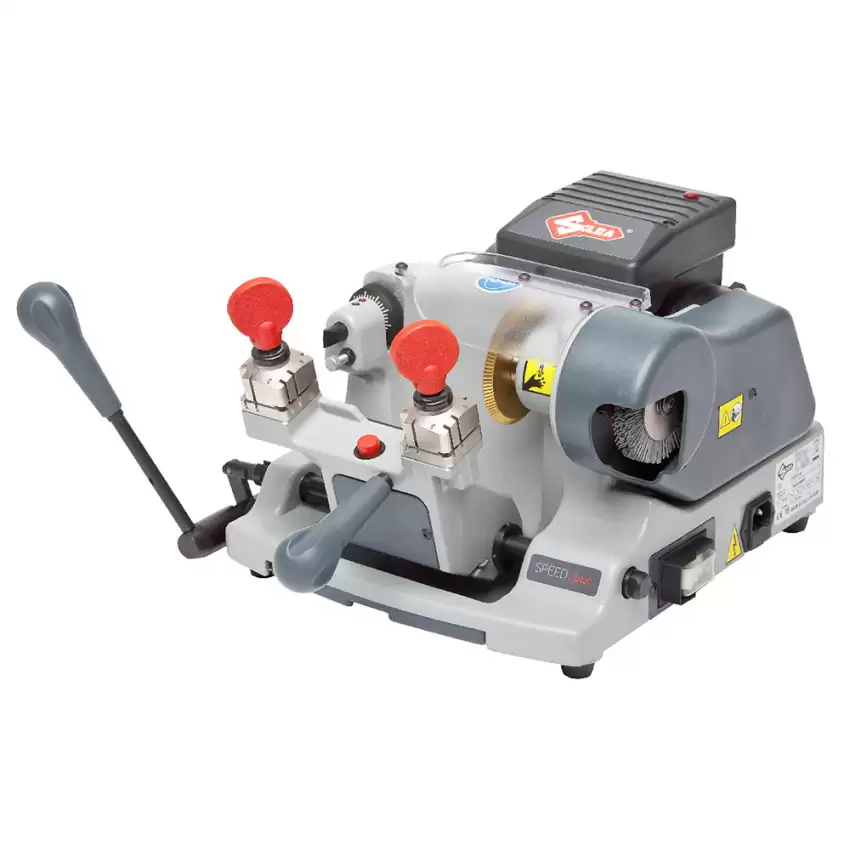

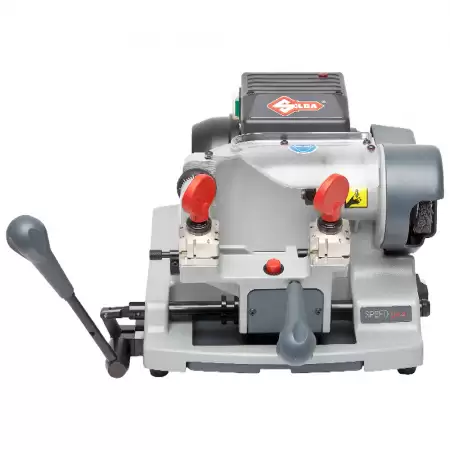

ILCO Silca Speed 044 (120V) Semi Automatic Key Machine Duplicator

The Speed 044 is designed for duplicating edge cut automotive, residential and commercial keys. The semi-automatic design allows the operator to duplicate keys with speed and accuracy.

After loading the keys, the spring-loaded carriage can be activated by pressing a button. The carriage movement during the cutting cycle can then be controlled manually by moving the lever. The Speed 044 Semi-Automatic comes equipped with various features that will be easily appreciated by any user.

• The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
• Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
• Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
• Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
• Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
• TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
• Nylon deburring brush
• Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
• Large transparent cutter safety shield contains chips and provides a storage area for accessories
• Large drawer-type swarf (chip) tray under the carriage for easy access
• Mounting bracket included for securing the machine to counter
• Two year warranty

Speed 044 Semi-Automatic Brochure
