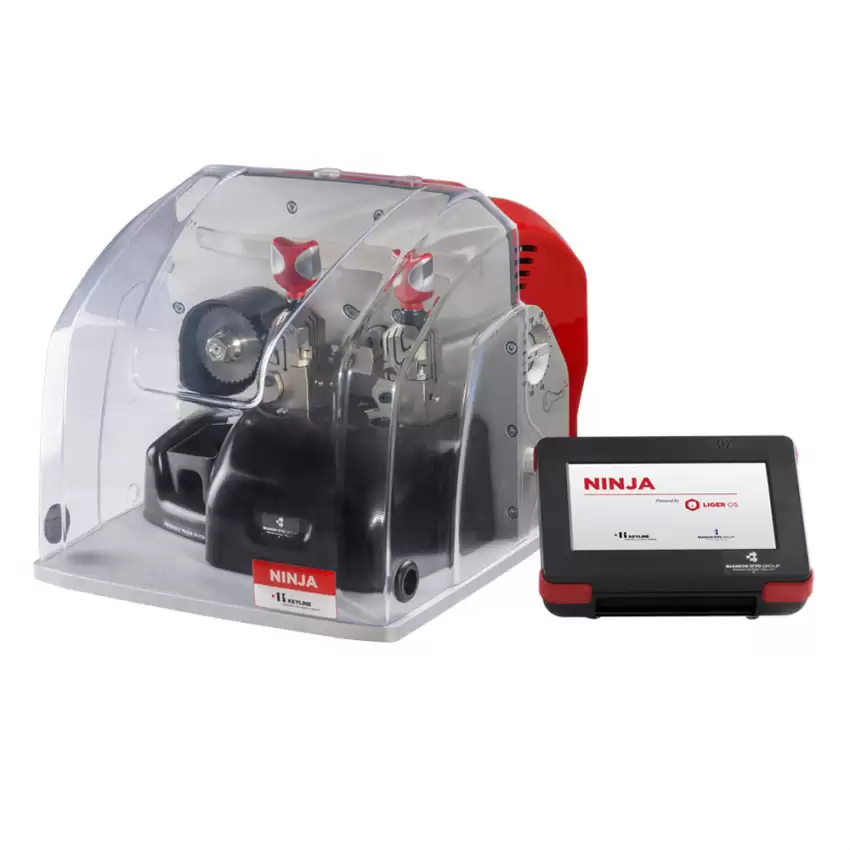

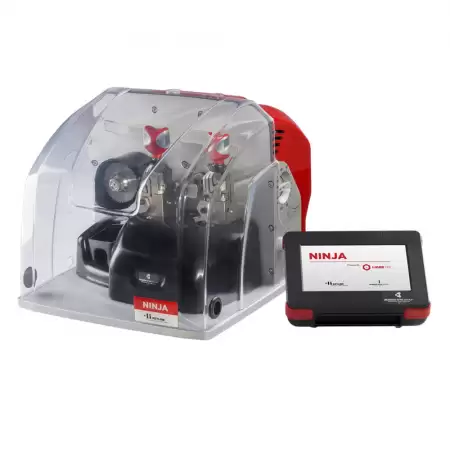

Keyline Ninja Laser Electronic Key Cutting Machine

Keyline Ninja Laser Electronic Key Cutting Machine-0 thumb

Keyline Ninja Laser Electronic Key Cutting Machine


(SPECIAL ORDER) We ship this item directly from the manufacturer’s warehouse.

POWER SUPPLY90-130V 50-60Hz / 220-240V 50-60Hz
ABSORPTION250W (35W in stand-by)
EXTERNAL CONNECTIONS2 USB (2.0) ports, 1 LAN port, 2 RS232 serial ports
DIMENSIONS12” x 15 3-4” x 12”
ELECTRONIC EQUIPMENTMainboard with ARM Cortex A8 CPU, 512MB RAM, static memory on 4GB compact flash, high resolution axis control
CUTTER63mm carbide cutter
MOTORAsynchronous, .18 KW
WEIGHT44 lbs.
CUTTER SPEED1500-3000 rpm (variable speed according to programs)

Ninja Laser combines both the mechanical and electronic precision to guarantee unique key cutting performances and quality through two different technologies: a double speed prismatic cutter and an end milling cutter to cut with maximum efficiency door and automotive edge cut keys, laser keys and Tibbe keys by code, decode or depths.

Ninja Laser is designed to better meet the requirements of the professional thanks to the mixture of these two technologies, which allows the combination of maximum cutting precision together with exceptional performance, at the same time guaranteeing extended use of the parts of the key cutting machine.

One of the highlights of the Ninja Laser is the AC jaw that combines in one unique solution one clamping system to cut most of the laser keys in the market. This innovation expands the wide range of jaws – from the four sided functional one for door and automotive edge cut keys to the Tibbe systems – and makes Ninja Laser the standard key cutting machine to duplicate every model of automotive keys, as well as edge cut door keys, present in the market.

The Liger software developed by Keyline stands out for its capacity to process every cutting system and easily receive software updates. This device made complex operations extremely simple and intuitive due to the modern color interface, which is simple and easy to learn.

Ninja Laser comes with a USB port, LAN ports and serial ports.

What the package includes:

  • AC Clamp
  • WC011A Universal 2.5mm Cutter
  • TL003 Universal Tracer
  • 63mm Carbide Cutter
  • Magnetic Tip Stop
  • 3mm T-Handle Wrench
  • Red Cutter Removal Tool
  • 4 GB Flash Drive
  • 5 Key Blanks
  • Brush

Supported Keys:
