Overview

Condition

New

Lonsdor / Adapters

The Lonsdor KPROG2 Adapter is an essential accessory for the Lonsdor K518 PRO, K518ISE, and K518S key programming devices.
It enables professional locksmiths to read and write EEPROM SOIC chips and MCU chips, supporting a wide range of chip manufacturers.

The KPROG2 adapter is especially powerful for Volvo Smart Key programming (CEM & KVM modules) from 2009–2024, making it a must-have for advanced key programming work.

Key Features

Designed specifically for Lonsdor K518 PRO / K518ISE / K518S for seamless integration
Reads and writes EEPROM SOIC and MCU chips with high accuracy
Advanced support for Volvo CEM & KVM, covering 2009–2024 models
Supports a wide range of chips from multiple manufacturers (ATMEL & ST)
Easy binding process with K518 devices through the settings menu
Secure pairing – can only be bound to one K518 device
Stable, reliable performance for complex key programming tasks

Binding Instructions

Connect the KPROG adapter to the Lonsdor K518 using the main cable.
Connect the K518 to a 12V power supply.
On the K518 device, go to Settings → Bind Adapter.
Confirm by selecting OK.

Note: Once the KPROG adapter is bound to one K518 device, it cannot be bound to another.

Supported EEPROM & MCU Chips

24 Series (ATMEL & ST Chips)
AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256

93 Series (ATMEL & ST Chips)
AT93C46 / 56 / 57 / 66 / 76 / 86

25 Series (ATMEL Chips)
AT25010 / 020 / 040 / 080 / 160 / 320 / 640 / 128 / 256 / M01 / M02

95 Series (ST Chips)
95010 / 020 / 040 / 080 / 160 / 320 / 640 / 128 / 256 / M01 / M02

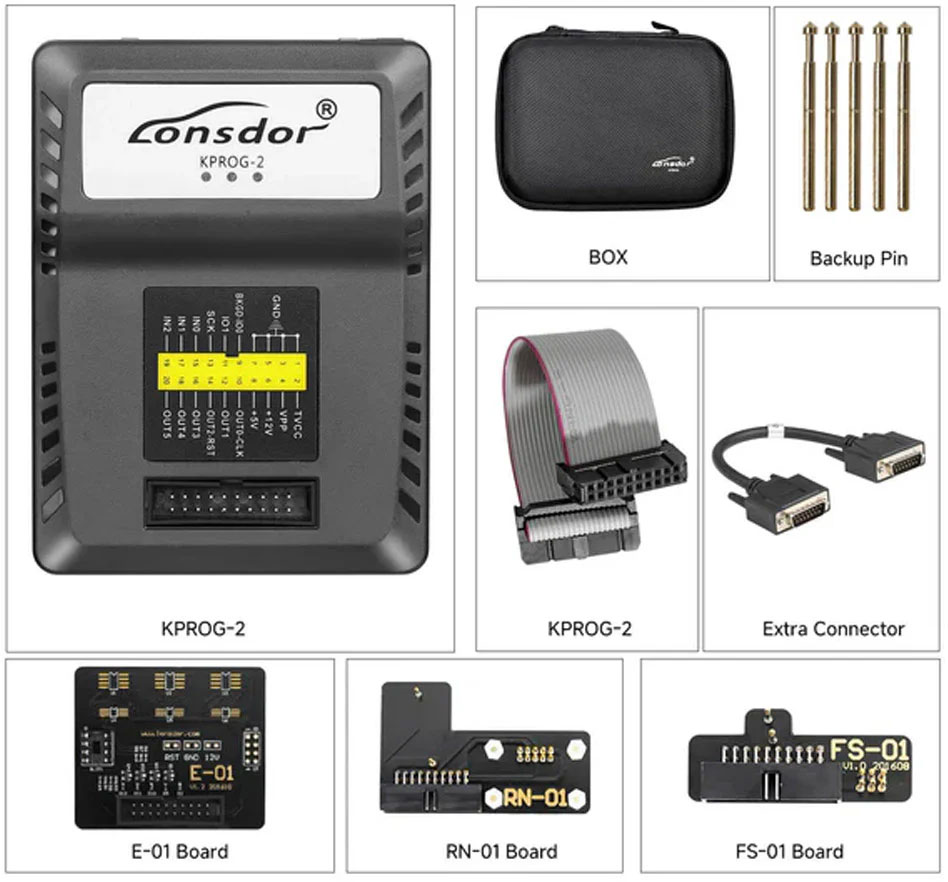

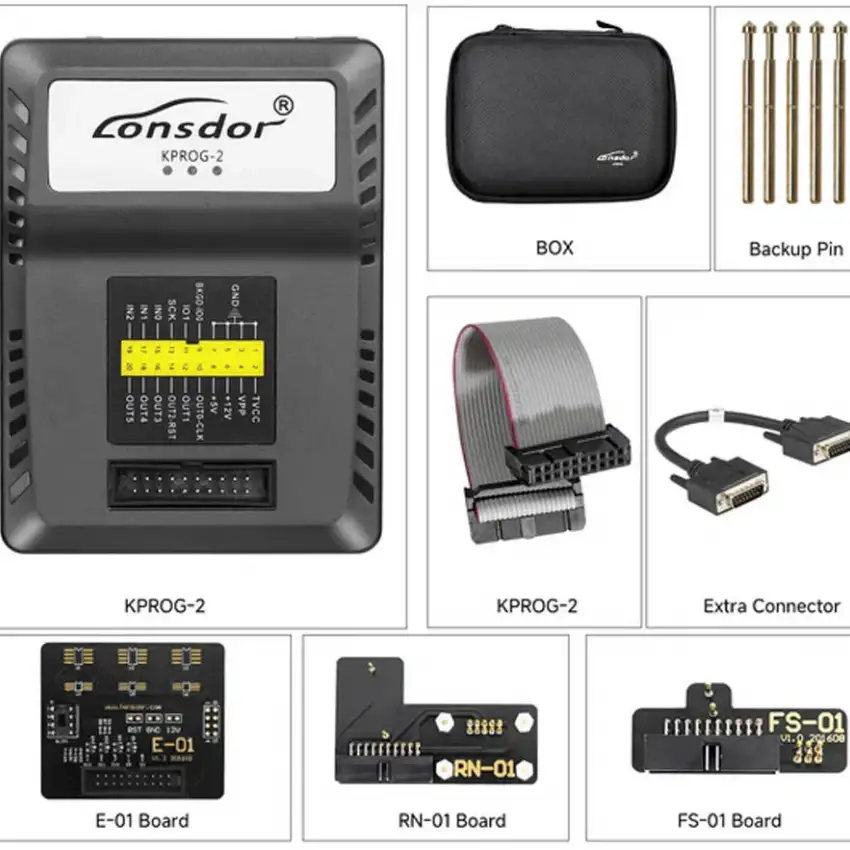

Package Includes

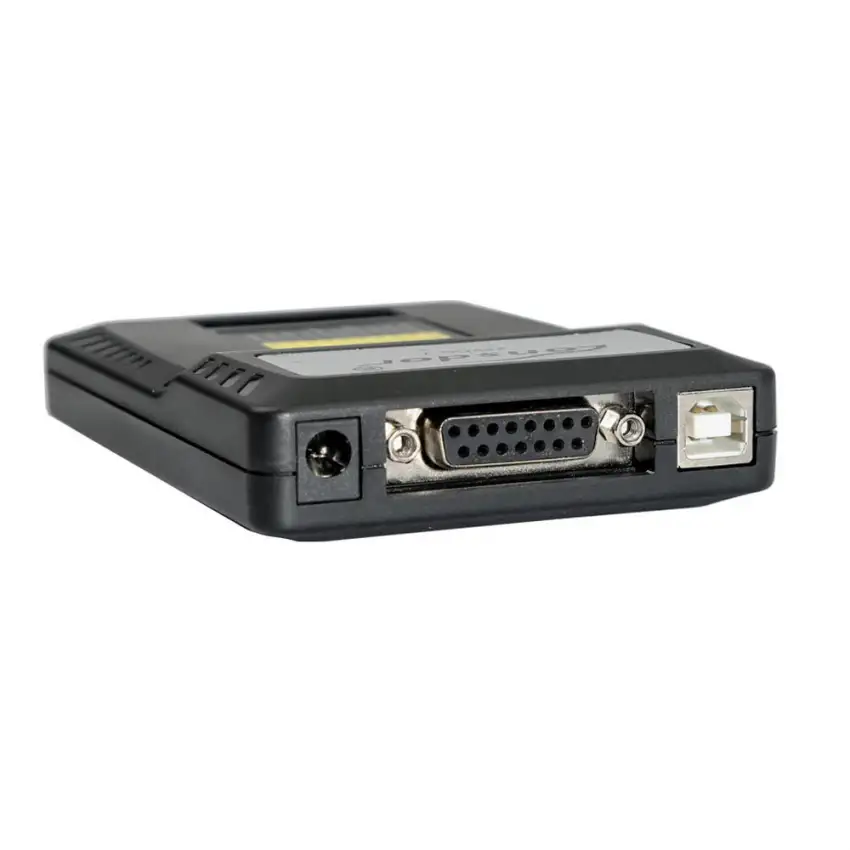

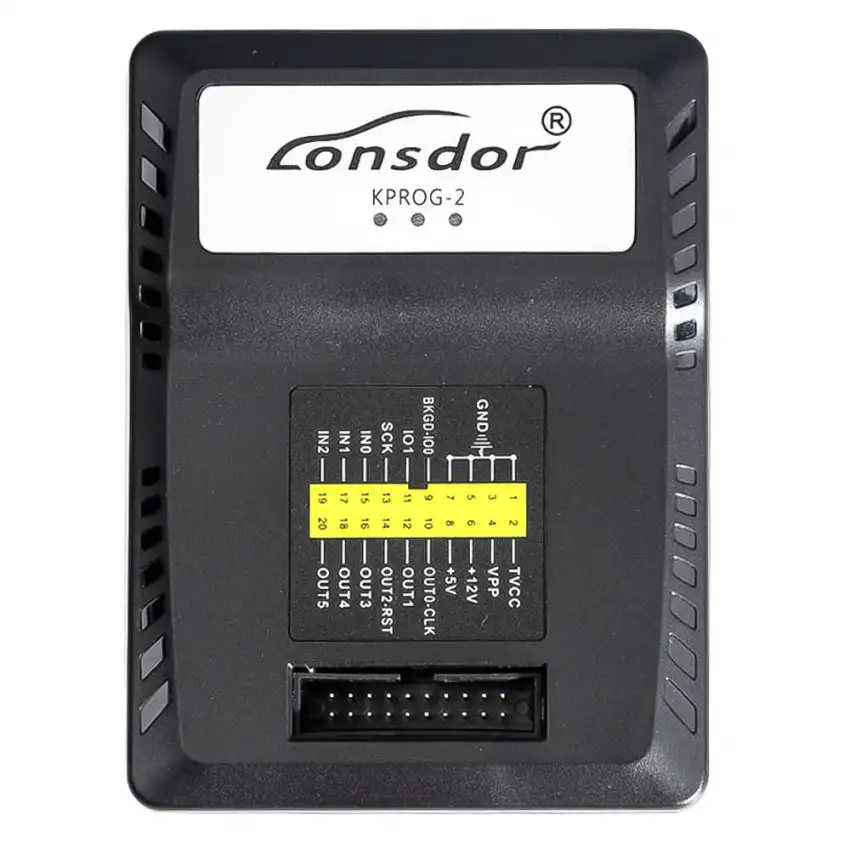

1× Lonsdor KPROG2 Main Unit

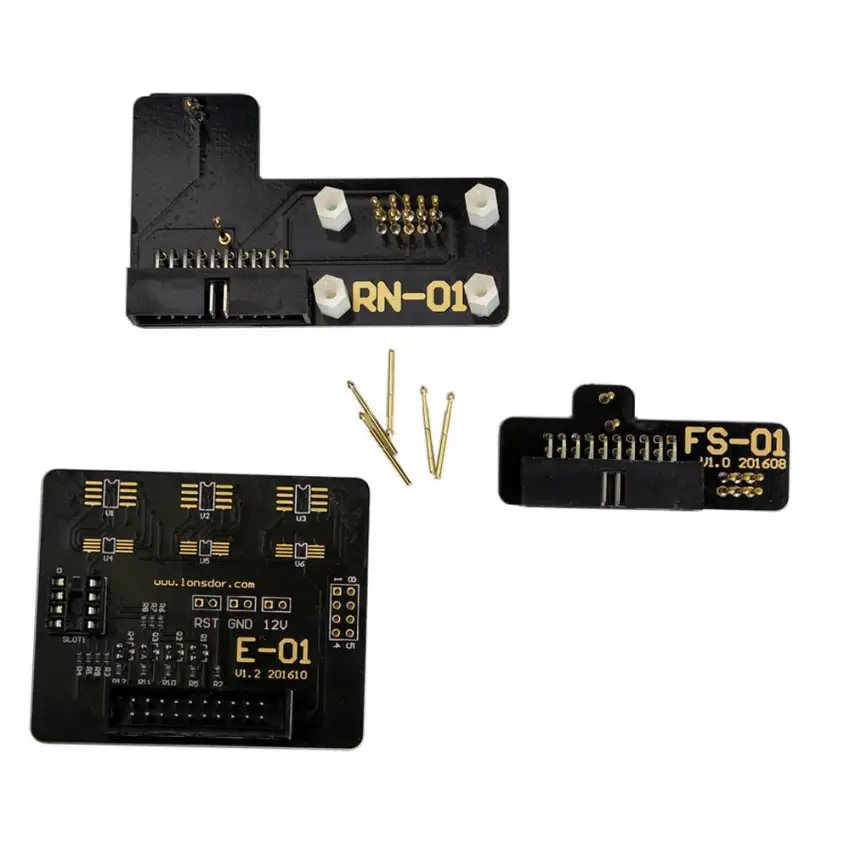

1× E-01 Board (EEPROM Reading)
1× RN-01 Board (Volvo CEM Reading)
1× FS-01 Board (Volvo KVM Reading)

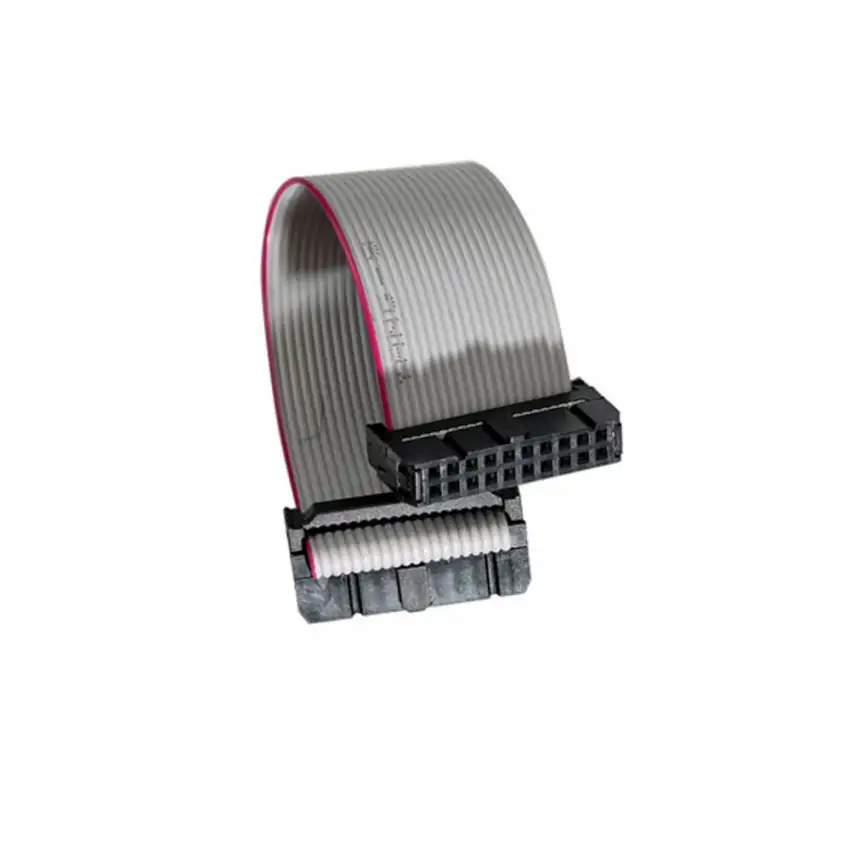

1× Connection Cable (Adapter to KPROG2)
5× Backup Pins

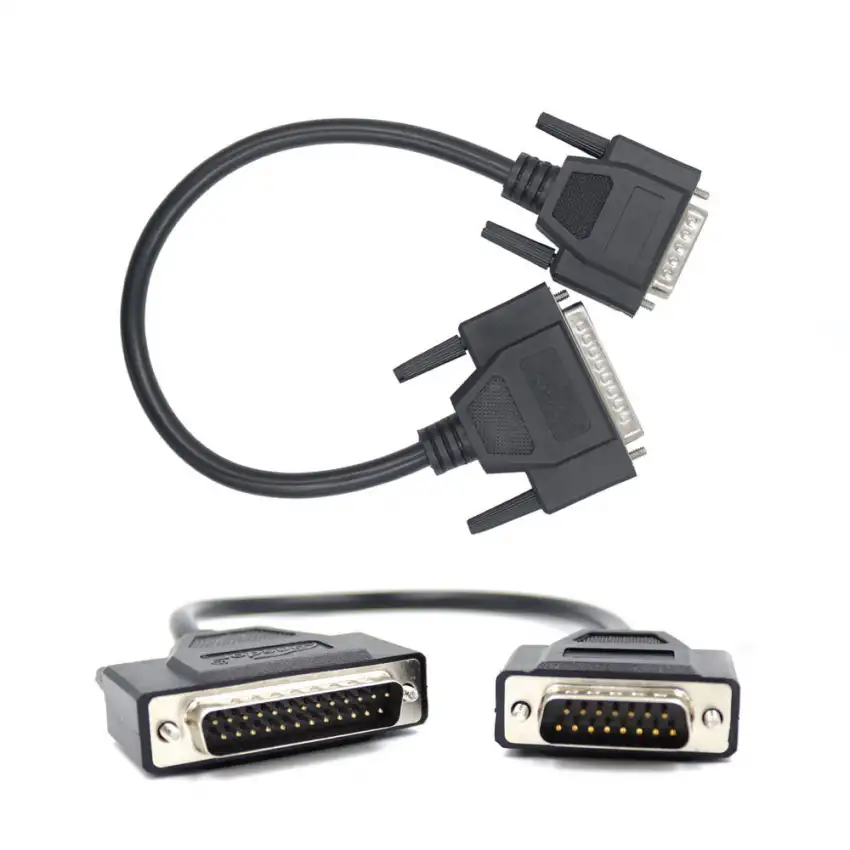

1× Extra Connector Cable (to K518)

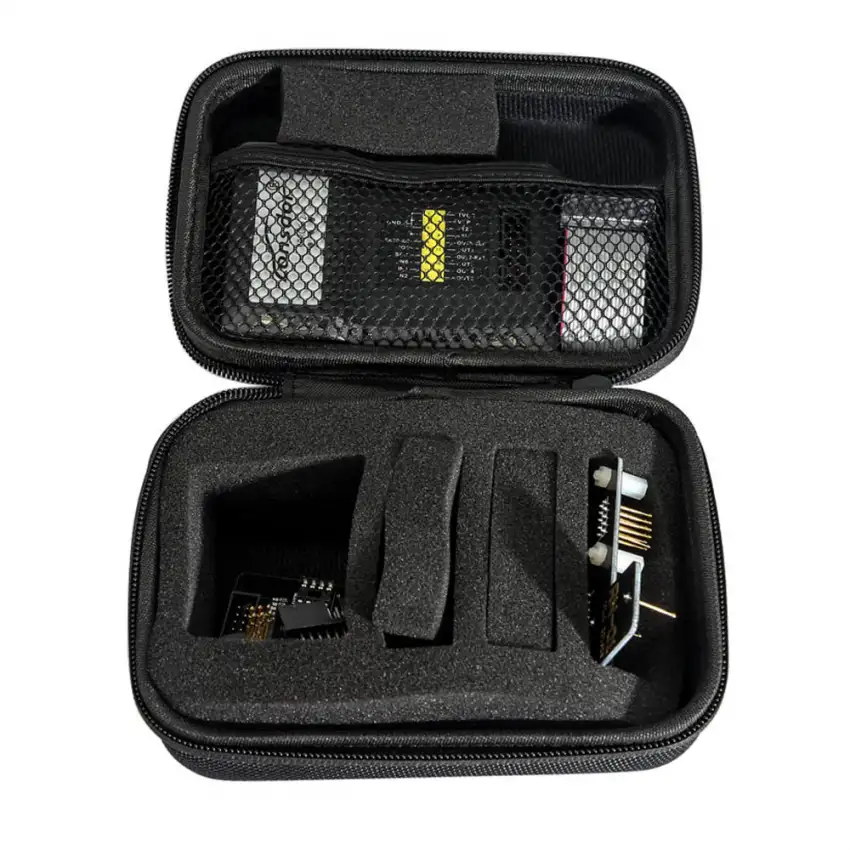

1× Protective Carrying Box

Lonsdor KPROG2 Adapter for K518 PRO / K518ISE / K518S
