OBDSTAR C4-07 (Mercedes-Benz VGS4-0 7G-Tronic TCU Solution) Adapter Full Kit – For KeyMaster G3 & DC706

MB-VGS4-0-NAG2 Adapter Kit

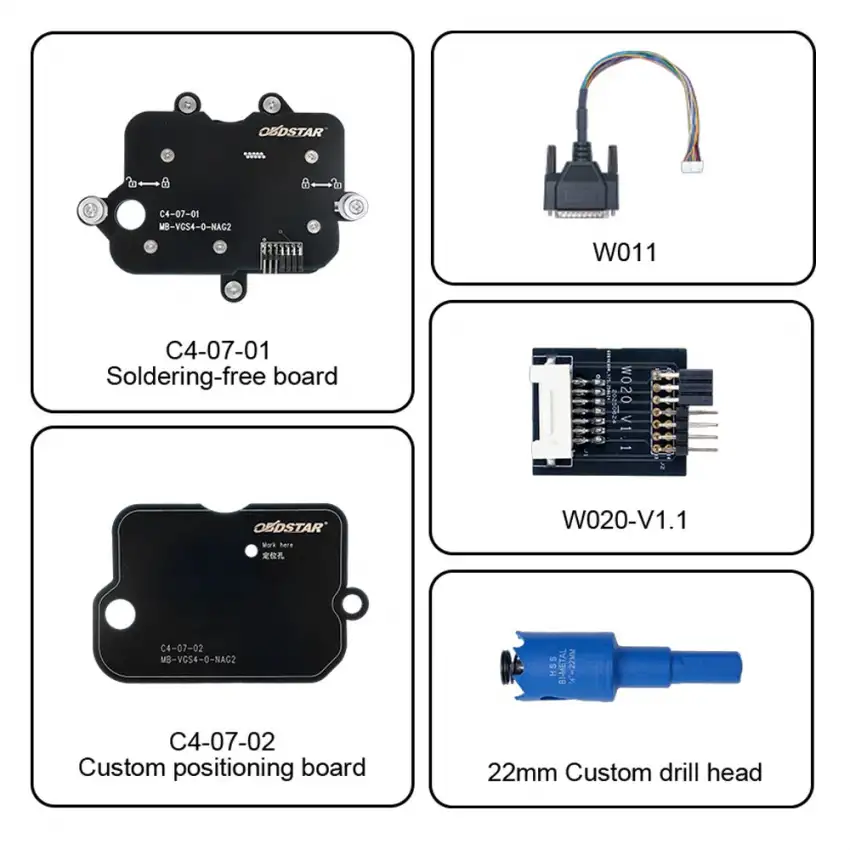

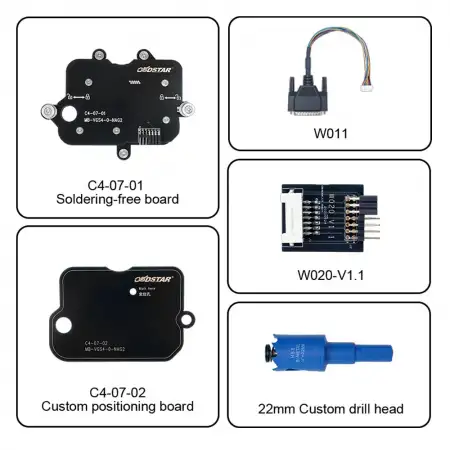

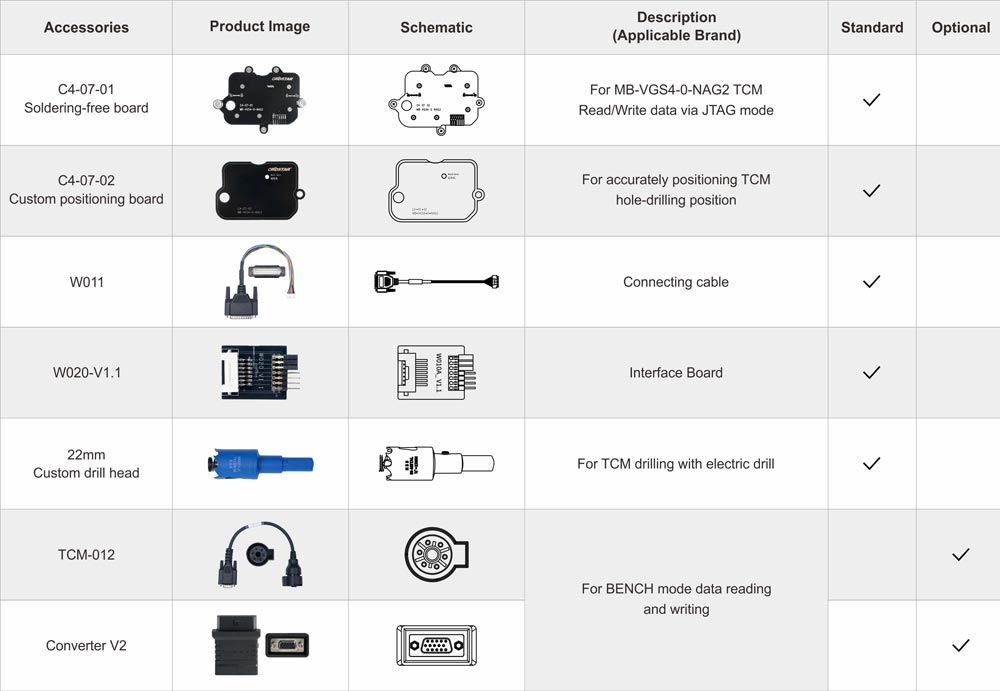

Package Contents:

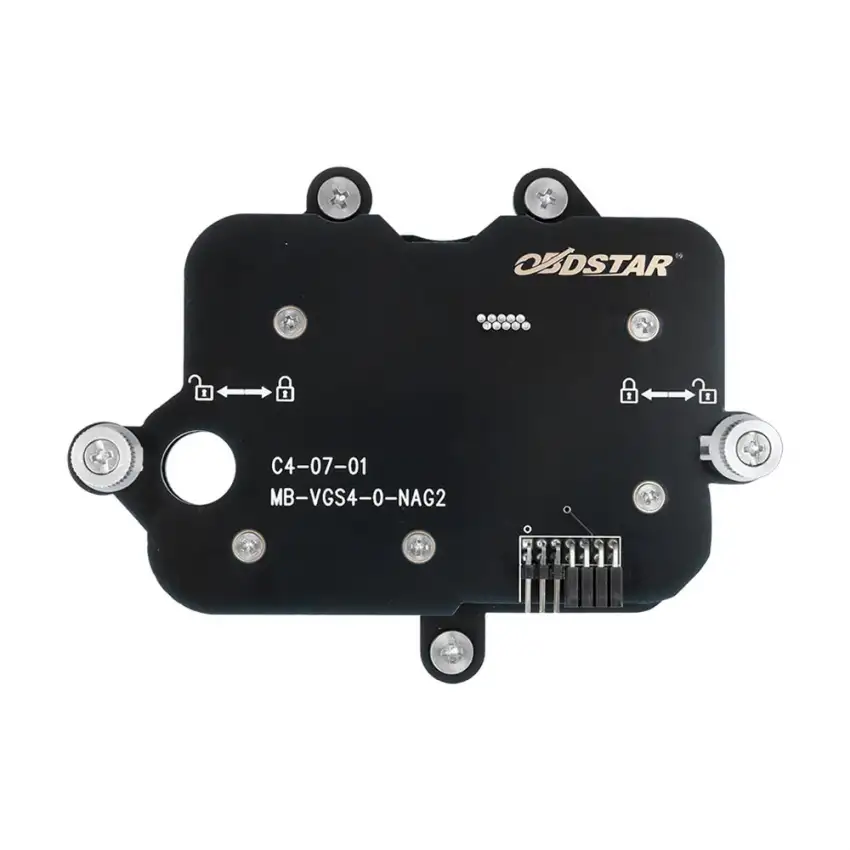

1. C4-07-01 – Solder-free board

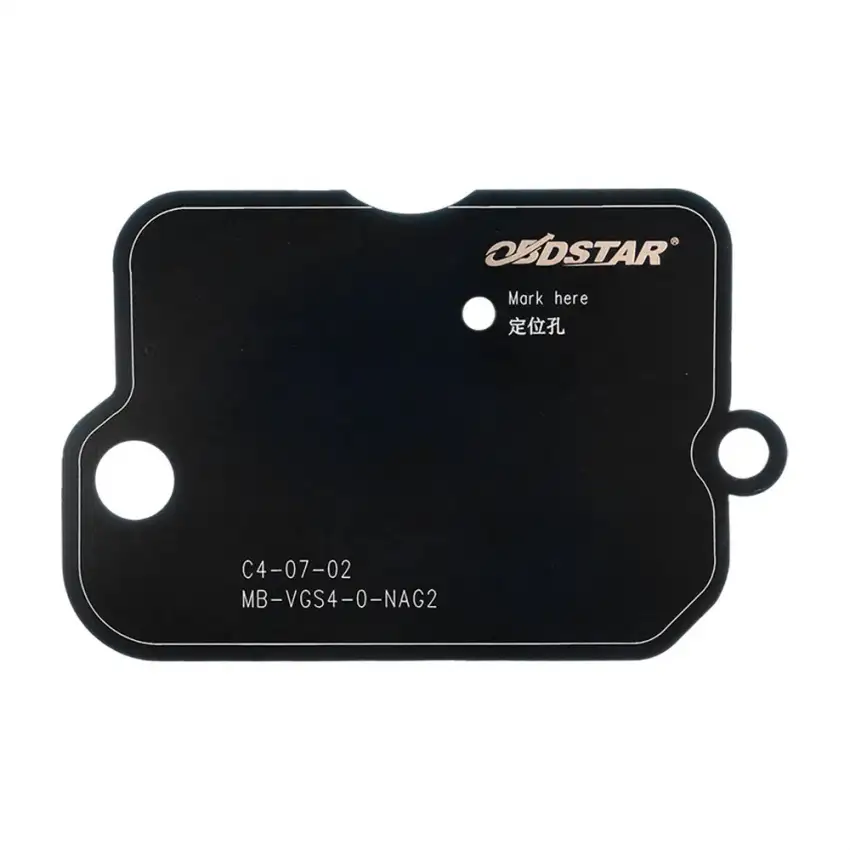

2. C4-07-02 – Custom positioning board
3. W011

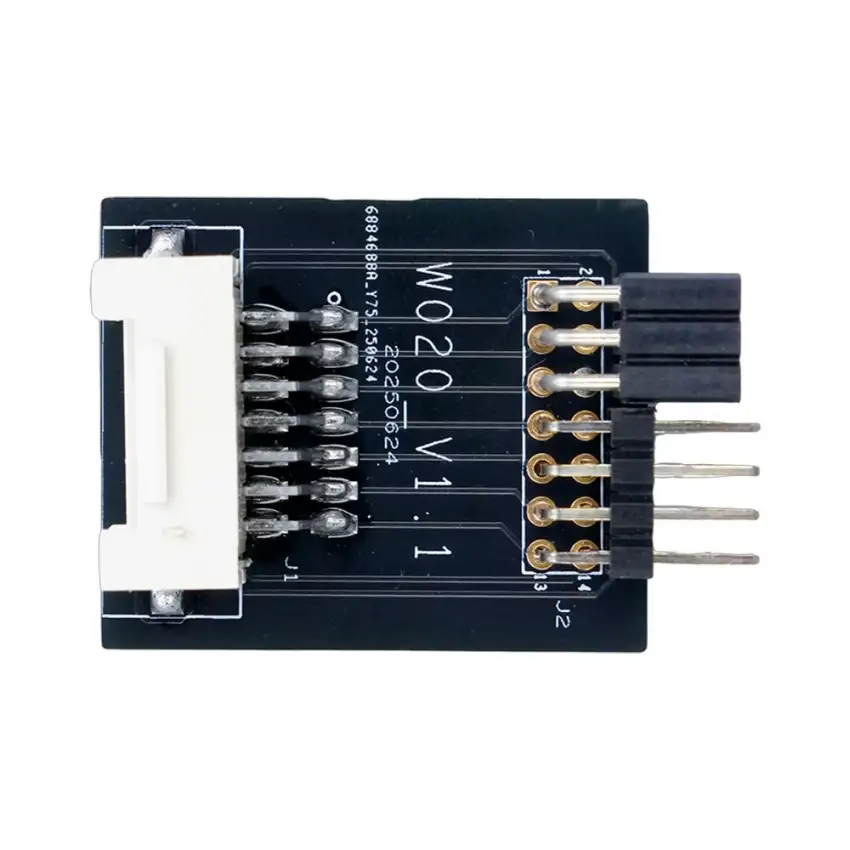

4. W020-V1.1

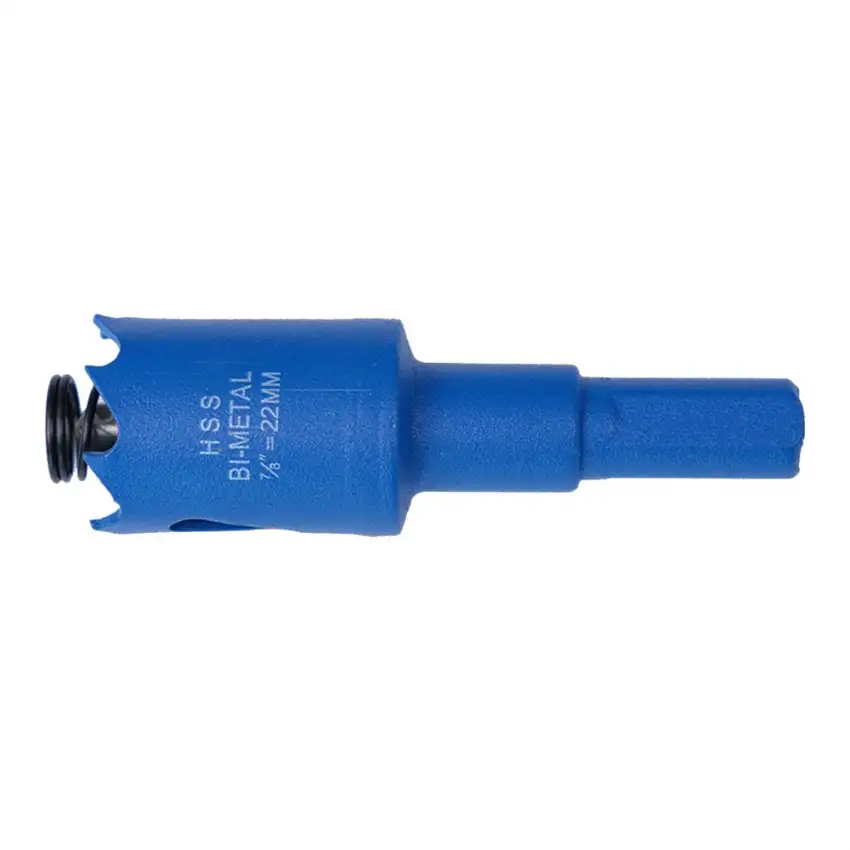

5. 22mm custom drill head
6. TCM-012 (optional)
7. Converter V2 (optional)

Notes:

• Must be used together with the MP001 multifunctional programmer.
• All the above accessories are necessary to carry out the functions.
• If you already own the TCM-012 and Converter V2, you do not need to repurchase them.

Supported Functions

1. Compatible with all Mercedes-Benz models equipped with VGS4-0 NAG2 7G-Tronic TCU from the FBS4/DAS4 generation.
2. Allows virginizing of used TCMs without soldering, using JTAG mode.
3. Enables personalization/data transfer via BENCH or OBD mode, delivering the same results as a complete TCM clone.

Advanced Features

1. Custom positioning board ensures accurate drilling and secure access to the control unit.
2. Paired with the custom drill head and a handheld drill, the TCM can be opened easily with minimal exterior damage.
3. High-precision design allows for safe, solder-free read/write operations, improving reliability and operational safety.

Supported Tools

✔ OBDSTAR KeyMaster G3
✔ OBDSTAR DC706
✔ Other compatible OBDSTAR devices
