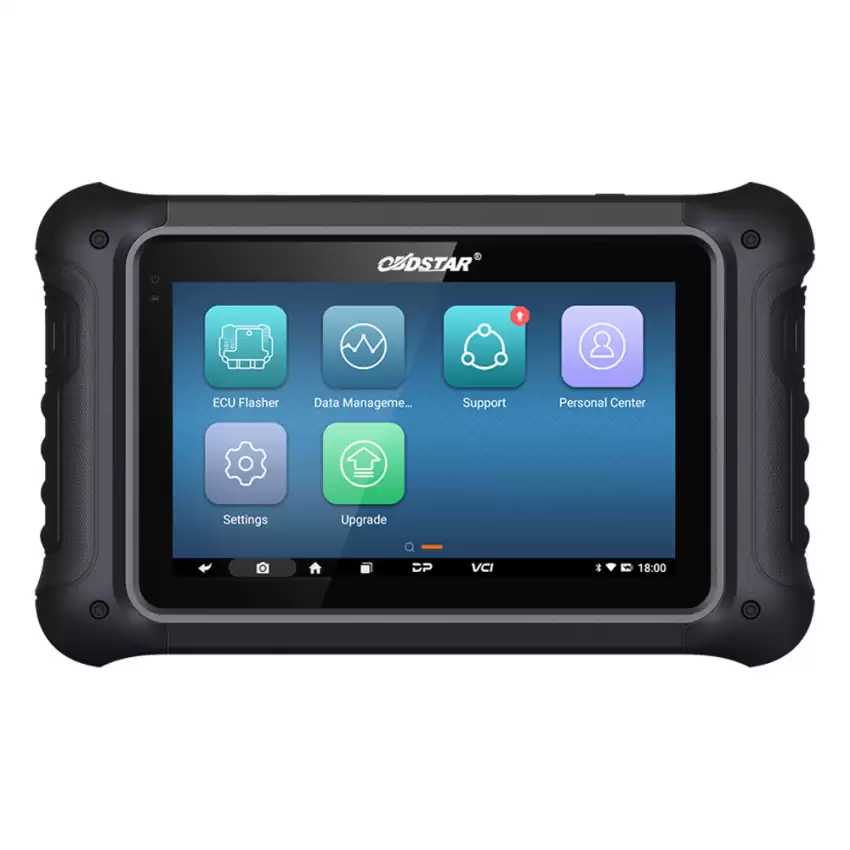

OBDStar DC706 ECU Tool Version for Car & Motorcycle ECM / TCM / Body Clone by OBD Or Bench
| Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 7.0 inch |
| LCD resolution | 1024*600 |
| Touch screen | Capacitive touch screen |
| WIFI | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 0.766kg |
| Dimension | 243mm*148mm*36mm |
| Type | Devices |
| Condition | New |
Obdstar / Key Programming Devices
The OBDSTAR DC706 ECU tool is specifically engineered for ECU flashing in various vehicle systems, including ECM, TCM, and other body systems. This versatile tool allows for reading ECU information, reading/writing Eeprom/Dflash/Pflash/MAP, resetting ECU to a virgin state, mileage calibration, retrieving IMMO pin codes, and ECU recovery. What sets it apart is its capability to perform these tasks both through OBD (On-Board Diagnostics) and bench mode, simplifying the process of ECU cloning.
Functions:
- Clone ECMs in cars from leading manufacturers such as Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens, and more.
- Perform ECM cloning for motorcycles, supporting Bosch, Delphi, EFI, and others.
- TCM cloning is available for a wide range of manufacturers including Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF, and more.
- Clone Body/Other systems for various makes, including FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO, and many others.
Supported ECU Manufacturers
ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo
Supported Brands
- Car
- ASTON MARTIN
- BMW
- FAW
- FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
- FORD/LINCOLN
- GM/OPEL
- HYUNDAI/KIA
- LAND ROVER/JAGUAR
- LUXGEN
- MASERATI
- MAZDA
- MITSUBISHI
- NISSAN
- OPEL
- PSA
- SMART
- SUBARU
- SUZUKI
- VOLVO
- VW/AUDI/SEAT/SKODA
- Motorcycle
- APRILIA
- BRP
- CFMOTO
- DERBI
- GILERA
- GUZZI
- PEUGEOT
- PIAGGIO
- QJBENELLI
- VESPA
Advanced Functions
- Read/Write Eeprom/Dflash/Pflash/Map, perform ECU reset (Virgin), calibrate mileage, read IMMO pin codes, and facilitate ECU recovery.
- Extensive support for 330+ ECM types (Note: Some functions may require the P003 adapter).
- Comprehensive coverage of 150+ TCM types.
- Compatibility with 110+ body/other ECU types, including AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess (RFHUB/RFHM), KVM, RFA, SAM, and more.
- Specialized support for calibrating mileage in VW DQXXX (TCM).
- Motorcycle ECU cloning capabilities for Delphi MT05, MT05.2, and MT05.3 (Works with P003 adapter) as well as BRP ME17.8.5 (Works with P003 adapter).
- Support for Piaggio series engine ECU cloning, such as MIU G4 (M4G1).
- Streamlined functionality with intelligent search options based on brand, model, part number, ECU manufacturer, and MCU controller type.
- Automatic identification for added convenience.
- Comprehensive help data files.
- Flexibility to operate in both OBD and Bench modes.
| OBDSTAR DC706 Different Configurations | |
| Configuration | Software |
| DC706_ EN A | ECM |
| DC706_ EN_B | TCM |
| DC706_ EN_ C | BODY |
| DC706_ EN D | ECM+TCM |
| DC706_ EN E | ECM+B0DY |
| DC706_ EN F | TCM+B0DY |
| DC706_ EN_ FULL | ECM+TCM+BODY |

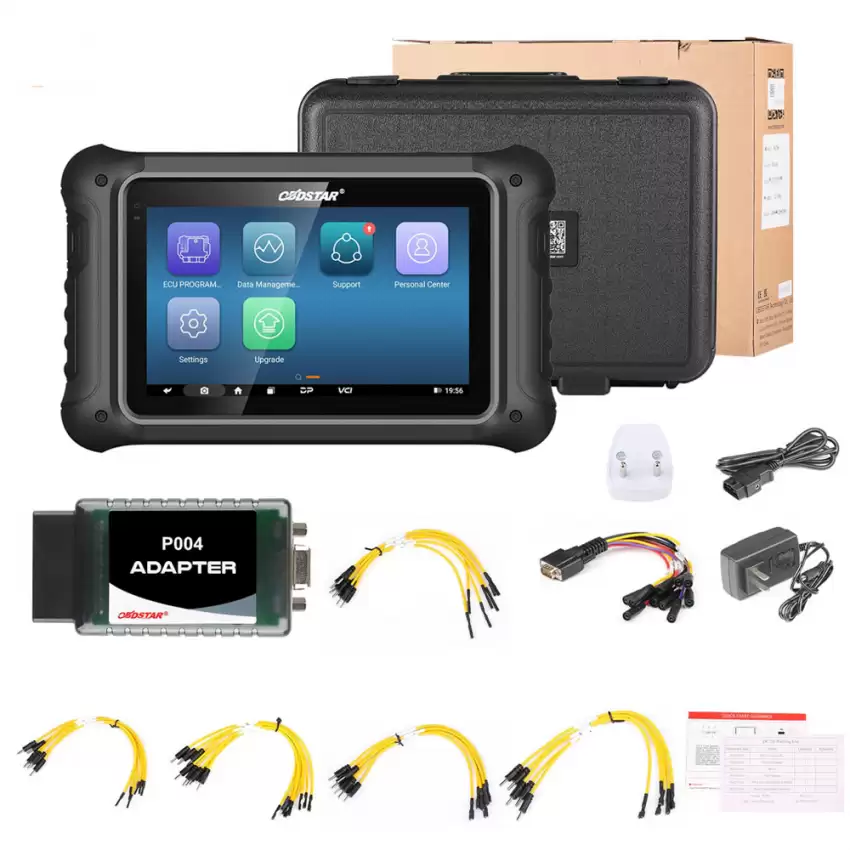

Package Includes:
1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
