OBDSTAR IScan Yamaha Marine Diagnostic Tool

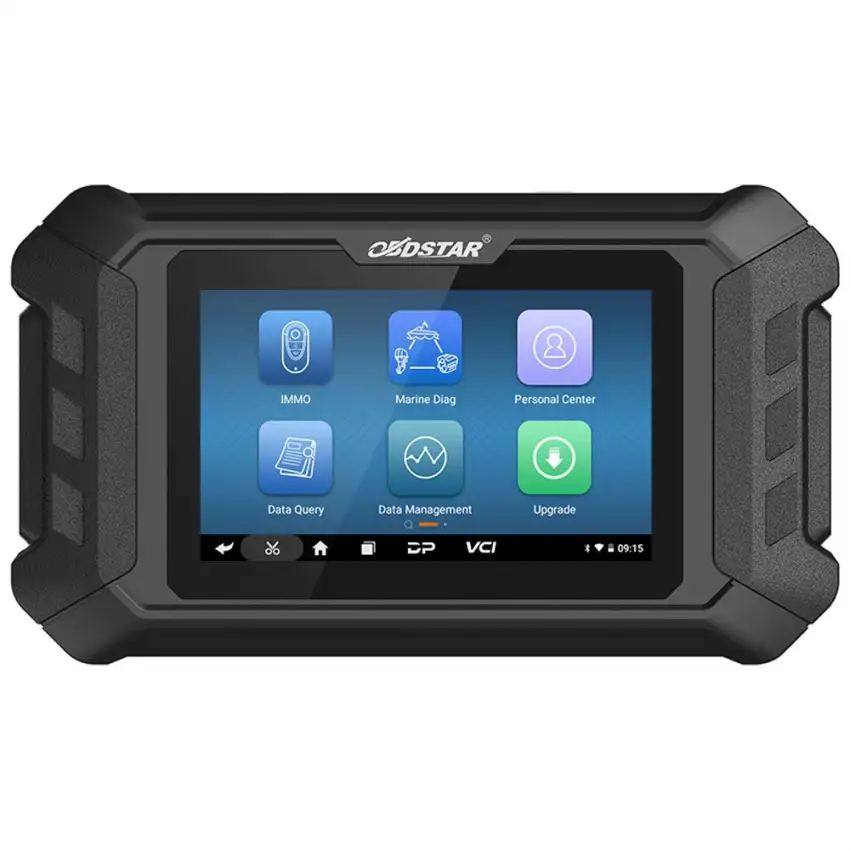

ISCAN YAMAHA is a powerful, portable tablet designed specifically for YAMAHA marine engines. It features a sleek industrial design and a user-friendly 5.0-inch capacitive touchscreen. Powered by a quad-core RK3128 processor, this tablet offers professional-grade diagnostic capabilities for marine technicians and enthusiasts.

Key Features and Functions:

• User-Friendly Interface: The ISCAN YAMAHA operates on Android 5.1.1 and features a simple, intuitive menu system for easy navigation.
• Comprehensive Diagnostics: Perform a wide range of diagnostic tasks including code reading, clearing, data flow analysis, action testing, setting, and coding.
• Real-Time Data: Record and playback real-time data to quickly identify sensor and component issues.
• Connectivity: Connect to the internet via Wi-Fi for software updates and remote technical assistance.
• Remote Support: Access one-click remote support from OBDSTAR technical staff for assistance with diagnostics.

Advanced Features:

• Mobile App Integration: The OBDSTAR mobile app offers additional features like diag socket location, flash code query, technical bulletins,
• manual service functions (service lamp reset), and basic parameter information, enhancing the accuracy and efficiency of marine diagnostics.
• Data Visualization: Analyze faults easily with various data flow display modes, including text, waveform diagrams, and instrument diagrams.
• Customizable Settings: Configure device settings and customize maintenance notifications to meet your specific needs

Diagnostic support series

1. Support 2003 -2022 All Jet Ski models;
2. Support to 2022 All Outboard models.

Function Display-(From OBDSTAR Mobile App)

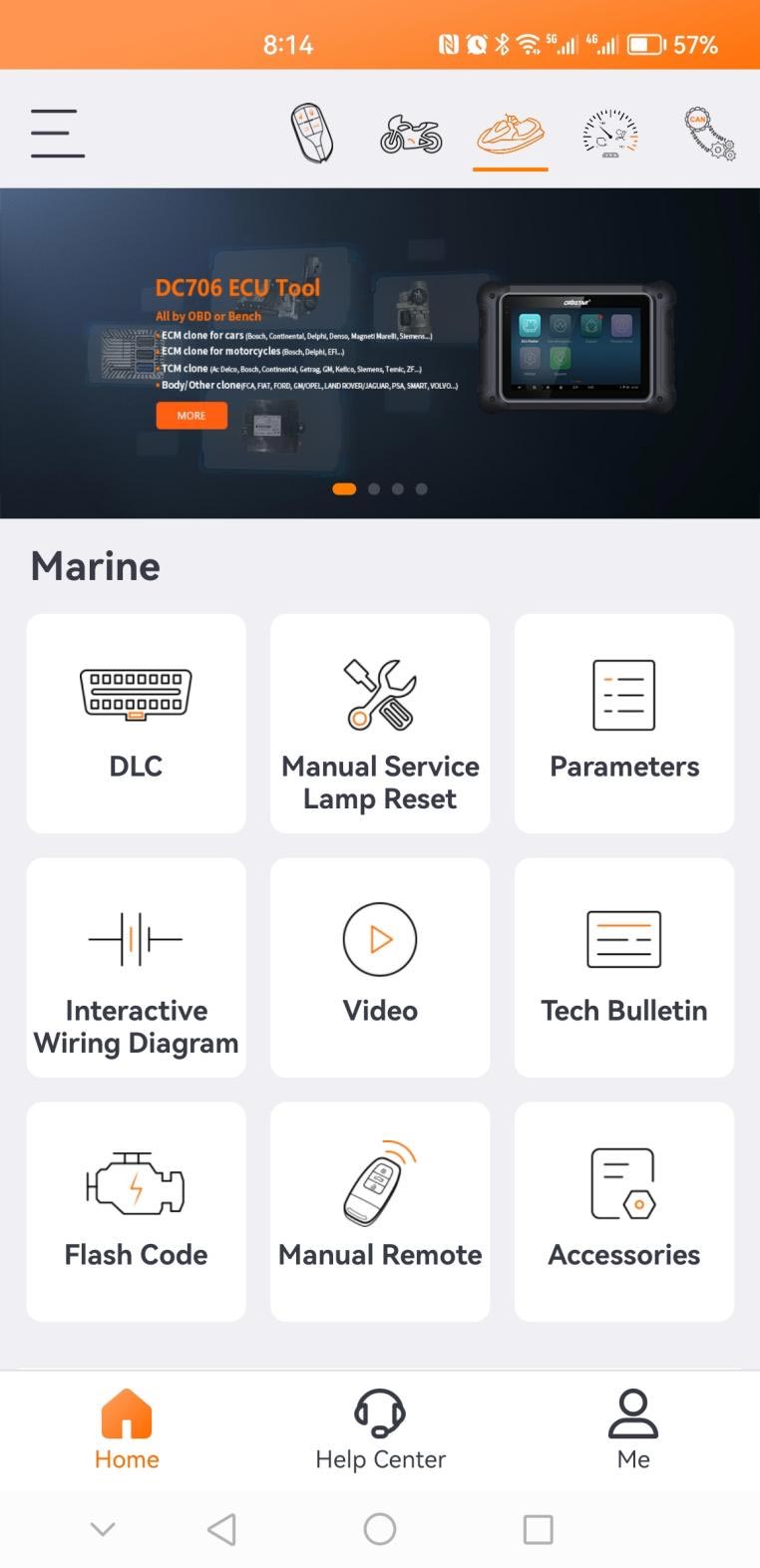

1) Main Page

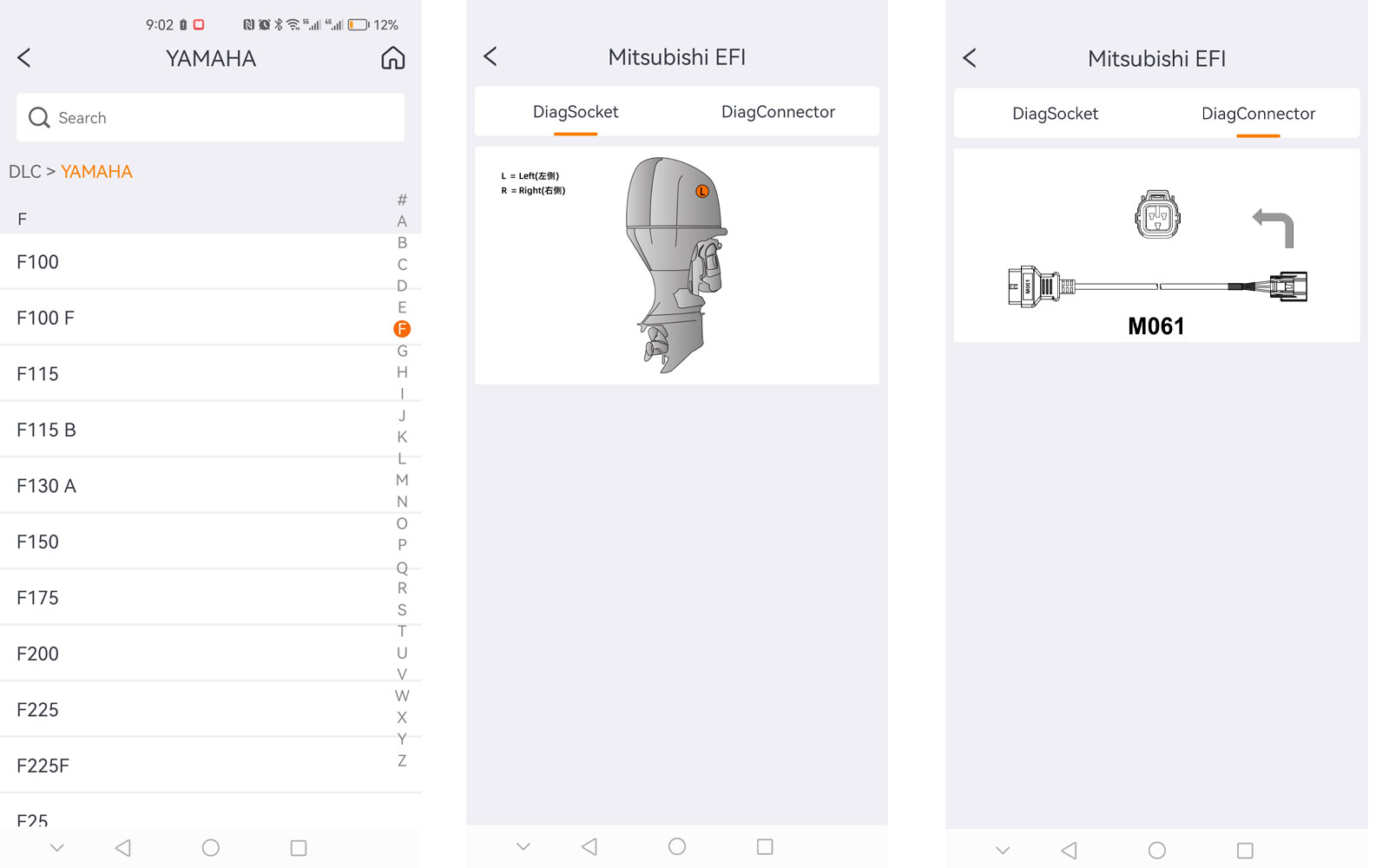

2) Diag Socket/Diag Connector Location

Function Display-(From ISCAN)
1) Main Page/Brand Supported

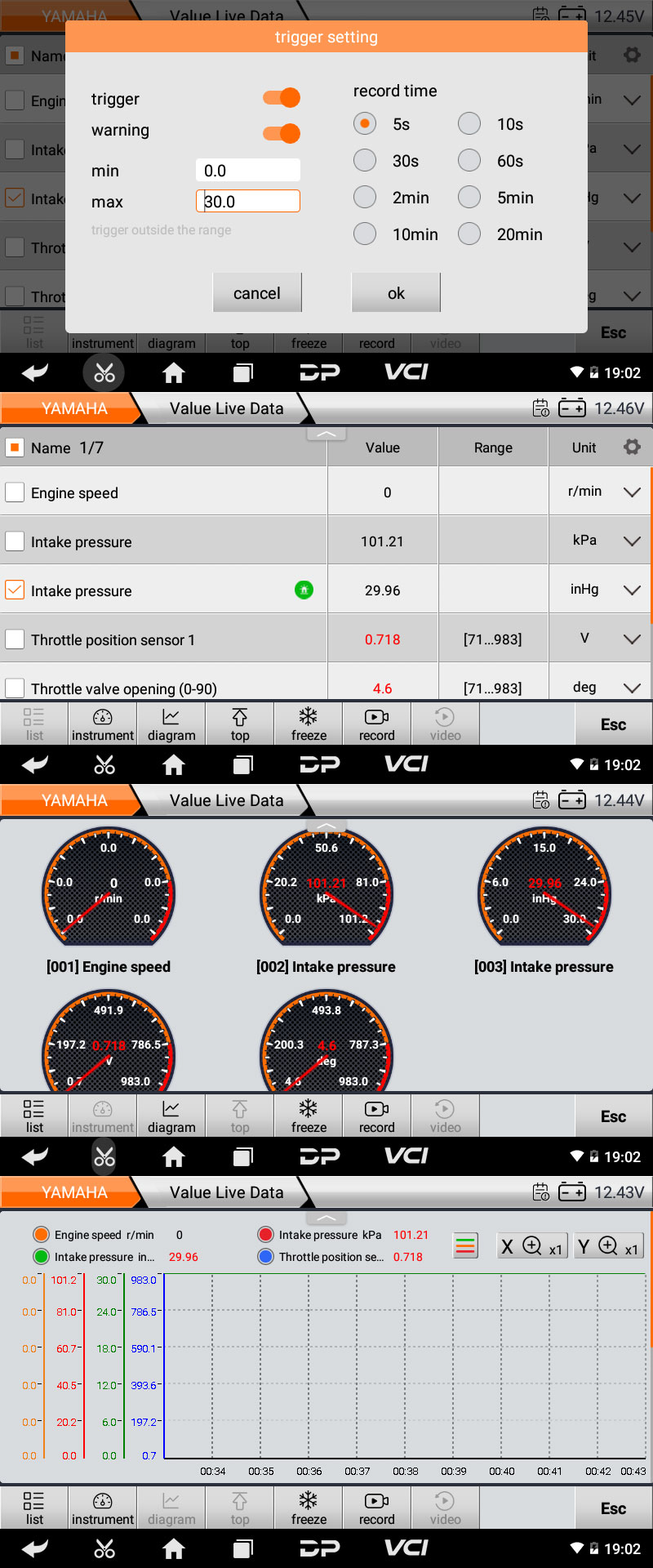

2) Data Flow Text/Waveform Diagram/Instrument Diagram

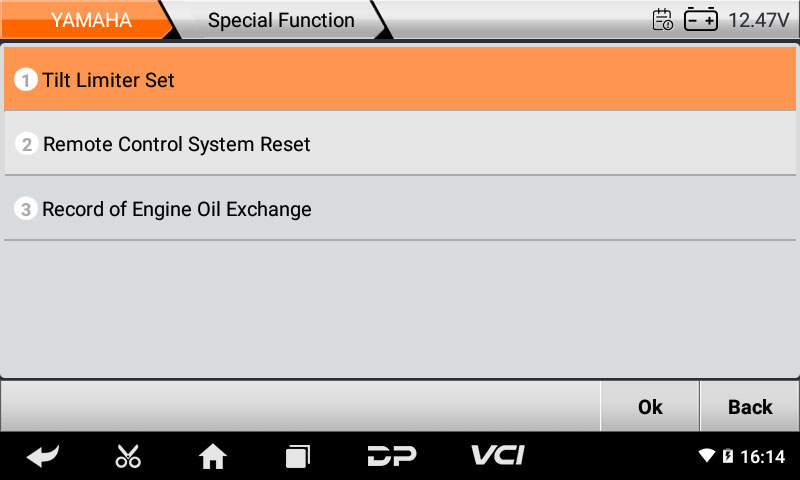

3) Special Functions

Downloads:
ISCAN YAMAHA (MARINE) COVERAGE 20240830
ISCAN SERIES (MARINE) User Manual

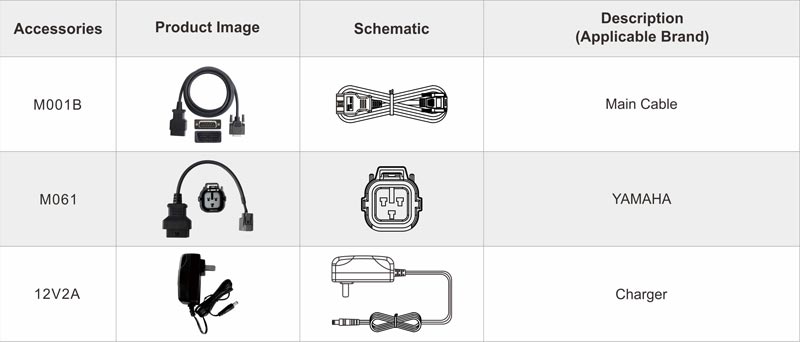

Accessories:
