OBDStar Keymaster DP Plus Programming Machine Full Immobilizer Package C With 2 Year Software

OBDStar Keymaster DP Plus Programming Machine Full Immobilizer Package C With 2 Year Software-0 thumb
Key Master DP Plus C Programming Machine Full Immobilizer + 2 Year Software thumb
OBDSTAR  Keymaster DP Plus Programming Machine Full Immobilizer Package C With 2 Year Software thumb
OBDStar Keymaster DP Plus Programming Machine Full Immobilizer Package C With 2 Year Software - PD-OBD-DPLUSC  p-2 thumb
OBDStar Keymaster DP Plus Programming Machine Full Immobilizer Package C With 2 Year Software - PD-OBD-DPLUSC  p-3 thumb
OBDStar Keymaster DP Plus Programming Machine Full Immobilizer Package C With 2 Year Software - PD-OBD-DPLUSC  p-4 thumb
PD-OBD-DPLUSC

OBDStar Keymaster DP Plus Programming Machine Full Immobilizer Package C With 2 Year Software

$1,849.00
Operation systemAndroid 5.1.1
CPUExynos4418 Dual Core ARM Cortex A9 1.4GHz
Battery3700mA, rechargeable polymer lithium battery
Extension memory card32G Micro SD (TF) card supported
Memory capacity1GB
Storage capacity32GB
LCD8.0 inch
LCD resolution1280*800
Touch screenCapacitive touch screen
Camera5 mega rear view camera
Wi-Fisupported
Working temperature-10℃ ~ 55℃(14℉ ~ 131℉)
Storage temperature-20℃ ~ 70℃(-4℉ ~ 158℉ )
Weightabout 1.0 Kg
about 1.0 Kg254mm*174*mm*35mm
TypeDevices
ConditionNew

This cutting-edge device represents a fresh approach to vehicle diagnostics, operating on the Android platform and tailored for online applications. Leveraging OBDSTAR's expertise in advanced diagnostics, it boasts an expansive vehicle coverage, impressive functionality, and pinpoint accuracy. By utilizing the vehicle's diagnostic OBD connector in conjunction with various intelligent mobile devices, it delivers comprehensive vehicle diagnostics for all car models and systems. Furthermore, harnessing the power of mobile internet connectivity, this device seamlessly integrates additional features and services, including a Maintenance Database, remote assistance, and One Key Upgrade, enhancing its overall utility.

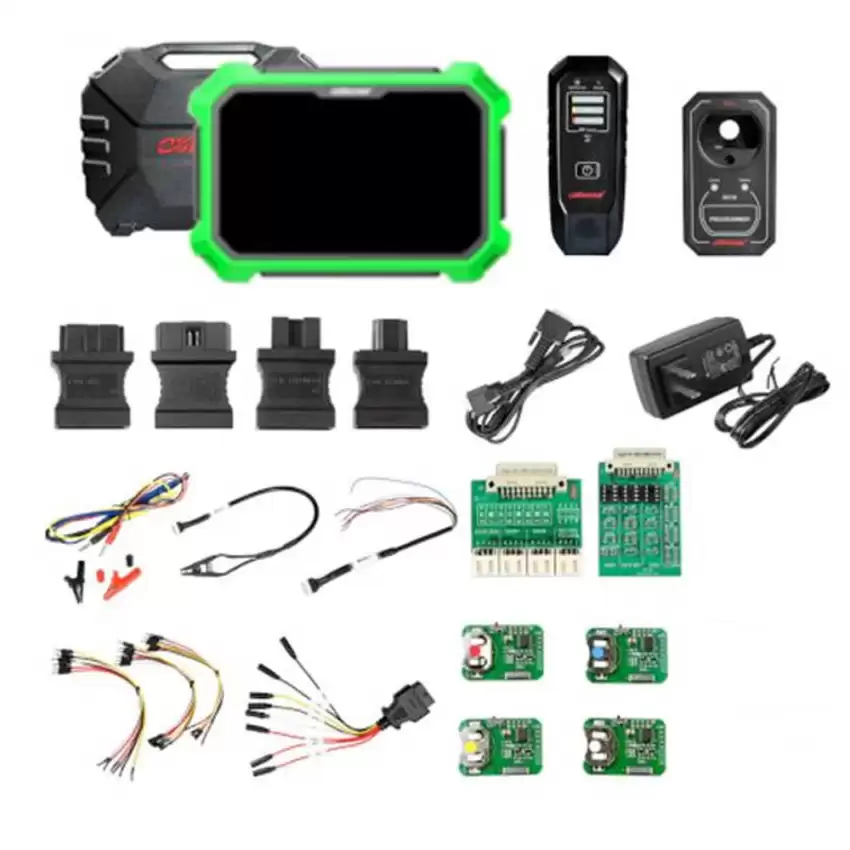

Full Immobilizer C Package includes:

  • Immobilizer
  • Mileage correction
  • Diagnosis
  • Special functions (Oil reset, ABS, Battery matching, ECU programming, EPB, Throttle programming, Airbag reset, TPMS, Steering angle reset, OBDII, DPF, Injector code, Suspension matching, Gear learning, CVT learning, EEPROM, Key renewing, ECU cloning)
  • Adapter (P001 programmer, C001 circuit board, C002 circuit board, W001 data cable, W002 data cable, W003 data cable, Toyota smart key emulator)
  • Additional components (Ignition coil, Remote tester)

Hardware Advantages:

  • Built-in VCI box
  • 8-inch touchscreen
  • Charge directly via OBD interface
  • Practical and high-end gift box
  • Industrial design with silicone case

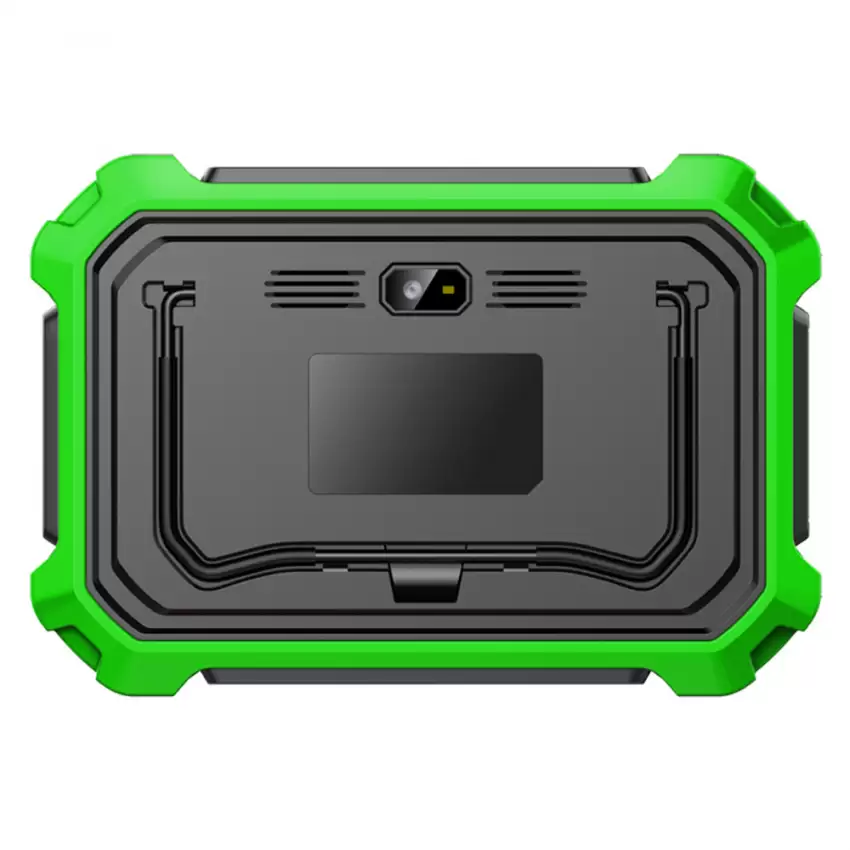

  • Back bracket design:prop on the steering wheel or stand on the table
  • With 4 Toyota simulation keys (the fifth is coming soon)
  • P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
  • Add the clip of reading SOP 8PIN EEPROM
  • C001/C002 circuit board to read and write chip data with welding
  • IMMO induction coil to detect the key induction coil failure of the vehicle.
  • Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Software Advantages:

  • IMMO
    • EEPROM
    • Renew key
    • Key programming
    • Remote programming
  • Cluster calibrate
    • Wild vehicle coverage, pls check the carlist
  • Diagnosis
    • Realize all vehicle systems diagnosis

Advanced Functions

  • Support MAZDA CX30 2020-,MAZDA3 2020- key programming(support AKL and free pincode);
  • Support PSA 2015- CONTINENTAL BSI-Q0X all keys lost reading pincode, DELPHI BSI read pincode by OBD in all keys lost, all series all years models key programming;
  • Support RENAULT /DACIA proximity add keys(free pincode) for below models:
    • CAPTUR II 2021+
    • CLIO V 2021+
    • TRAFIC 2022
  • Support RENAULT /DACIA proximity key programming(free pincode) for below models:
    • TRIBBER 2018+
    • ARKANA 2020+
    • LOGAN 2020+
    • MEGANE IV PH2 2020+
    • NEW ZOE 2020+
    • SANDERO 2020+
  • Support RENAULT /DACIA blade/ proximity key programming(free pincode) for below models:
    • DUSTER PH3 2018+
  • Support JEEP COMPASS 2021 proximity all parts number read pincode;
  • Support CHRYSLER/ JEEP/ DODGE all series all years models key programming;

Special Functions

TPS/ABS/EPB/DPF/TPMS/SRS reset/fuel injector/gear Learning/battery matching/ECU programming/throttle matching/ oil/service reset/steering angle reset/remote manual setting/electronic steering reset/CVT learning/value reset.

ECU Clone

  • ECU clone, means ECU duplication.
    • The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.
  • Clone directly when replacing a new or a used ECU.
    • Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD.
  • Three features for ECU clone.
    • Free of 4S online: break monopoly from 4S, benefiting automobile maintenance industry
    • Simplified operation procedures: realize foolproof operation
    • Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function

Today, numerous vehicle instruments and audio systems rely on secondary power activation through module CAN communication within the vehicle. However, occasionally, these instruments or audio systems can become disconnected from the vehicle's CANBUS network. This can lead to startup issues when they require servicing by an automotive technician. This feature can mimic CAN communication, enabling the activation of secondary power supply, thus bringing the instrument or audio system into a powered-on state. This not only facilitates testing and verification of these components but also results in significant cost savings for auto technicians who would otherwise need to invest in a multitude of startup platforms for various vehicles and wiring harnesses.

Add “Help”Functions

  • Incorporating built-in testable vehicle models, upgrade notifications, features, assistance notes, and wiring diagrams, among others.
  • The device includes a carlist and upgrade notifications, offering users access to all relevant details directly on the device.
  • Customers have the capability to conveniently search for features or unique support functions on the device.
  • For added assistance, the device provides built-in help notes for each model or function.
  • Users can also access built-in ECU wiring diagrams, enhancing the intuitiveness and convenience of the device.

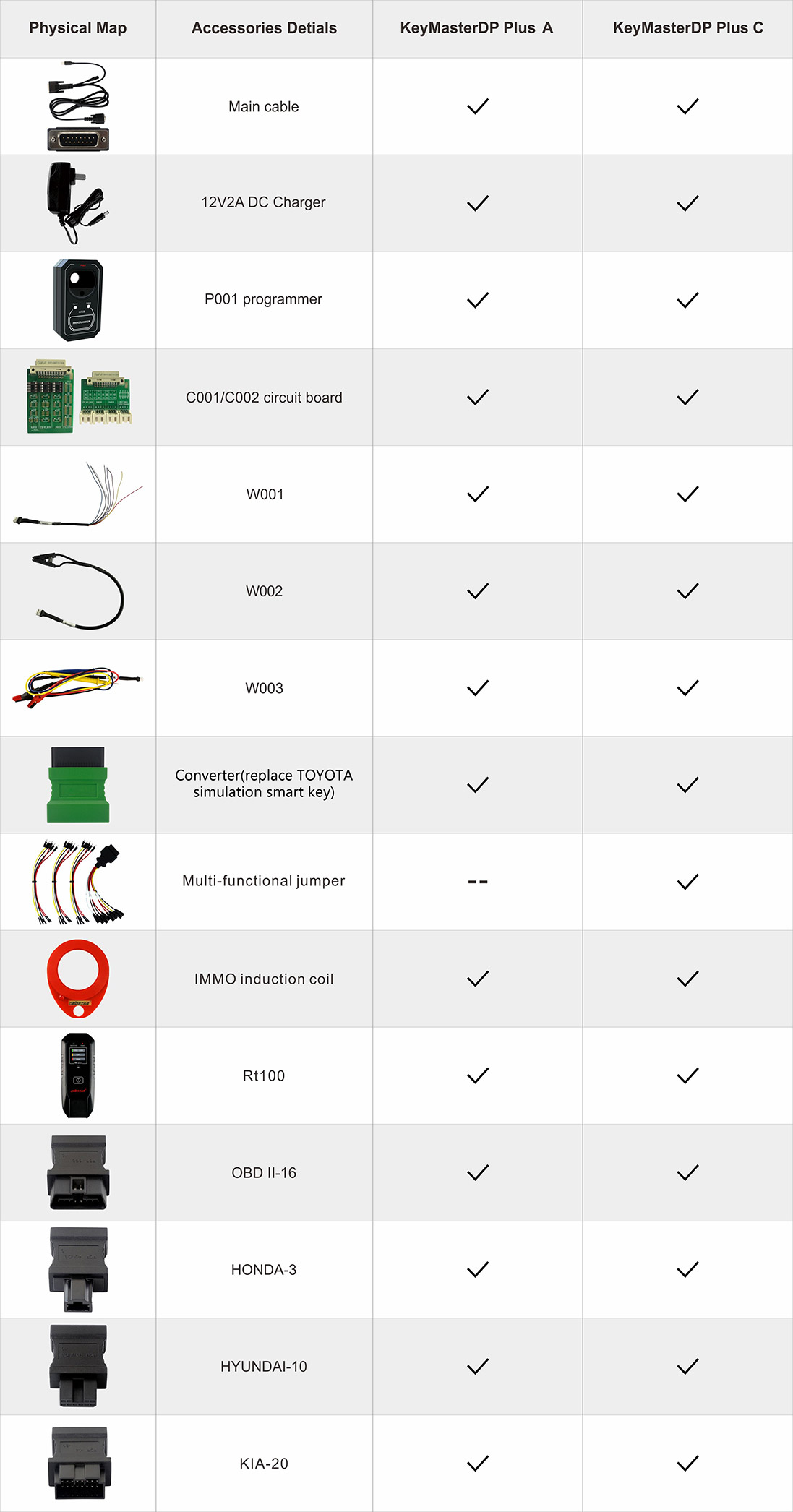

CONFIGURATIONS

  • A Package
    • Immobilizer +special function(EEPROM+ key renewing) adapter(P001 programmer +C001 circuit board +C002 circuit board +W001 cable +W002 data cable +W003 data cable +converter) +others(ignition coil +remote tester)
    • Immobilizer +special function(EEPROM +key renewing) +mileage correction +adapter(P001 programmer +C001 circuit board +C002 circuit board +W001 data cable +W002 data cable +W003 data cable +converter) +others(ignition coil +remote tester)
  • C Package
    • Immobilizer +mileage correction +diagnosis +special function(oil reset +ABS +battery matching +ECU programming +EPB +throttle programming +airbag reset +TPMS +steering angle reset +OBDII +DPF + injector code +supension matching +gear learning +CVT learning +EEPROM +key renewing +ECU cloning) adapter(P001 programmer +C001 circuit board +C002 circuit board +W001 data cable +W002 data cable +W003 data cable +converter) +others(ignition coil +remote tester)

Keymaster DP Plus User Mannual
Keymaster DP Plus Coverage
