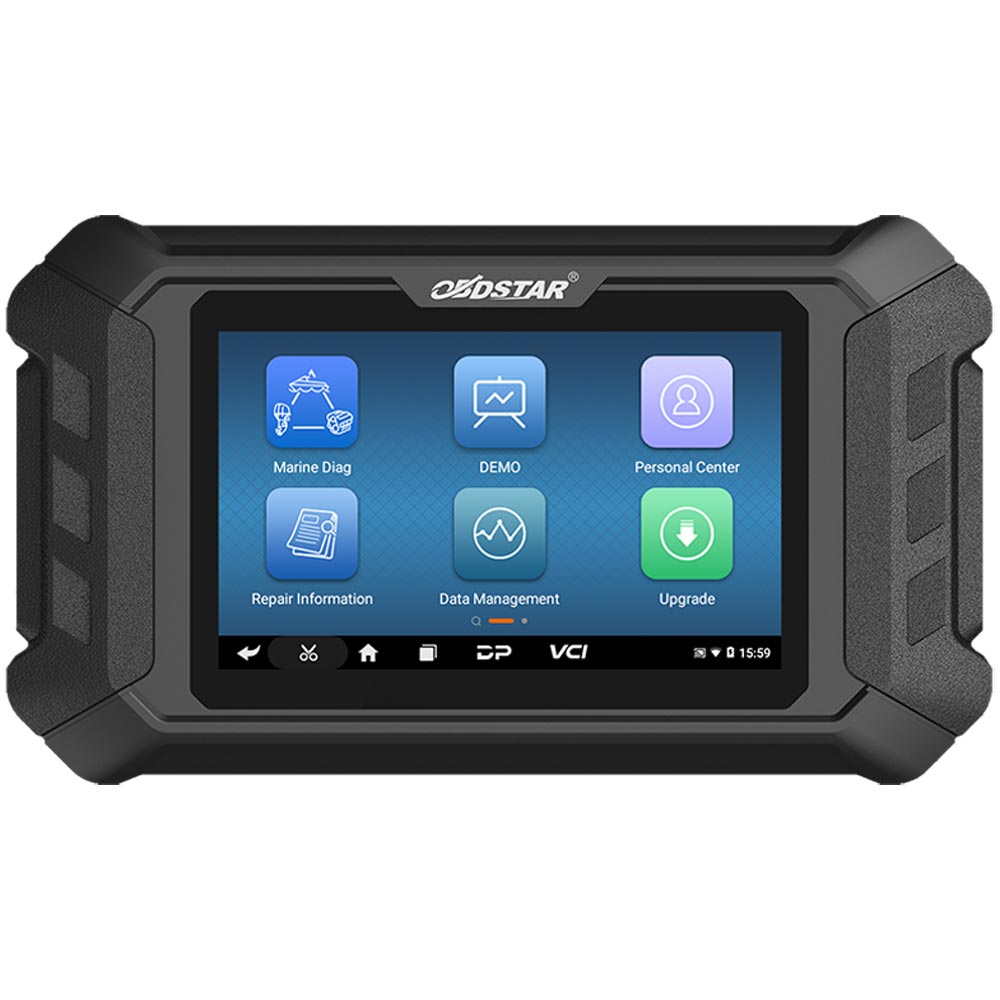

OBDSTAR Diag Mate Mercury Marine Intelligent Diagnostic Tool

OBDSTAR Diag Mate Mercury Marine Intelligent Diagnostic Tool-0 thumb
Diag Mate Mercury Marine Intelligent Diagnostic Tool from OBDSTAR thumb
OBDSTAR Diag Mate Mercury Portable Marine Intelligent Diagnostic Tool thumb
PD-OBD-ISCANMERCURY

OBDSTAR Diag Mate Mercury Marine Intelligent Diagnostic Tool

2 answered questions
$389.00

Operating SystemAndroid 5.1.1
CPURK3128 quad-core ARM cortex A7
Battery2600mA, rechargeable polymer lithium battery
Extension memory card32G micro SD (TF) card supported
LCD5.0 inch
LCD resolution800*480
Touch screenCapacitive touch screen
WifiSupported
Working temperature -20℃~55℃ (14℉~131℉)
Storage temperature-20℃~70℃ (-4℉~158℉)
Weight24.69oz
Dimension7.79x4.52x1.22in
ConditionNew

Diag Mate MERCURY is a powerful, portable tablet designed specifically for use with Mercury marine engines. It features a sleek industrial design and a high-performance quad-core processor. The tablet's 5.0-inch capacitive touchscreen provides users with a professional and intuitive diagnostic experience.

Functions:

  • Operates on Android 5.1.1.
  • Simple, intuitive menu guidance for easy equipment operation.
  • Offers complete diagnostic functions, including code reading, clearing, data streaming, action testing, settings, and coding.
  • Flexible and fast menu selection for more convenient use.
  • Records and plays back real-time data to quickly and accurately locate sensor and component faults.
  • Wi-Fi connectivity enables one-click software updates.
  • One-click remote assistance from OBDSTAR technical support.

Advanced Functions:

  • The OBDSTAR mobile app integrates features like diagnostic socket location, flash code queries, technical bulletins, service lamp reset, basic parameters, and more, working with ISCAN for accurate and efficient marine diagnostics.
  • Multiple data display modes, including text, waveform, and instrument diagrams, make fault analysis easier.
  • Supports special functions like Device Configuration, Maintenance Notification Settings, and more.

Diagnostic support series

1. Support all models in G3, including DFI 2, Optimax, Seapro, Verado, 40HP-300HP Engines and other models;

2.The support modules include but no limited to Engines (DIESEL and Gasoline), Joystick, Lever and Helm Control Module, Lever Configuration, Service System, Thrust Vector Control Module and other modules

Additional Satellite Receiver
Audio Satellite Receiver
AutopilotBow Thruster
Connected Vessel Device
Diagnostic Tool
Electronic Compass
GPS Receiver
Generator
Helm Autopilot Trackpad
Helm Device Display Gauge
Helm Mercury NMEA Gateway
Helm PORT Command Control Module
Helm PORT Inner Command Control Module
Helm PORT Inner Legacy System Monitor
Helm PORT Inner System Monitor
Helm PORT Inner System Tachometer
Helm PORT Legacy System Monitor
Helm PORT System Monitor
Helm PORT System Tachomete|
Helm STBD Command Control Module
Helm STBD Inner Command Control Module
Helm STBD Inner Legacy System Monitor
Helm STBD Inner System Monitor
Helm STBD Inner System Tachometer
Helm STBD Legacy System Monitor
Helm STBD System Monitor
Helm STBD System Tachometer
Helm Smart Multiplexer
Helm Steering Wheel
Helm System Speedometer
Helm Autopilot Trackpad
Helm Device 1 Display GaugeHelm Device Display Gauge
Helm Mercury NMEA Gateway
Joystick Module
NAVMAN Gateway
PORT Engine
PORT Inner Engine
PORT Inner Thrust Vectoring Module
PORT Inner Transmission Control Module
PORT Thrust Vectoring Module
PORT Transmission Control Module
Remote Joystick Module
Replicator
STBD Engine
STBD Inner Engine
STBD Inner Thrust Vectoring Module
STBD Inner Transmission Control Module
STBD Thrust Vectoring Module
STBD Transmission Control Module
Security Device
Smart Sensor - AirMar
SmartCraft Authentication Device
Stern Thruster
Trackpad
Vessel Control Module
VesselView Link
VesselView Mobile
Aux Joystick
Cruise Interface Module
Helm PORT CCM
Helm PORT INNER CCM
Helm PORT Outer CCM
Helm STBD CCM
Helm STBD INNER CCM
Helm STBD Outer CCM
Helm PORT Inner uX
Helm PORT uX
Helm STBD Inner uX
Helm STBD uX
PORT INNER SIM
PORT Inner TCM
PORT Inner TVM
PORT Inner uX
PORT Outer Engine
PORT SIM
PORT TCM
PORT TVM
PORT uX
STBD INNER SIM
STBD Inner TCM
STBD Inner TVM
STBD Inner uX
STBD Outer Engine
STBD SIM
STBD TCM
STBD TVM
STBD uX

Downloads:

ISCAN MERCURY (MARINE) COVERAGE 20240830
ISCAN SERIES (MARINE) User Manual

Accessories:

Function Display-(From OBDSTAR Mobile App)
1) Main Page

2) Diag Socket/Diag Connector Location

Function Display-(From ISCAN)
1) Main Page/Brand Supported

2) Data Flow Text/Waveform Diagram/Instrument Diagram

3) Special Functions

Questions & Answers 2 answered

Ask a question

We can't confirm that the iScan Mercury will diagnose a 2026 Mercury 15hp outboard, so we'd recommend verifying before purchasing. According to OBDSTAR's official documentation, the tool's engine coverage centers on the Mercury G3 platform — DFI 2, Optimax, Seapro, Verado, and the 40HP–300HP range. A 15hp outboard falls below that stated range, and smaller portable outboards also vary in whether they provide a diagnostic connector the tool can communicate with, so support is not guaranteed.

The 2026 model year is also very new. OBDSTAR expands iScan Mercury coverage through software updates released roughly monthly, so the newest engines and model years are not always included right away.

The most reliable way to confirm is to check OBDSTAR's official supported-models list for the iScan Mercury, found under the "Function Manual" section on the OBDSTAR product page (https://www.obdstar.com/Products_356....), which is updated at the end of each month. For a definitive answer on your specific engine, you can also contact OBDSTAR directly with your exact engine model and serial number. Because the included M060 cable connects to the standard Mercury diagnostic plug, you'll also want to confirm your 15hp uses that connector rather than one requiring a separate adapter.

Answered by KEY4 Support on 24 Jun 2026

Yes. The OBDSTAR iScan Mercury (Marine) Intelligent Diagnostic Tool ships as a complete kit that includes all three of those accessories. The standard package contains the iScan Mercury tablet (the main device), the M001B main cable, the M060 Mercury adapter cable, and the 12V2A charger. These are exactly the items shown in the accessories section of the product page, so they are included with the tool and do not need to be purchased separately.

The M060 is the adapter for the standard Mercury diagnostic connector, which is why it comes in the box with this Mercury-specific tool. One thing worth knowing: certain Mercury, Mercruiser, and Mercury Diesel platforms use different diagnostic connectors that require additional adapter cables — for example, the M064 (Mercury 2+4), M072 (Mercruiser), or M078 (Mercury Diesel). Those extra adapters are not part of the standard package and are sold separately. If your engines use a connector other than the standard Mercury plug covered by the M060, you may need to add the matching adapter.

Answered by KEY4 Support on 23 Jun 2026
