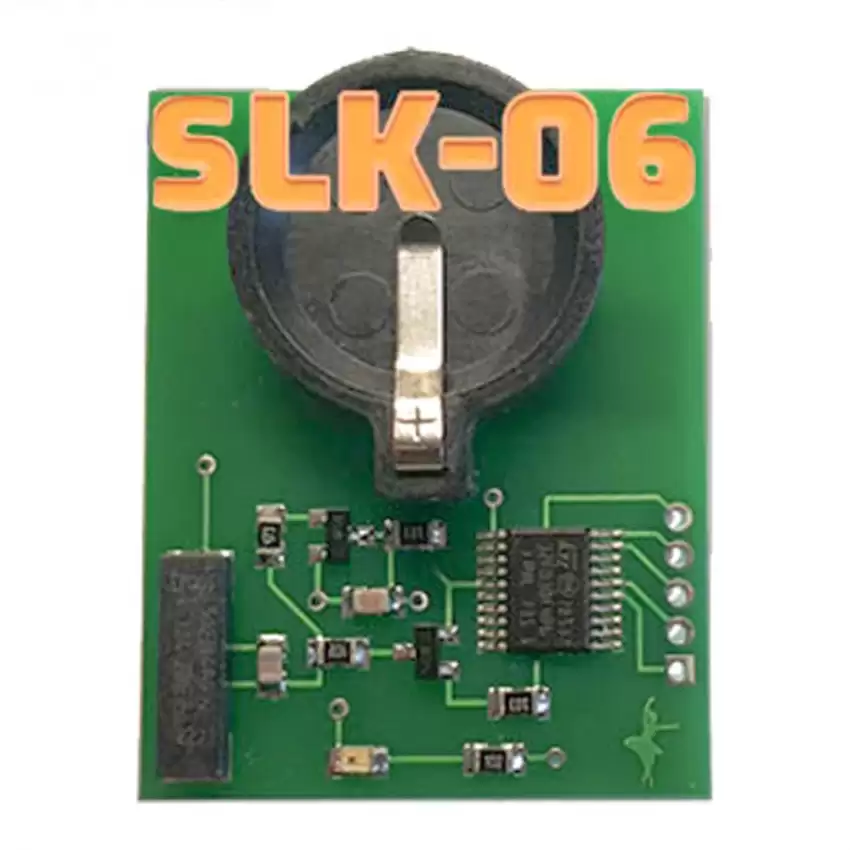

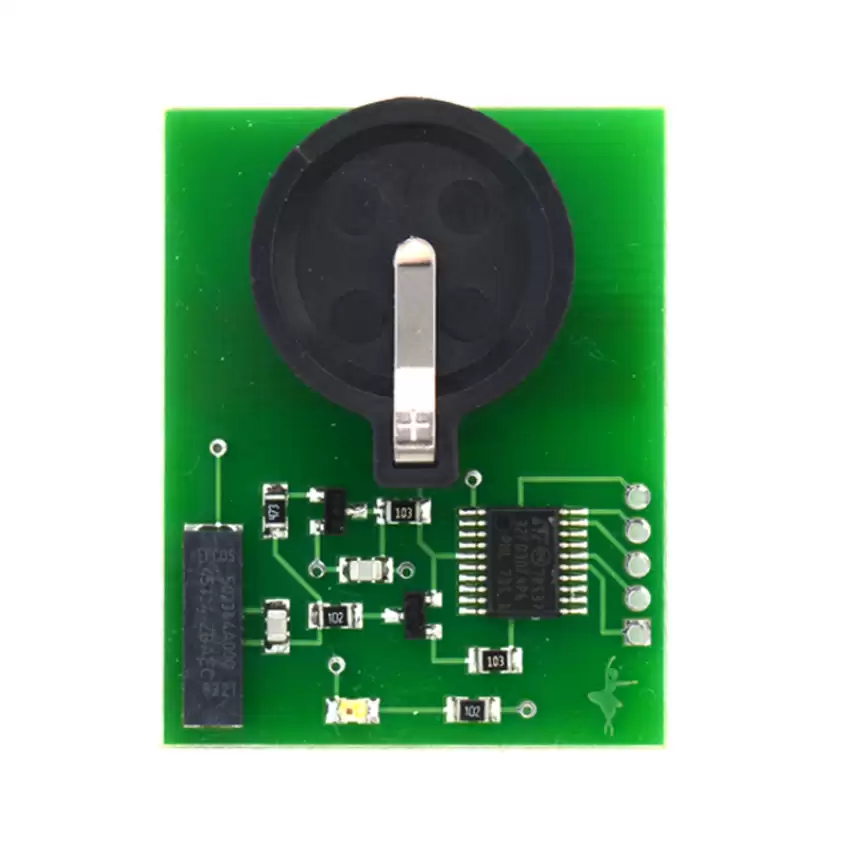

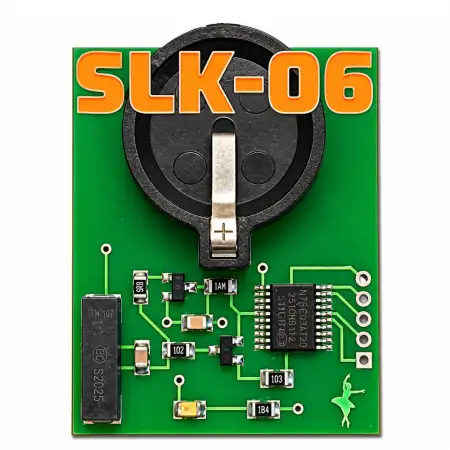

Scorpio-LK SLK-06 Toyota H Immobilizer Sniffer for Tango - All Keys Lost

Scorpio-LK SLK-06 Toyota H Immobilizer Sniffer for Tango - All Keys Lost-0 thumb
EM-TAN-SLK06

Scorpio-LK SLK-06 Toyota H Immobilizer Sniffer for Tango - All Keys Lost

$34.50

ConditionNew

The Scorpio-LK SLK-06 is a sniffer used with Tango to solve All Keys Lost on Toyota vehicles equipped with the 128-bit H immobilizer system (Page1 39, 59, 3A, 5A), regardless of market (EU/Asia/USA).

SLK-06 captures data at the ignition, Tango sends it to Scorpio-LK’s servers for online calculation, and the result is written to an LKP-04 transponder. The LKP-04 becomes a master key that can be used to add more keys diagnostically with a Toyota-compatible diagnostic system (Techstream, etc.). The immobilizer does not need to be replaced or reset, and vehicle data is not altered.

How It Works

  • Obtaining data (sniffing): SLK-06 is held next to the ignition while a blank key blade (no transponder) switches the ignition on
  • Calculation: Tango uploads the captured data for online calculation - from 6 minutes up to several hours
  • Master key creation: the result is written to a blank LKP-04

Compatibility

  • Model: SLK-06
  • Toyota 128-bit H immobilizer, Page1 39, 59, 3A, 5A
  • Supported systems are “First Generation H Immobilizer” - MCU marked 11910
  • H systems with MCU marked 12xxx are not supported; Page1 20 is not supported

Important: Scorpio-LK states that roughly 50% of vehicles with H immobilizer can be done with this system, and supported vehicles cannot be classified by model, year, region or part number. Most 1st Gen vehicles are 2013–2014.

Requirements

  • Tango programmer with an active Tango annual subscription (Toyota maker, SLK-06 maker and Toyota Image Generator H functions)
  • LKP-04 transponder (sold separately)
  • Internet connection
  • Any metal key blade that fits and can turn the ignition on
  • Battery: CR1616, CR1620 or CR1632 — not included, obtain locally

Battery Information

Removing the battery before the data is uploaded erases the captured data. Once Scorpio-LK’s servers receive the data, SLK-06 is no longer needed and the battery can be removed.

Package Contents

  • 1 × Scorpio-LK SLK-06 sniffer

Battery and LKP-04 transponder not included.

Official Documentation

Official SLK-06 documentation: https://www.scorpio-lk.com/downloads/Tango/slk-06_help.pdf

Scorpio-LK SLK Emulators: https://scorpio-lk.com/tango.html#slkemulators
