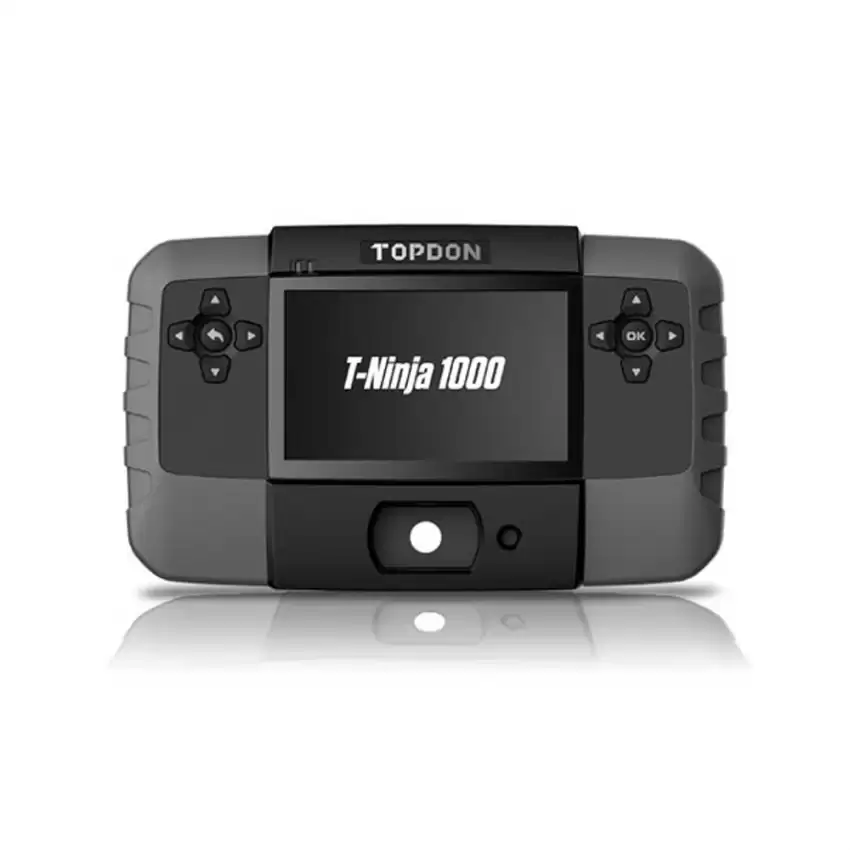

TOPDON T-Ninja 1000 OBD Key Programming Tool Automotive Immobilizer System

TOPDON T-Ninja 1000 OBD Key Programming Tool Automotive Immobilizer System-0 thumb
TOPDON T-Ninja 1000 OBD Automotive Key Programmer thumb
T-Ninja 1000 OBD Key Programming Tool Automotive Immobilizer System by TOPDON for Key Generation, PIN Reading, Key Learning thumb

TOPDON T-Ninja 1000 OBD Key Programming Tool Automotive Immobilizer System

$499.00Was $695.00 (Save 28%)
Operating SystemRt-thread
CPUARM Cortex-M4, 180MHz
Display5.0” TFT LCD, 800*480 Resolution
Memory256M RAM, 128M ROM, 16G Micro SD
MaterialABS Plastic Shell, Silicone Button Starting time: ≤3S
OBD InterfaceOBD-II 16PIN
Buzzer85db / min at10cm
Current500mA (typical)
Input VoltageDV 12V
Power Consumption1.8W (typical)
Battery350mAh Button Battery (not rechargeable)
Working Humidity≤95% RH
Working Voltage12V ± 25%
Working Temperature14℉ - 131℉ ( 10°C - 55°C
Dimensions231.5*141.5*35mm (9.11*5.57*1.38 inches)
Weight480g (16.93oz)
Shipping Dimensions17
Shipping Weight 7 LBS.

As the newest addition to the TOPDON family of highly advanced smart diagnostic tools, TOPDON Ninja 1000 serves as the OBD key programming tool for the automotive immobilizer system. An array of powerful features including Key Generation, PIN Reading, Key Learning, Remote Learning, Key Deletion, All Keys Lost, and more, are all covered.

With its real-time guided operation, immense online database, robust hardware, and intuitive software, you now have an effective and easy-to-use key programming machine for automotive locksmiths and technicians alike.


  • Cost-effective; low price to meet the economic crisis and pay for itself in just one use.
  • Support most vehicles in North America, and some Japanese brands and growing.
  • Practical and money-making functions: Read Pin Code, All Keys Lost, Add and Erase Keys and more.
  • Step-by-step guidance through a series of functions.
  • Read Pin Code for most vehicles.
  • Online Technical Assistance Center with a constantly updated database.
  • Regular updates for supported vehicles and future vehicles.
  • All by OBD, no soldering, no EEPROM

Download Brochure from Here
List of Supported Vehicles

What Package Contains:

  • T-NINJA 1000 Tablet
  • Diagnostic cable
  • USB 2.0 Micro SD Reader
  • Power Adapter
  • USB Cable
  • Quick-Start Guide
  • Blow Molded Storage Case

This key programmer is specially designed to cover most-commonly used locksmith functions for highly reliable, timely and affordable services, with surprisingly low price:

  • Competitive price with features that rivals some advanced locksmith tools;
  • 1-year free update service for counting features and vehicles covered.
  • Only 249$/year subscription fee after the expiration.

It is great investment that has undoubtedly paid for itself in just one use. It will give you the opportunity to simplify and expand your business, and to bring in new business with the help of our expertise and information.

  • Integrated RFID Induction Slot
  • Reduce human error
  • Data detected instantly
  • Matched with device database
  • Huge online database
  • Easy to use guided interface
  • Step by step procedures

Online database form information

All the information needed to program a key is collected at the TOPDON T-Ninja 1000 Technical assistance Center, always updated and immediately available. It widely covers over 5,000 vehicle model details with information as follow:

  • Vehicle information (region, make, model, year, photo etc.).
  • Key information (key type. Chip ID, Frequency, photo)
  • Key programing instructions (supported devices, pin reading, remote programming, videos for training, photos for OBD port Location, key sensing Area etc., Programming tips).

Who is it designed for?

Relaying on TOPDON’s strong technical background, this OBD key programmer provides all necessary functionalities for:

  • Professional mechanics.
  • Novice locksmith.
  • Automotive technicians.

To solve the key programming issues alike.

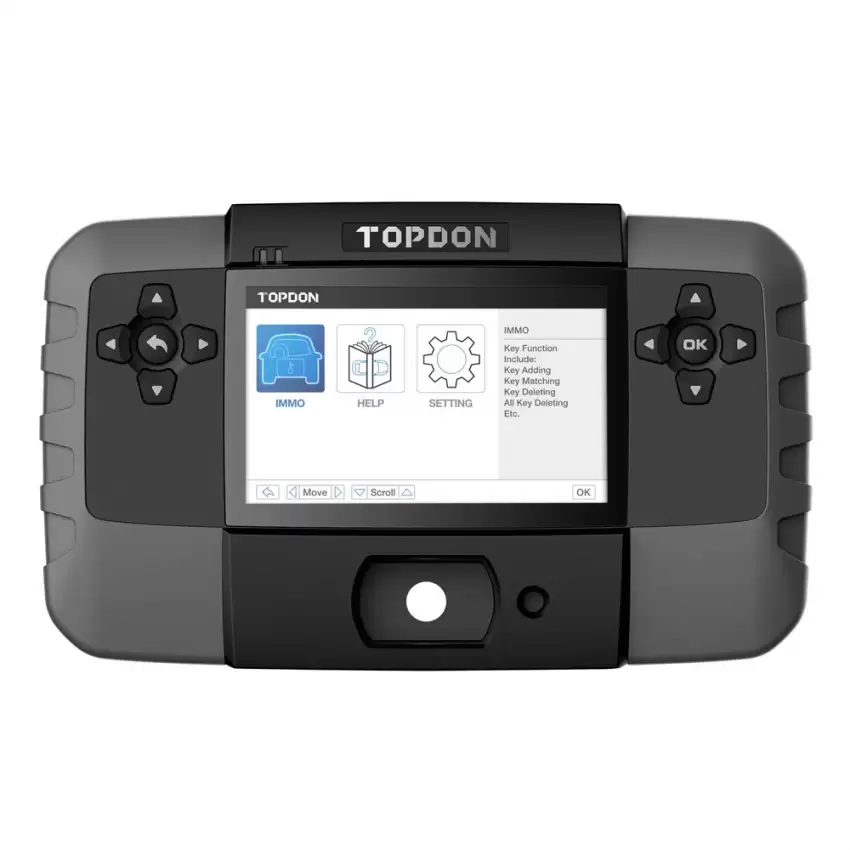

Easy-to-use guided interface

Experience frustration-free key programming with the built-in guided Tips & Hints. You will enjoy simple step-by-step procedures at your fingertips with the TOPDON T-Ninja 1000. The tool provides advice and suggestions for carrying out all the programming procedures in the most streamlined method, without going through a lengthy or complex process.

Cover 95% vehicle coverage

The results show that T-Ninja 1000 has covered most mainstream car brands in the U.S. as ford (Lincoln, Mercury etc.) GM (Buick, Cadillac, Chevrolet, GMC, etc.), Chrysler (Chrysler, Dodge, Jeep) and many Japanese brands.

Extensive field testing by our technicians in North America insure a much more reliable tool than many competitors in the industry.

  • Asia: Toyota, Lexus, Scion, Honda, Acura, Nissan, Infiniti, Hyundai, Kia, Mazda, Mitsubishi, Suzuki, Subaru, Suzuki, Subaru, Isuzu, Ssangyong.
  • America: Chrysler, Dodge, Jeep, Ford, Lincoln, Mercury, Chevrolet, Buick, GM, Cadillac, Hummer, GMC.
  • Europe: EU Ford, Fiat, Opel, Jaguar, Land Rover, SAAB, Maserati.
  • Others: Au Ford, Holden, Mahindra, TATA, Maruti, Suzuki.
