Xhorse VVDI Key Tool Plus Pad Full Configuration Advance Version

Important License Note
Please note: BMW Motor OBD, BMW Bench Read ISN and MQB48 require separate activation licenses — these three licenses must be purchased and activated to use the corresponding functions.

Xhorse VVDI Key Tool Plus — All-in-One IMMO Programmer & Locksmith Tablet

Powerful. Portable. Proven.
The Xhorse VVDI Key Tool Plus is an all-in-one tablet designed for professional locksmiths and diagnostic technicians. It combines advanced IMMO programming, transponder and remote cloning, and seamless control of Xhorse key-cutting machines — all from a rugged, pocketable Android tablet. Save time on the job, leave the laptop behind, and handle everything from dealer-level IMMO work to everyday remote cloning with one tool.

Key Tool Plus Full Advantages

1. VVDI Key Tool Plus provides an all-in-one security solution for locksmiths. It makes completing various automotive programming jobs much easier anywhere — no laptop or phone required.
2. Supports IMMO programming for luxury cars such as BMW, Mercedes-Benz, Audi, VW, etc.
3. Can control Xhorse key cutting machines, greatly reducing cost and simplifying workflow. When bound with an Xhorse key cutting machine you can earn one free BGA token every day.
4. ID48 96-bit calculation and Mercedes key password online reading require tokens, but both can use Xhorse bonus points. Copying ID48 96-bit uses 100 points; Mercedes password calculation uses 200 points.
5. Uses the most advanced application processor in VVDI Key Tool Plus, with integrated Bluetooth, FM, WLAN and GPS modules — a highly integrated baseband platform that combines modem and application processing for excellent connectivity. This super processor improves overall performance for simultaneous voice, data and audio/video transmission.
6. Works with the new solder-free adapter set for Audi add-key and all-keys-lost procedures.
7. Latest update (Sep 2021) adds support for Ford All Key Lost up to 2020 while alarm is ON using an extra Ford All Key Lost cable — no need to repeatedly power off.
8. Supports 8A smart key programming when used with the Xhorse Toyota 8A Smart Key Adapter.
9. New repair function released for Porsche 12V lithium battery—supports Porsche models from 2018–2020.

New — IMMO Programming Elevated Capability

• Fiat Viaggio / Ottimo 3-button Smart Key — Generate dealer key; add key and all-keys-lost.
• Jeep Renegade Flip Key MQB48 — Add key and all-keys-lost.

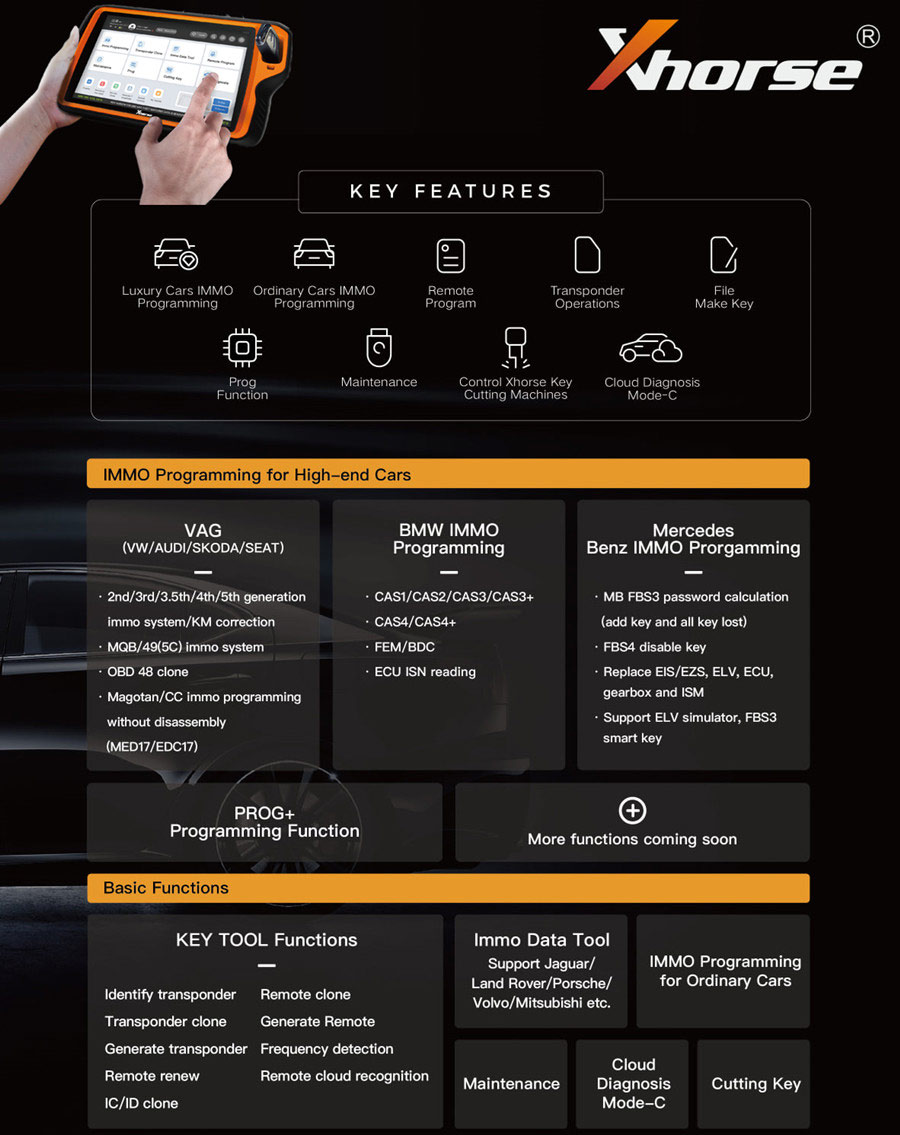

Key Tool Plus Functions

1. IMMO Programming

Supports Benz, BMW, Audi, VW and many common brands — Toyota, Honda, Mazda, Ford, etc.
KEY TOOL PLUS supports over 20,000 car models worldwide. You can select brand and model from the IMMO programming interface and search by brand area, brand name, or A–Z.

VW & Audi:

• 3rd / 4th / 5th generation immo systems
• MQB / 49(5C) immo systems
• MED17 / EDC17 support
• OBD 48 clone
• Magotan/CC immo programming without disassembly (MED17/EDC17)
• Newest update: supports VVDI VW 5C (MQB48) — license required.

BMW IMMO Programming:

• CAS1 / CAS2 / CAS3 / CAS3+ / CAS4 / CAS4+ OBD key learning
• FEM / BDC key programming
• File Make Key, ECU ISN reading, ECU & CAS synchronization

Benz IMMO Programming:

• MB FBS3 password calculation (add key and all-keys-lost)
• FBS4 disable key
• Replace EIS/EZS, ELV, ECU, gearbox and ISM
• Support ELV simulator and FBS3 smart key

Other supported models: Toyota, Honda, Mazda, Ford, Cadillac, Land Rover, Peugeot, Kia, Buick, Chevrolet, Volvo, Mitsubishi, Nissan, Suzuki, etc.

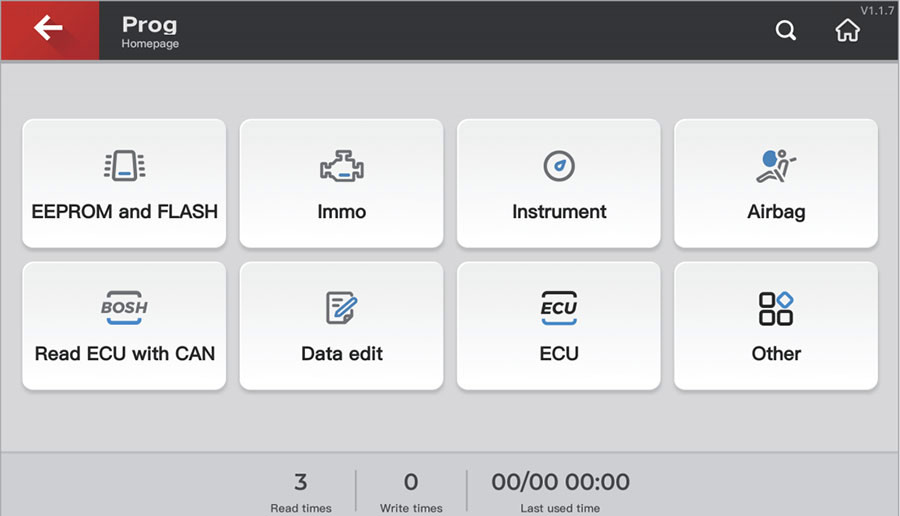

2. Prog Function

• Support BMW immo module programming (CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, FEM).
• Support Land Rover RFA reading & immo programming.
• Support Porsche BCM programming.
• Support ECU reading with CAN on Audi, BMW, Volkswagen.
• Support instrument programming on Honda, Kia, Hyundai.
• EEPROM read & write: supports many common memory types (ATMEL, Mitsubishi, Winbond, Catalyst, ST, XICOR, Microchip, SEIKO, Xhorse, MXIC, Toshiba, etc.).

3. Transponder & Remote Function

Transponders

• ID46 online calculation
• ID48 (96-bit) online calculation (uses tokens/bonus points)
• Toyota H (8A) online calculation
• Generation & cloning for over 850 car models
• Special transponders, older models and unique chips supported

Remotes

• Remote generation, smart key generation, frequency detection, remote cloning
• HCS / fixed code cloning, non-HCS rolling code clone, fix code editing
• Pt22xx, LX918, HT6P20, VD5026, AX5326, HT12x fix code editing

Special functions

• Remote renew, VVDI Super Chip settings, VVDI special TP, unlock Toyota smart key, detect remote, VVDI remote repair calibration, VVDI smart key clone/custom, remote battery charge detection, Honda cycle key renew, 8e remote upgrade/unlock, XM smart key customization, Toyota smart key frequency setting

4. IMMO DATA TOOL (File Make Key)

Some programming and settings can’t be completed via OBD due to immobilizer protections. File Make Key generates a car key via an immo data file: read the immo data with a specific device, generate a boot transponder, and start the car without matching the original. (On some models you may need to rewrite data to the immo box during programming.) KEY TOOL PLUS supports File Make Key for many car models and motorcycles.

5. Control Xhorse Key Cutting Machines

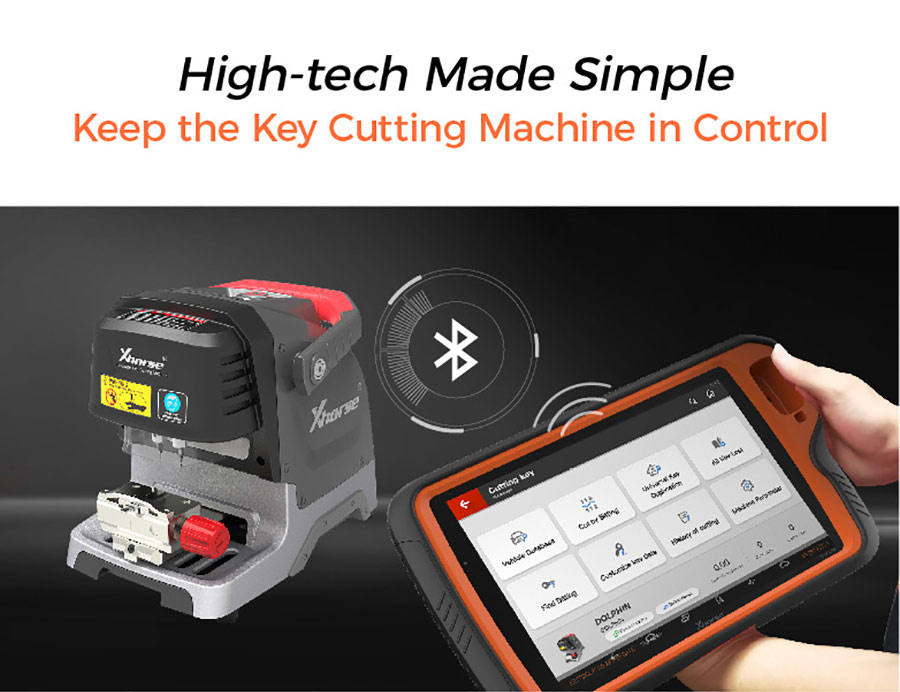

Use KEY TOOL PLUS as the operator screen for Xhorse Condor, Dolphin and Panda key cutting machines — freeing your mobile phone and integrating workflows.

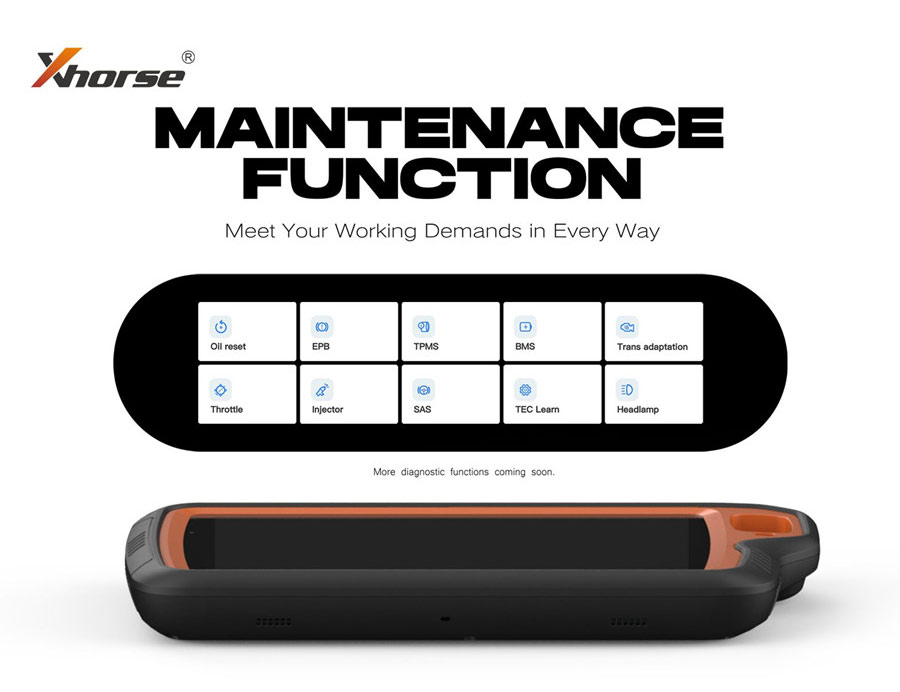

6. Maintenance Function

Supports common maintenance tasks and some diagnostic functions: Oil Reset, EPB, TPMS, BMS, transmission/engine adaptations, Throttle, Injector, SAS, learning functions and more. (More diagnostic functions planned.)

7. Cloud Diagnosis Mode-C

Start Cloud Diagnosis C mode to generate a local C-terminal ID and send it to a remote service provider. The remote (B-terminal) uses that ID to connect for programming, coding, matching, maintenance and remote diagnosis. (Requires Cloud Smart integration; feature availability may vary.)

Key Tool Plus Features (hardware & protocols)

• Support DOIP
• Support CAN-FD
• OBD matrix switch and CAN/K protocol switch pin
• Chip pin detection
• Toyota smart key programming without simulator (where supported)
• Long-distance IMMO collection

Built components: OBD matrix switch, RF simulator, smart key simulator, integrated key identification coil, BENZ IR reading head.

Processor & Specs

Processor: 4× Cortex-A53 up to 2.3GHz + 4× Cortex-A53 up to 1.8GHz
Memory / Storage: 4GB + 128GB
Resolution: up to FHD+ (2400 × 1080)

VVDI Pad Parameters (summary):

• CPU: 8-core 2.0GHz
• RAM/ROM: 4G / 128G
• OS: Android 9.0
• Screen: 10.1" HD anti-glare, anti-fingerprint (FHD+ supported)
• Rear camera: 13MP
• Battery: 10000mAh, 30W fast charge
• Bluetooth: 5.0; Wi-Fi: 2.4G / 5G

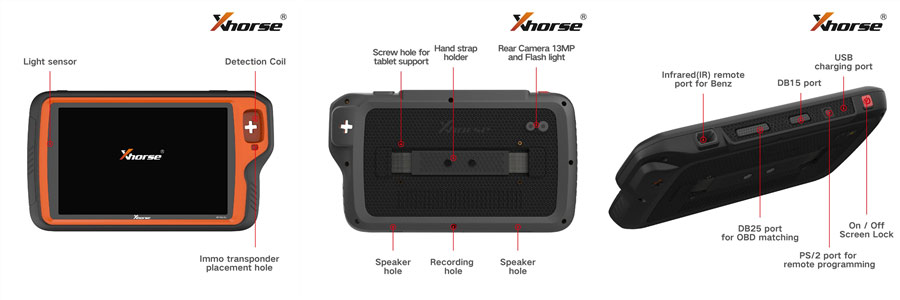

Tablet Structure & Ports

• Light sensor (ambient brightness detection)
• Detection coil (125k low / 13.56M medium / 300–900M high frequency)
• Immo transponder placement hole
• USB Type-C charging port (supports fast charging)
• PS/2 port for remote programming
• DB15 port for standard & optional programming adapters
• DB25 port for OBD matching
• Benz IR port for reading Benz FBS3 / FBS4 smart keys

Supports reading, writing and cloning common IMMO transponders and IC transponders, plus frequency detection for vehicle remotes.

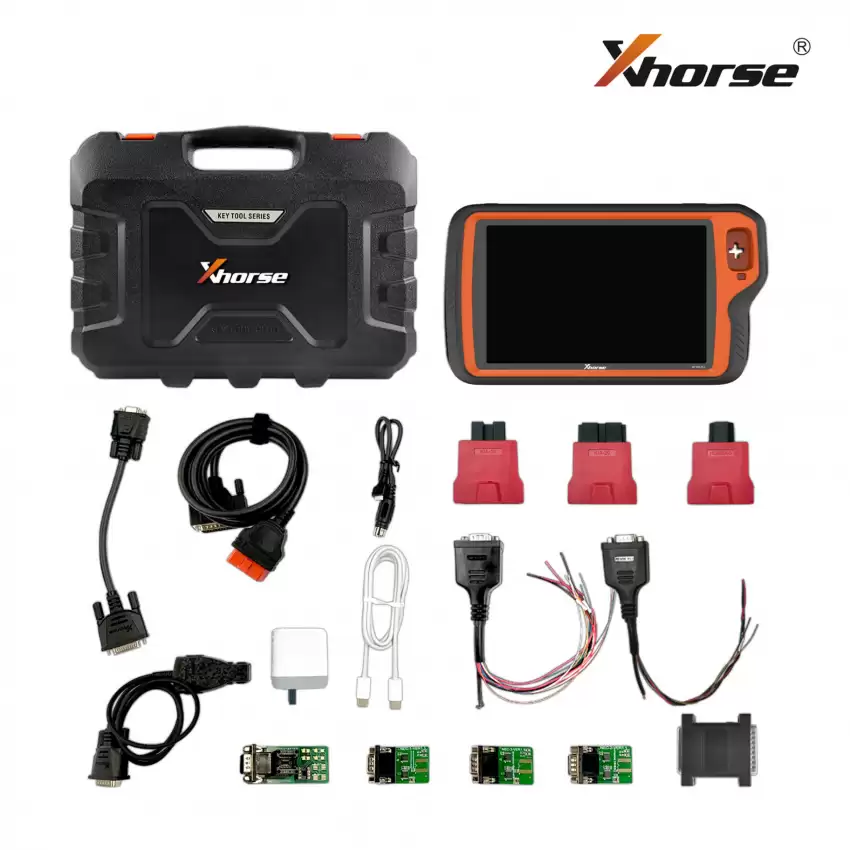

Package List

• 1 × VVDI Pad Main Unit
• 1 × User Manual
• 1 × Power Adapter
• 1 × USB 3.0 Type-C Cable
• 1 × OBD DB25 Cable
• 1 × OBD to Kia 10-Pin Connector
• 1 × OBD to Honda 3-Pin Connector
• 1 × Remote Programming Cable
• 1 × Chip Storage Container
• 1 × Prog DB15 Cable
• 1 × Prog EEPROM Adapter
• 1 × MB IR Adapter
• 1 × MB NEC1 Adapter
• 1 × MB NEC2 Adapter
• 1 × MB NEC3 Adapter
• 1 × MB Power Adapter
• 1 × MC9S12 Reflash Cable
• 1 × ECU Cable

Important License Note
Please note: BMW Motor OBD, BMW Bench Read ISN and MQB48 require separate activation licenses — these three licenses must be purchased and activated to use the corresponding functions.
