Xhorse VVDI MB BGA Power and Gateway Adapter W204 W212 W164 W210

Weight 0.464oz
Xhorse Part Number XDMB10EN
Condition New
Size 0.04 x 0.24 x 1.57 in
Color Black
  • Need to purchase separately
  • Optional Item
  • W204, W20: fast data acquesition
  • W164, W216: Insertion free
  • W164, W209 and W211: gateway emulation function

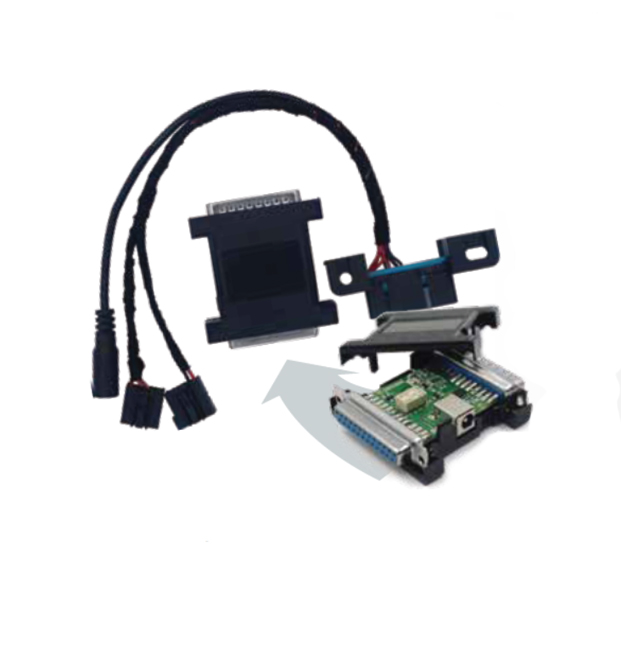

VVDI MB TOOL power adapter works for FBS3 type all key lost and gateway emulation; supporting C class, E class, CL, CLK, ML, GL, GLK mobile models and etc,..VVDI MB TOOL power adapter requires only 18 minutes to do data acquisition for W204 and W207 all key lost. It will cost 150 minutes for data acquisition without this adapter. This adapter makes the data acquisition more efficient by saving almost 2 hours. (150 minutes->18 minutes).
VVDI MB TOOL power adapter for W216, W164 2009- all key lost data acquisition does not require countless plug-in andunplug of the IR adapter. More than 500 times of plug-in and unplug of the IR adapter are needed if the VVDI MB TOOL power adapter is not in use. Working efficiency has been highly increased. (500 times->insertion free).
|VVDI MB TOOL power adapter supports gateway emulation function. Even without real gateway, users can use this adapter to OBD communicating with W164, W164 2009-, W209 and W211 (requires special connection cables).
VVDI MB TOOL power adapter will keep updating more functions.

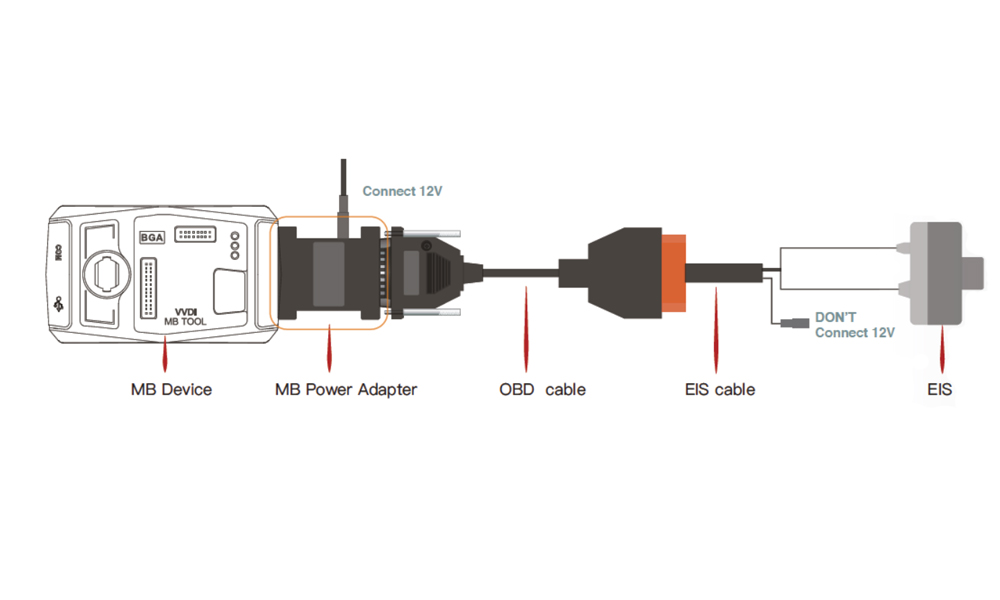

How to connect & use VVDI MB Tool Power Adapter:
