XTOOL Chrysler / Dodge / Jeep 2018+ Bypass Cable

XTOOL Chrysler / Dodge / Jeep 2018+ Bypass Cable

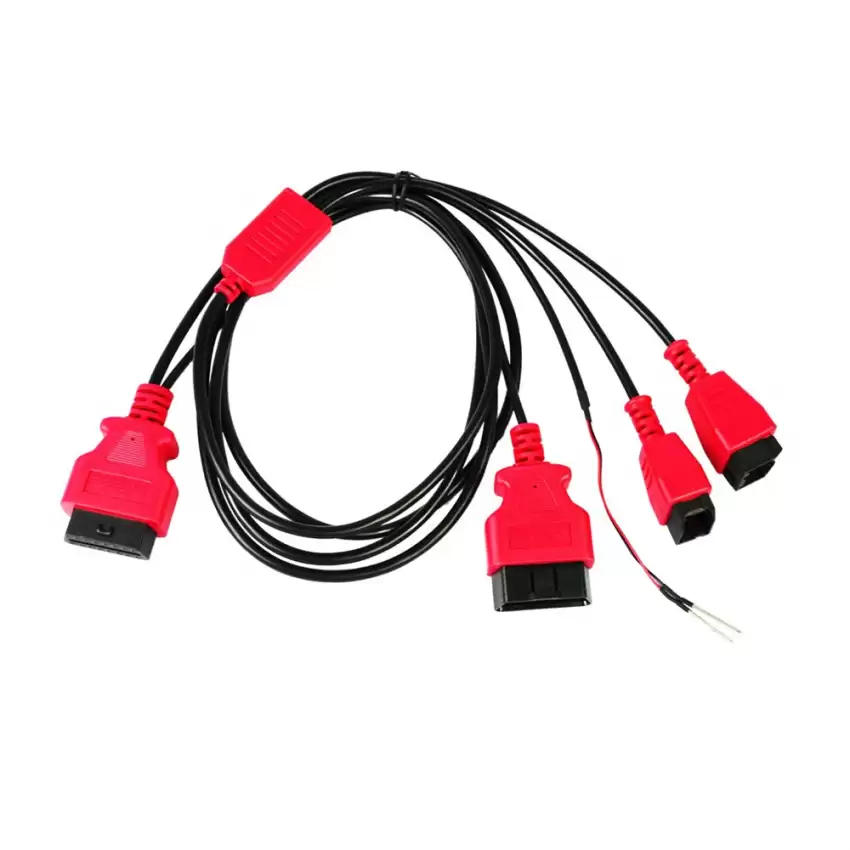

The Chrysler/Dodge/Jeep 2018+ bypass cable by XTOOL is designed to interface with almost all automotive transponder programmers that can program 2018+ Chrysler vehicles. It works by intercepting your programmer's CAN high and low signals and passing them through the attached probes and 12+8 connectors.

Depending on your plan of attack, you can tap the CAN wires directly at the STAR module, in the instrument cluster, or at the wires that carry information between the STAR module and the immobilizer. The OBD throughput feeds 12V back to your programmer to keep it charged, if your machine supports that feature. You can also get the same result by plugging the 12+8 connectors directly into the vehicle's security gateway module.

How to use (probes):

1. Plug the main cable of your programmer into the female OBD port of the adapter.
2. Locate the STAR module on the vehicle. Location varies by model.
3. Find the green plastic strip with multiple white clips plugged into it. Locate the release lever of any one of the white clips. Probe the red lead (CAN HI) into the terminal directly below the release lever, and the black lead (CAN LO) into the terminal below that.
4. Select by vehicle or system type on your programmer and program as normal.

How to use (12+8 connector):

1. Plug the main cable of your programmer into the female OBD port of the adapter.
2. Locate the security gateway module on the vehicle. Location varies by model.
3. Unplug the connectors currently plugged into the module and plug the 12+8 connectors directly into the module.
4. Select by vehicle or system type on your programmer and program as normal.

Note: The male OBD of the adapter is optional. Its only purpose is to pull power. If your machine is battery operated, the male OBD is not needed.
