XTOOL M821 Mercedes Benz All Key Lost Communication Adapter

The M821 Mercedes-Benz All Keys Lost Communication Adapter is used for programming Mercedes-Benz EIS modules in an all-keys-lost situation. Get the job done in half the time, in addition to reducing the amount of times you'll need to insert and remove the key emulator!

When the M821 Mercedes-Benz Adapter and the KC501 IR reader/writer are combined with your AutoProPAD G2 or AutoProPAD G2 Turbo, you can easily extract the EZS/ EIS key password which will allow you to program Infra-Red keys to DAS2/ DAS3 (FBS2/ FBS3).

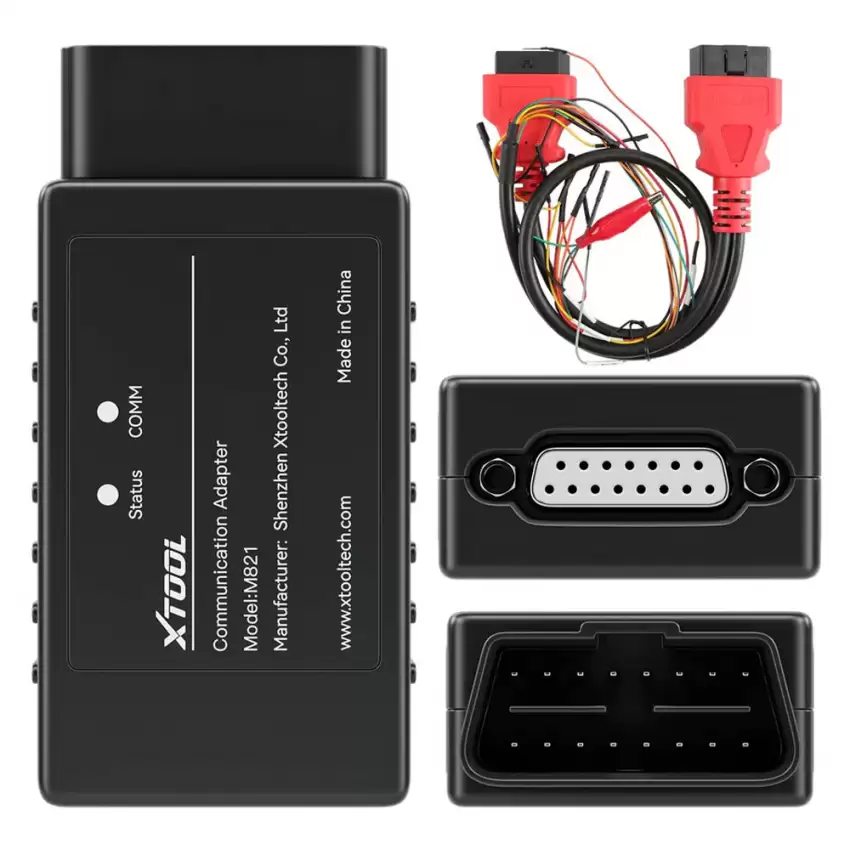

M821 Adapter Description

1. OBD-16 port: Used to connect to J1Z02_BENZ communication cable or connect to EIS/EZS modules via DuPont cables.
   Caution: Don't connect to the OBD port on the car directly.

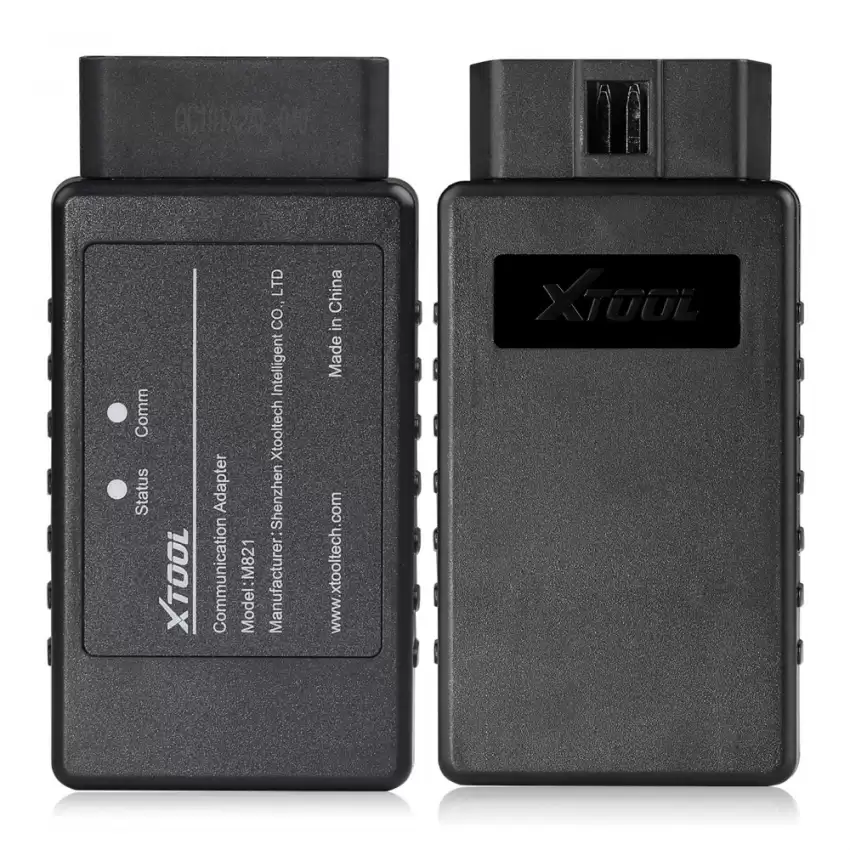

2. Status Light: This shows the power status of the adapter. When the red lights are on, that indicates the power is on.
3. Comm Light: This shows the communication status of the adapter. When the blue lights are on, that indicates the adapter is communicating with the tablet.

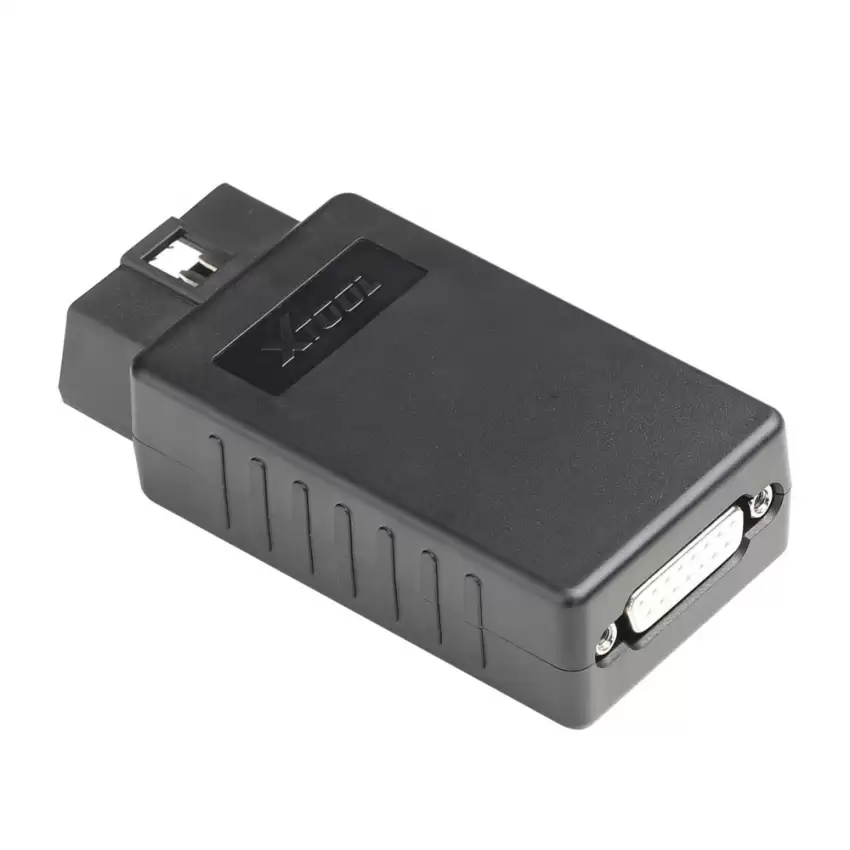

4. DB15 port: Used to connect to the main cable of XTOOL tablets.
   Note: Before connecting to M821 Adapter, please disconnect the OBD2-16 connector from the main cable.

Supported EIS Modules:
W164 (Old)
W166
W204
W212 (new)
W164 (new)
W216
W221
W211

Accessories Needed:
Xtool KC501

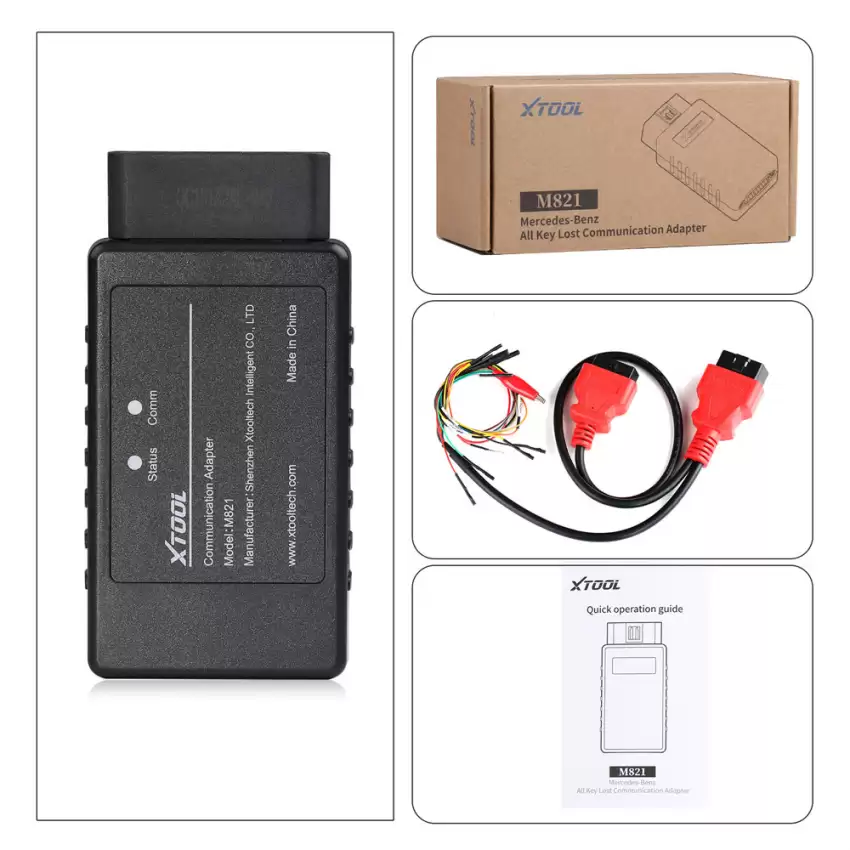

 Package List

• M821 Mercedes-Benz AKL Adapter

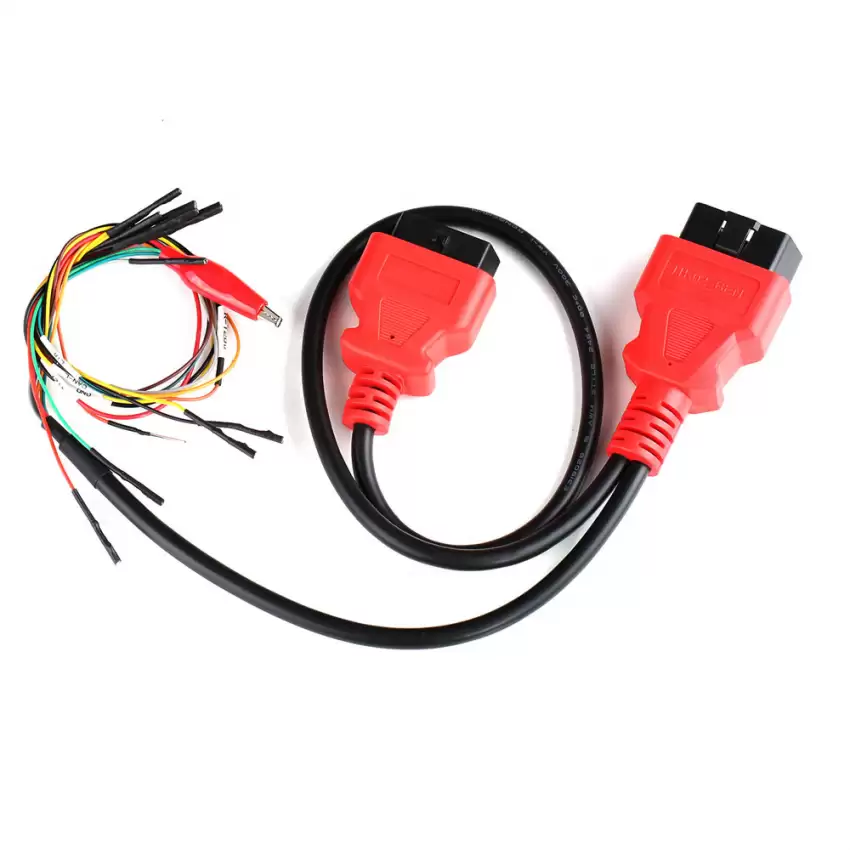

• J1K02_BENZ Wiring Harness
• M821 Quick Guide
