Yanhua BMW ID8 Special CAN Filter for G-Series Full LCD Cluster Mileage Correction
Yanhua ACDP / ACDP Adapters & Cables
The Yanhua BMW ID8 Special CAN Filter is the dedicated plug-and-play solution for locking in mileage corrections on BMW G-chassis ID8 full LCD instrument clusters. After you correct the mileage with a YH35XX programmer and 35128WT/35160WT simulator, the IMMO module would normally sync the original value back to the cluster – this filter blocks that sync so your work sticks.
Key features
- Plug-and-play installation – no soldering required
- Prevents the vehicle's IMMO module mileage from syncing back to the ID8 cluster
- NO black screen, NO red dots after installation
- Does NOT affect the start-stop function
- Does NOT affect maintenance / service mileage

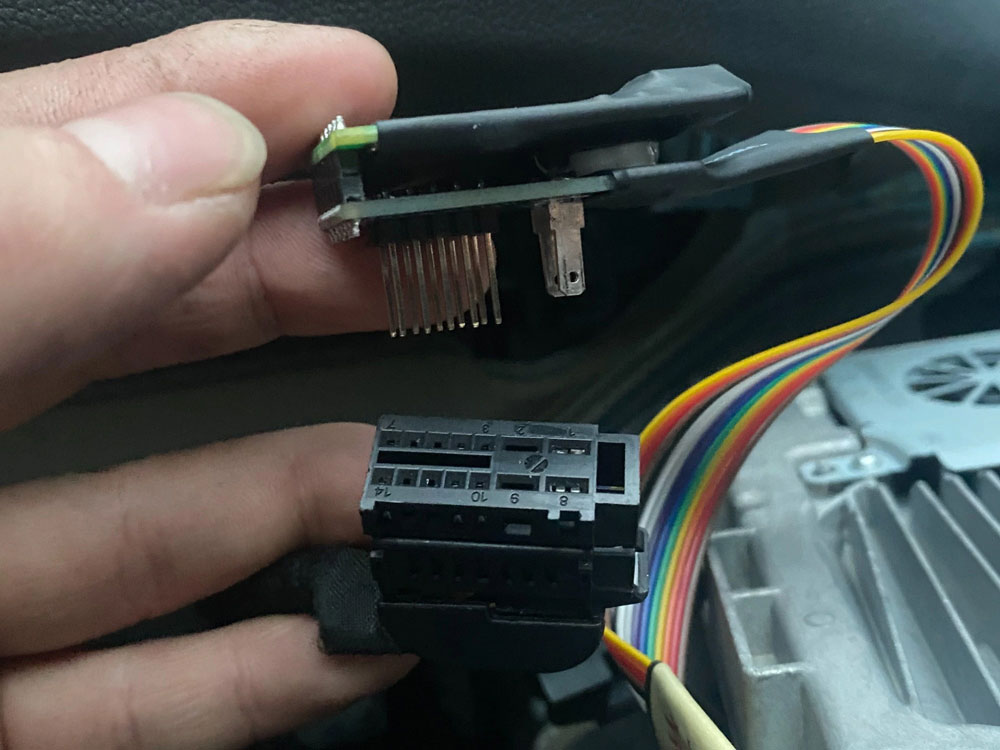

- Simple, safe and reliable – just plug into the cluster connector
Supported models
- BMW 3 / 4 / 5 / 7 Series (G chassis, ID8 full LCD cluster)
- BMW X5 / X6 / X7 / XM (G chassis, ID8 full LCD cluster)
- Other G-chassis BMWs equipped with the ID8 instrument
Important notes
- Supports the ID8 cluster ONLY – it does NOT support the newer ID8.5 cluster
- For the actual odometer change, use the Yanhua YH35XX Programmer + 35128WT / 35160WT Simulator
Typical workflow
- Remove the instrument cluster module
- Remove the 35128WT / 35160WT chip from the module
- Use the YH35XX programmer to read the original chip, write it to the emulator and set the target mileage
- Solder the emulator chip back onto the instrument module

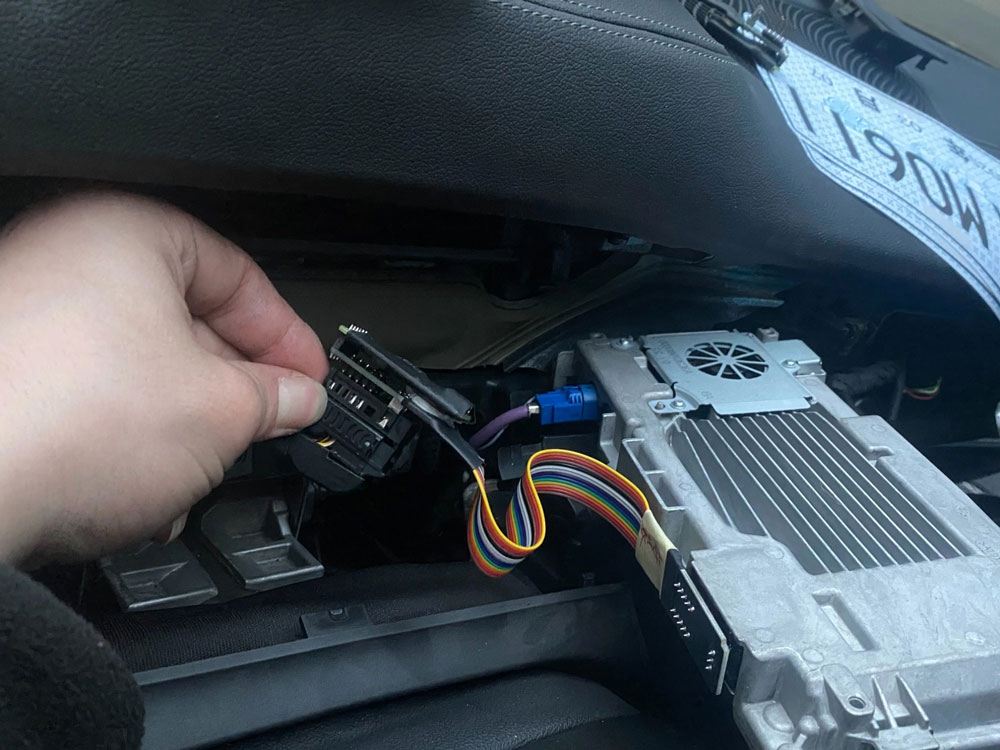

- Plug the ID8 filter into the cluster connector – done
What's in the box

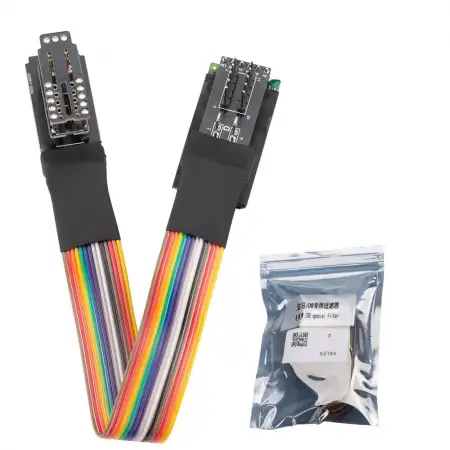

- 1 x Yanhua BMW ID8 Special CAN Filter
