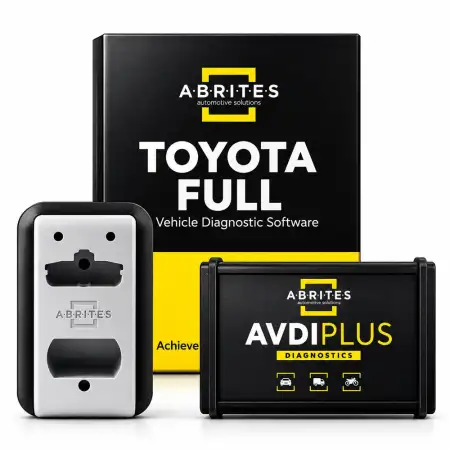

Abrites Full Software and Hardware Bundle for Toyota and Lexus
.jpg){kind=small}
.jpg)
.jpg)
| Product type | Software and hardware bundle |
| Function | Key programming (spare and all keys lost), ID Code Box reset and adaptation, cluster calibration |
| Vehicle makes | Toyota, Lexus |
| Software included | TN017, TN022, TN023 |
| Hardware included | AVDI Plus, ZN103 PROTAG, ZN039, ZN069, TA64, TA68, CB012, CB029, CB031 |
| Requires | Active AVDI annual subscription (AMS) to use the licences |
| Availability | Hardware ships; software delivered electronically |
Abrites / Key Programmers
The Abrites Full Software and Hardware Bundle for Toyota and Lexus is the complete all-in-one kit for Toyota and Lexus work. It combines the AVDI Plus interface and the PROTAG programmer with the full Abrites Toyota software range and every emulator and cable Abrites includes to complete the procedures — one order instead of twelve, priced below the cost of buying the items separately.
What you can do with it
- Key programming — spare key and all keys lost on proximity-key Toyota and Lexus models with Tokai Rika (HT-AES) or Denso (DST-AES) smart systems, including the latest 2025+ models with B6 keys
- ID Code Box reset and adaptation on all Toyota and Lexus models up to and including 2024 — for ID Code Box, Smart System, ECU and hybrid module replacement
- Instrument cluster calibration on locked and unlocked S6J3 clusters and fully digital RH850 clusters, by OBD or internal CAN — no need to open the module
What’s in the bundle
Software licences
- TN017 ID Code Box Reset and Adaptation for Toyota and Lexus
- TN022 Dashboard Calibration for Toyota and Lexus
- TN023 Key Programming for Toyota and Lexus incl. 2025+ B6 keys
Interface and programmer
Emulators and adapters
- ZN039 Toyota transponder emulator
- ZN069 Toyota mechanical key (H-type) adapter set
- TA64 HITAG-AES emulator
- TA68 DST-AES transponder emulator
Cables
- CB012 direct CAN-BUS / LIN-BUS connection cable set
- CB029 direct CAN connection extension cable
- CB031 extension cable for the Toyota / Lexus smart system (B9 / BA)
Good to know
- All keys lost on 2025+ B6-key models also needs the ZN085 RH850/V850 Programmer, which is not included in this bundle.
- Keys are sold separately — for example the TA71 BA-type key for Toyota.
- The software licences need an active AVDI annual subscription to run. Licences are delivered electronically.
- Already have an AVDI and PROTAG? The TN00F Full Software Package for Toyota, Lexus and Scion gives you the same three licences on their own.
