Abrites Full Software and Hardware Bundle for VAG
| Function | MQB key programming and mileage calibration, BCM2 CS reading, parts adaptation, component protection |
| Requires | Active AVDI annual subscription (AMS) to use the licences |
| Availability | Hardware ships; software delivered electronically |
Abrites / Key Programmers

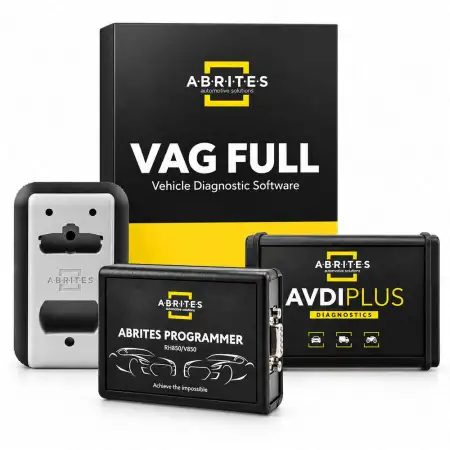

The Abrites Full Software and Hardware Bundle for VAG is the complete all-in-one kit for Volkswagen, Audi, Skoda, Seat and Lamborghini work. It combines the AVDI Plus, PROTAG and ZN085 RH850/V850 programmer with the full Abrites VAG software range and every VAG adapter Abrites includes for it — 17 items in one order, priced well below the cost of buying them separately.
What you can do with it
- MQB Immo 5C all keys lost and spare keys (approx. 2019–2026, VDO and JCI CryptoCore RH850 clusters), dealer key preparation, and ECU / TCU replacement
- MQB mileage calibration on VDO and JCI / Visteon dashboards 2012–2026 (Immo 5A–5D), plus Immo 5A / 5B key programming and module replacement
- Locked BCM2 CS reading — all keys lost on Audi A4 / A5 / Q5 2008–2016 and spare keys on A6 / A7 / A8 / Touareg 2010–2018, on the bench with no soldering
- Parts adaptation — read and update immo data (PIN, CS, MAC) for ECUs, TCUs, ESL and dashboards, and component protection sync
- Component protection removal and module replacement on Lear-gateway Audi A6 / A7 / A8, VW Touareg (2010–2017) and Lamborghini (4S0)
- Immo 3 / Immo 4 ECU and TCU adaptation with the EM003 emulator when the donor PIN and CS cannot be read
What’s in the bundle
Software licences
- VN002 Parts Adaptation Special Function for VAG
- VN017 Component Protection Manager for VAG
- VN020 CS Manager for Locked BCM2 Modules
- VN025 MQB 5C All Keys Lost and Module Replacement
- VN026 MQB Mileage Calibration and Key Learning Immo 5A/5B
Interface and programmers
- AVDI Plus vehicle diagnostic interface
- ZN103 PROTAG key and transponder programmer
- ZN085 RH850/V850 Programmer
- ZN130 ABPROG Programmer Set
- ZN151 Distribution Box Set
VAG adapters and emulator
- ZN080 BCM2 solder-free connection set
- ZN040 Audi A6 / A7 / A8 CAN adapter
- ZN059 VAG VDO cluster adapter
- ZN060 VAG Micronas cluster adapter (new-style connector)
- ZN061 VAG Micronas cluster adapter (old-style connector)
- ZN074 ECU reading set
- EM003 Immobiliser parts emulator for VAG
Good to know
- Some procedures use extra cables that are not included: the CB503 NCF cable and CB012 direct CAN-BUS cable set for some VN025 jobs, and the CB032 DCM6.2 cable for Delphi DCM6.2 ECU work with VN002 / VN025. Ask us and we will add them.
- The software licences need an active AVDI annual subscription to run. Licences are delivered electronically.
- Already have the hardware? The VN00F Full Software Package for VAG gives you the same five licences on their own.
