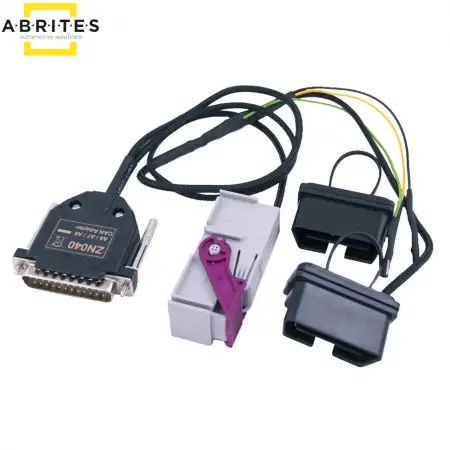

Abrites ZN040 Audi A6 / A7 / A8 CAN Adapter

The Abrites ZN040 A6 / A7 / A8 CAN Adapter is used when performing all-keys-lost procedures on the Audi A6, A7 and A8 from 2011 with BCM2.

The adapter provides every connection the job needs in one piece, rather than a handful of separate leads:

• CAN separator — connects to the vehicle's internal CAN bus for reading the ECU and TCU
• LIN connector (green wire) — connects to the internal LIN bus for reading the ELV
• OBDII connector — used to force ignition on
• B+ connector (yellow wire) — connects to B+ when reading the ECU and TCU through the CAN separator
• GND connector (black wire) — connects to ground when reading the ECU and TCU through the CAN separator

What you need: an AVDI with an active annual subscription.

Hardware warranty is one year from the date of purchase, covering defects in materials and workmanship under normal use.
