Abrites ZN085 RH850/V850 Programmer

Abrites ZN085 RH850/V850 Programmer-0 thumb
Abrites ZN085 RH850/V850 Programmer | KEY4 thumb
Abrites ZN085 reads and writes locked RH850 and V850 processors on bench — no trace cutting, no pin lifting. Unlocks mileage, cluster and key work. thumb
Abrites ZN085 RH850/V850 Programmer - PD-ABR-ZN085 p-2 thumb
PD-ABR-ZN085

Abrites ZN085 RH850/V850 Programmer

$599.00

  • New Arrival

The Abrites RH850/V850 Programmer (ZN085) is the tool for reading data from vehicle modules fitted with locked RH850 or V850 processors, which appear across a large number of automotive brands. It is a bench tool and is soldered to the module to connect — BCM, virtual cockpit or instrument cluster, or handsfree module.

No trace cutting required. No pin lifting required.

Functions: reading and writing locked V850 processors, and reading and writing locked RH850 processors.

What the recovered immo data allows

  • Mileage calibration
  • Cluster exchange
  • Key programming

Once the module is read, a long list of procedures opens up. The programmer reads Component Security bytes, Component Protection bytes, vehicle identification numbers, MAC addresses and learned key IDs on VAG vehicles, as well as the PIN code on Renault vehicles.

Supported V850 and RH850 processors

  • VDO MQB analogue V850 70F3525, 70F3526, 70F3532 and 70F3537, and VDO MQB virtual cockpit V850 70F3526
  • JCI MQB analogue V850 70F3525(A), 70F3529 and 70F3532, including the 70F3532 rev2
  • VDO MQB virtual RH850 R7F701401 (with Megamos-AES keys)
  • VDO MQB analogue RH850 R7F701402 (with Megamos-AES keys), R7F701407 and R7F701414
  • VDO MQB analogue RH850 R7F701401 (no immo data)
  • Visteon/JCI analogue RH850 R7F701404 and R7F701405, and Visteon/JCI RH850 R7F701406
  • ELV V850ES 3624
  • Hyundai and KIA dashboard RH850 1401 and 1421
  • Renault handsfree module (HFM) RH850 1019, 1025 and 1042; Renault BCM RH850 1056 and 1057
  • Fiat BCM R7F701057
  • Ford BCM RH850 1053 and 1573
  • Mercedes-Benz IC177 instrument cluster RH850 1403, and IC177M / IC223 instrument cluster RH850 1529
  • More being added continuously

If you come across a version of one of these processors that differs from the list, Abrites asks to be told — specify the exact processor version, or send the module in so the team can look at adding support.

Licences required by procedure

  • VN021 — mileage recalibration, key programming and dashboard exchange on VAG vehicles with RH850 and V850 processors
  • VN022 — mileage recalibration on VAG MQB non-ImmoV dashboards (Golf 8 generation) with RH850
  • VN023 — mileage recalibration on VAG MQB Visteon/JCI dashboards with RH850
  • RR026 — all-keys-lost key programming on Renault vehicles with an HFM/BCM module
  • NN010 — all-keys-lost key programming on Nissan vehicles with an HFM/BCM module
  • FR011 — key programming on Ford vehicles from 2021 with V850 processors
  • FN024 — key programming by RH850 dump on FCA vehicles
  • HK013 — cluster calibration on Hyundai and KIA vehicles
  • MN037 plus the ZN092 adapter — cluster calibration on Mercedes-Benz IC177 dashboards using the Visteon R7F701403
  • MN038 plus the ZN092 adapter and EM019 emulator — cluster calibration on Mercedes-Benz IC177M / IC223 dashboards using the Visteon R7F701529 BGA

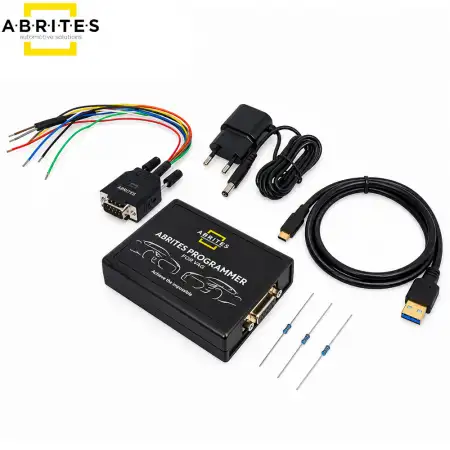

What's in the set: the RH850/V850 Programmer itself, the CB501 RH850/V850 connection cable, the ZN083 5V/2A DC power adapter and the CB107 USB A-C cable — each of which can also be bought separately if you need a spare.

Attach sales: the CB503 NCF cable is sold separately and is required for NCF key work on BMW, Audi, Volkswagen, Škoda and Porsche. This programmer is also the hardware prerequisite for the VN021, VN022, VN023, RR026, NN010, FR011 and FN024 licences.

An AVDI interface with an active annual subscription is required to complete these procedures. Hardware warranty is two years from the date of purchase, covering defects in materials and workmanship under normal use.
