AccuReader For Kawasaki Motorcycles KW15

AccuReader For Kawasaki Motorcycles KW15-0 thumb

AccuReader For Kawasaki Motorcycles KW15



This Set designed to read the actual depths for each space in any of the KW15 locks. Comes with directions and a handy storage container.

This system will allow you to read the KW15 ignition completely and accurately without the removal of the ignition. It takes only minutes to read the depths for each cut in each position for a complete key. The AccuReader works on the process of elimination to decipher the correct depths of the lock. By checking the deepest cut first you eliminate what the cuts are not. Therefore it is essential to always read depth slide #4 first.

The AccuReader key is designed to be used for wafer positions 4-7 on one side of the key and wafer positions 1-3 on the opposite side of the key. All seven positions can be read from the 4-7 side of the key, however it is recommended to flip the key over and use the 1-3 side. This allows for reading the 1-3 wafer positions with a fully or almost fully inserted key, increasing the accuracy.

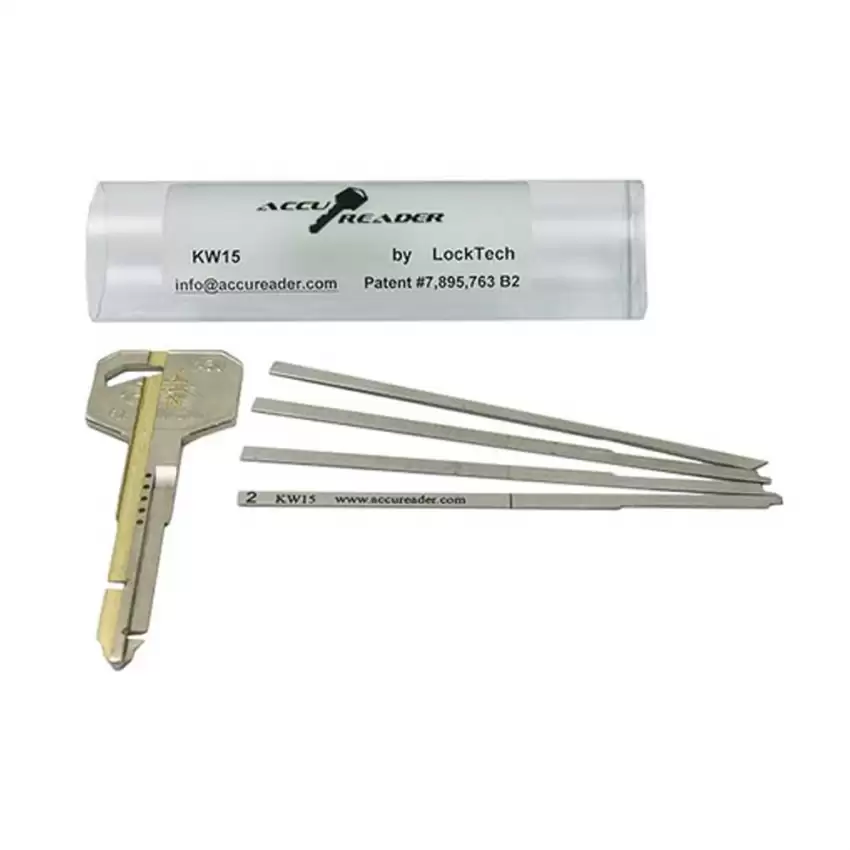

Package Contents:

  • 1-AccuReader key
  • 1-insertion/release slide
  • 1-depth slide #4
  • 1-depth slide #3
  • 1-depth slide #2
  • 1-Tube storage container
  • 1-Tube Cap

KW15 Compatibility List

  • Kawasaki KLX250 2009+
  • Kawasaki ZX6 1993-2002
  • Kawasaki ZX7 1993+
  • Kawasaki ZX9 1993+
  • Kawasaki ZZR600 2003+
  • Kawasaki Vulcan Nomad 2001-2004
  • Kawasaki Vulcan Drifter 2001+
  • Kawasaki Vulcan Classic 2001+
  • Kawasaki Vulcan 900 2005+
