Autel MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner

Autel MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner-0 thumb
MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner AUTEL thumb
Autel MaxiTPMS TBE200 Laser-Enabled Tire Tread Tread Depth & Brake Disc Examiner  thumb
Autel MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner - TPMS-AUT-TBE200  p-2 thumb

Autel MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner

$374.95Was $495.00 (Save 24.5%)

Recommended UseIndoor
Processor4x ARM Cortex-A35 (1.5 GHz)
Display1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
ConnectivityWi-Fi, USB 2.0, Type C
CameraCMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio OutputOutput: Beep
Power and Battery3.7 V/3000 mAh 18650 lithium-ion battery, Charges via 5 V AC/DC power supply
Tested Battery LifeAround 8 hours of continuous use
Battery Charging Input5 V/1.5 A
Power Consumption300 mA (AMOLED on with default brightness) @3.7 V
Operating Temperature-10 to 45°C(14 to 113°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)283.0 mm (11.14
Net Weight188 g (0.41 lb.)

The MaxiTPMS TBE200 is an advanced tire tread depth and brake disc wear examiner equipped with laser technology, ensuring swift and precise wear measurements. Users can accurately gauge brake disc wear without the need to remove tires, streamlining maintenance procedures. With its full-color graphical display, the TBE200 provides visual representations of wear and offers detailed replacement and service recommendations, encompassing tire and brake disc replacement as well as tire rotation and 4-wheel alignment.

Featuring a 1.65” AMOLED Super Retina touchscreen display, the TBE200 allows users to document tire wear and damage effectively. Its 4-megapixel macro camera and 8-megapixel zoomable camera facilitate scanning of Tire Identification Numbers (TIN) and capture detailed images for analysis.

The TBE200 can be utilized independently or in conjunction with compatible Autel TPMS tablets, enabling users to view and print comprehensive TPMS reports. Backed by a one-year limited warranty, the TBE200 ensures reliability and accuracy in tire and brake maintenance tasks.


  • Tire Tread and Brake Disc Wear Examiner
  • Laser-Enabled; No Need to Remove Tire
  • 1.65” AMOLED Super Retina Touchscreen Display
  • Full Color Graphical Display Illustrates Wear
  • Compatible with Passenger, Commercial and Off-road Vehicles
  • Displays Recommendations for Tire and Brake Disc Replacement, 4-wheel Alignment and Tire Rotation
  • 4-megapixel, 4 cm Macro Camera and 8-megapixel Zoomable Camera to Document Tire Damage
  • Tire health report QR code for easy sharing
  • Work Alone or with New MaxiTPMS ITS600 Tablet
  • Scan Tire Identification Number (TIN)
  • 3000 mAh Lithium-Ion Battery

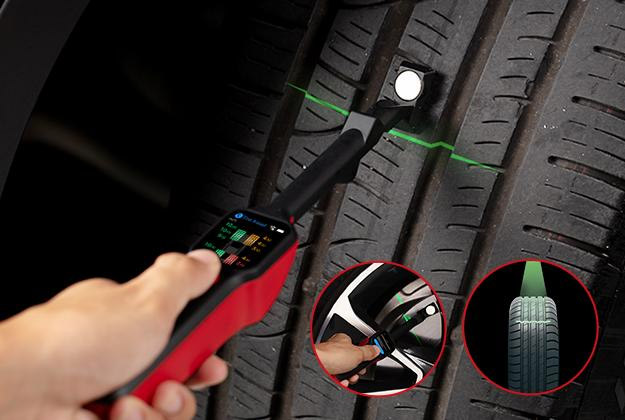

Laser Measurement
  • Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
  • Laser measurement with 0.1mm accuracy
  • Full tread measurement
  • Quick Check both tread depth & brake disc

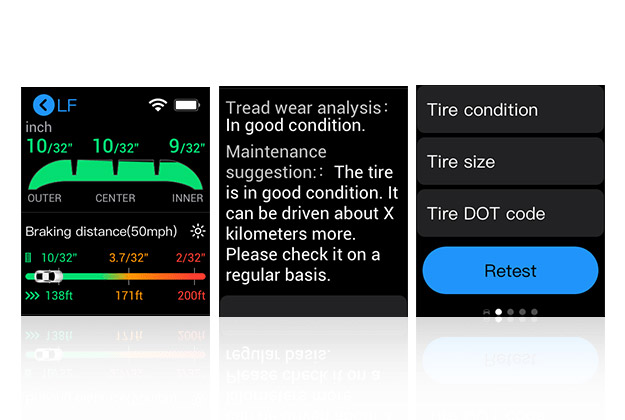

Real-Time Tire Health Analysis

  • Real-time measurement data on touchscreen
  • Measurement data curve display
  • Uneven wear analysis
  • Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
  • Scan DOT, tire expiration notice, tire recall lookup
  • Take photos of tire wear & damage

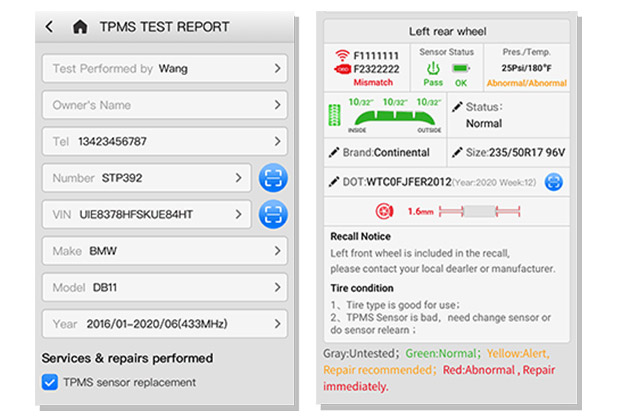

Comprehensive Test Report
Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics (Requires ITS600)

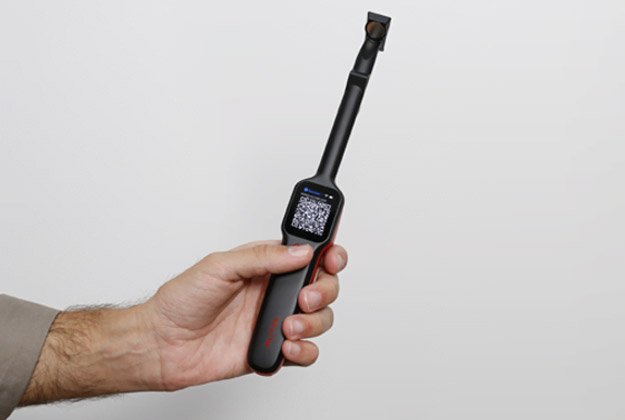

Easy to Use QR Code Report Download & Sharing

Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.


MaxiTPMS TBE200 User Manual
MaxiTPMS TBE200 Quick Reference Guide
ITS600 & TBE200 Quick Start Guide
MaxiTPMS TBE200 TBE100 Comparison
MaxiTPMS TBE200 & TBE100 Sales Flyer

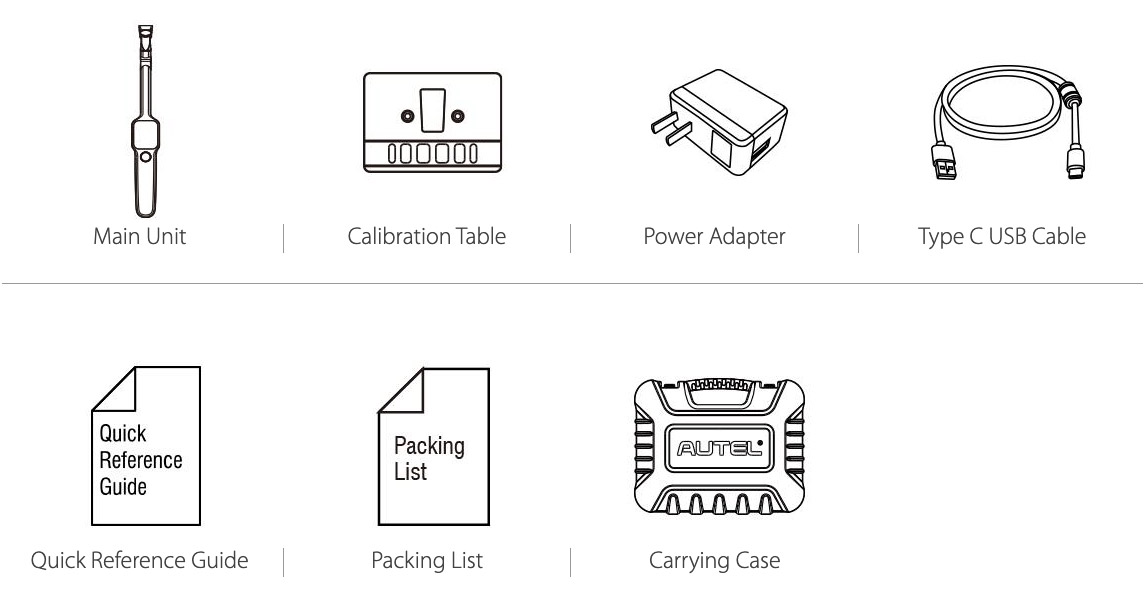

What's Included:
