GODIAG ECU GPT Boot AD Connector for ECU Reading Writing No Need Disassemble
| Condition | New |
Godiag / Adapters
The GODIAG ECU GPT Boot AD programming adapter is designed to assist customers in reading and writing ECU data without the need for disassembling the ECU. It supports multiple methods, including the OBD2 Bench or GPT Bench method, as well as the Boot method involving disassembly. The adapter comes with a BOOT resistance board connection line, resistant to short circuits, providing protection for the ECU during use. Users can utilize this product in conjunction with J2534 devices and PCMFlash software for effective ECU operations.
The GODIAG ECU GPT Boot AD ECU Connector comes with various features and functions designed to facilitate ECU reading and writing without the need for disassembling. Here is a summary of its key features and functions:
Features:
- GPT Support: Enables reading and writing data without disassembling the ECU using the GPT method.
- BOOT Method Support: Allows reading and writing data using the ECU opening BOOT method.
- OBD2 Mode Support: Supports ECU conversion to OBD2 mode for reading and writing data.
- Anti-Lost Resistor Design: Equipped with a BOOT resistance board connecting cable to prevent loss.

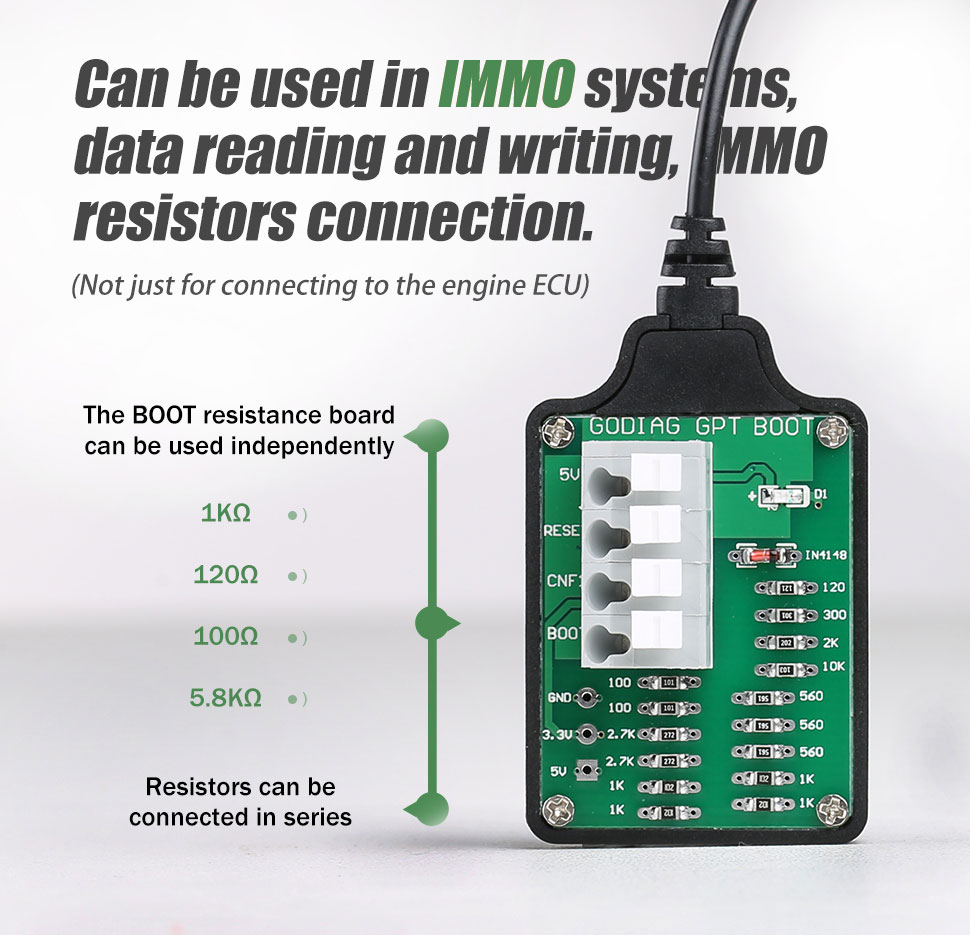

- Multi-Purpose Support: Provides terminals for RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
- Power Supply Control: Supports PCMFlash automatic control of ignition power supply and manual ignition power control.
- CANbus Switch: Equipped with a switch for selecting the 120Ω resistor on CANbus freely.
- Dedicated Connection Terminal: Features an ECU-specific connection terminal for ease of use.
- Labeled Interface Cable: The ECU interface cable is labeled for convenience.
Functions:
- Diagnostic Support: Supports standard OBD2 protocol equipment for diagnostic functions.
- ECU Data Reading and Writing: Enables reading and writing ECU data, supporting J2534 devices.
- GPT Signal Formation: Specifically, Scanmatik 2 PRO for PCMflash allows the formation of GPT1 and GPT2 signals necessary to work with Module 71.
- Device Compatibility: Works with Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR, Teradyne GNA600 (VCM 1), and Mazda VCM 2 devices, supporting OBD2 or BOOT 53 mode for reading and writing ECU data.
Note: The GODIAG ECU GPT Boot AD should be used in conjunction with ECU tools and cannot be used alone.
Package Includes:

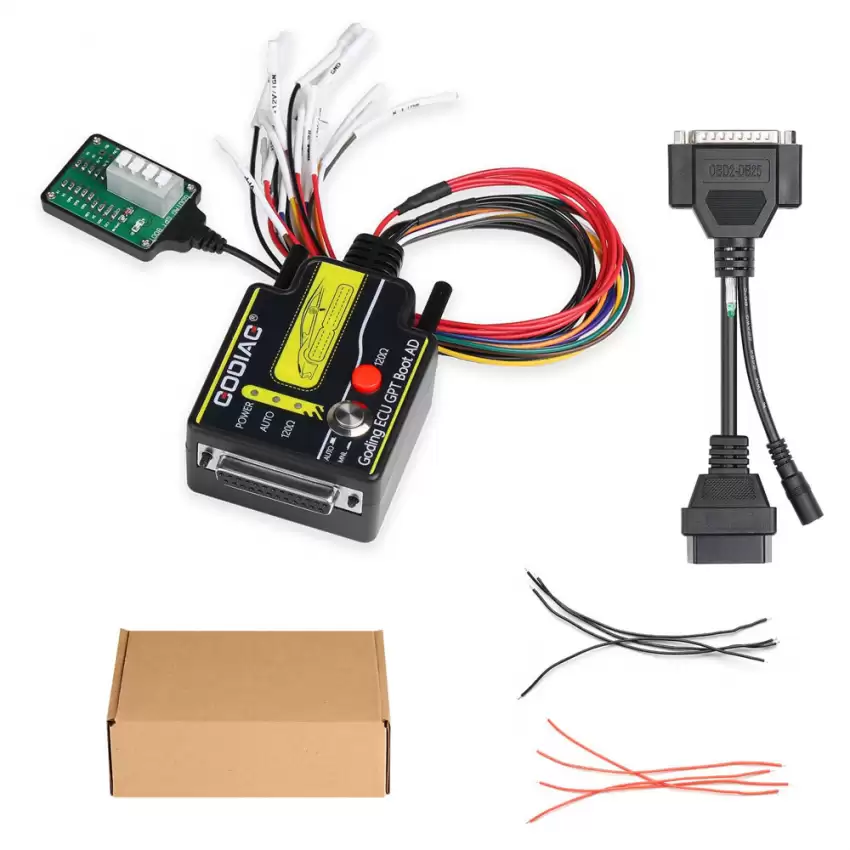

- 1pc x GODIAG ECU GPT Boot AD Programming Adapter
