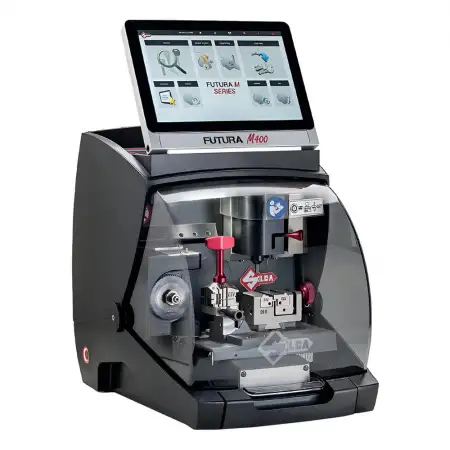

ILCO Futura M400 Electronic Key Cutting Machine
| POWER SUPPLY: Machine | 24V d.c.- 5,5 Amp. - 130W |
| POWER PACK | 90/264V a.c. - 50/60Hz - 220W |
| CUTTER MOTOR | Flat Cuts : 24V d.c. |
| AXES RUN | X axis30 mm |Y axis: 50 mm | Z axis: 27 mm |
| MOVEMENTS | on 3 axes (with special bushes) driven by step motors on rectified roller guides. |
| FLAT CUTS - PRISMATIC CUTTER | U01W, Hard Meeting with Coating |
| CLAMP: 01V | Removable | Four Universal Sides holding flat, vehicle and cruciform keys |
| DIMPLE CUTS - CUTTER | 01D, in HSS Super Rapid Steel |
| CLAMP | 01R | Removable | Provided withinterchangeable jaws |
| LASER CUTS - CUTTER | 01LW, in Carbide AICrN Coated |
| CLAMP | 01R | Removable | Provided withinterchangeable jaws |
| DIMENTIONS | width: 12.52 inches, depth: 16.26 inches, height with tablet and stand: 20.87 inches | with display closed: 14.37 inches |
| WEIGHT | 44 lb. |
ILCO / Key Cutting Machines
The ILCO Futura M400 is engineered for locksmiths and key professionals who require reliability, precision, and versatility. With intuitive software, integrated databases, and support for multiple key types, it provides a powerful all-in-one cutting solution for both residential and automotive key services.
Maximum Versatility. Professional Precision.
The Futura M400 is a professional, all-in-one electronic key cutting machine engineered to deliver precision, versatility, and ease of use in a compact footprint. Designed for modern locksmith operations, the M400 combines advanced cutting technology with intuitive software to support flat, cruciform, laser (sidewinder), and dimple keys across residential and automotive applications.
With dual dedicated cutting stations, an integrated 10” touchscreen interface, and optical decoding capability, the M400 streamlines workflow while maintaining high cutting accuracy. Its robust metal construction and upgraded motor system make it a dependable long-term solution for growing key service.
The machine features a dual cutting station that allows flat, cruciform, laser, and dimple keys — both residential and automotive — to be cut using a single machine, eliminating the need for multiple machines in the workshop.
Key Features
- All-in-one capability for flat, cruciform, laser, and dimple keys
- Dual dedicated cutting stations for optimised workflow
- Integrated 10” touchscreen with intuitive, guided software
- Decoding, copy by original, and code cutting functionality
- Automatic calibration for consistent precision
- Durable metal construction with professional-grade cutters
- Quiet, high-performance motor system
- Fast, single-button start-up
Additional Features
- Integrated industrial-grade monitor • Long-life WIDIA cutter for flat keys
- New motor driver for quieter operation • User-friendly software interface
- Integrated residential key database • Integrated automotive key database
- Optical decoding for flat keys
- Stable internet connectivity between machine and display
- Optional accessories available for expanded key compatibility
These features allow locksmiths to expand service capabilities while maintaining efficient workflow and professional-grade accuracy.

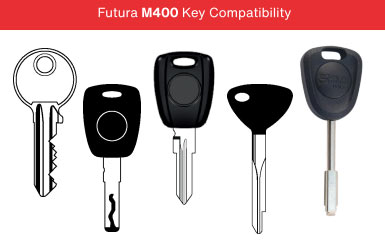

Key Types Supported
The Futura M400 supports a wide range of key types for residential and automotive applications:
- Flat keys
- Cruciform keys
- Laser (sidewinder) keys
- Dimple keys
- Residential keys
- Automotive keys
Optional accessories can further expand compatibility, enabling duplication of nearly any residential or vehicle key on the market.
Technical Highlights
- Dual cutting stations for duplicating multiple key types
- 3-axis movement driven by step motors for precise cutting
- Long-life WIDIA coated prismatic cutter for flat keys
- High-speed dimple/laser cutter up to 12,100 RPM
- Compact footprint for professional workspaces
- Weight: 44.1 lbs (20 kg)
- Integrated industrial-grade display for guided operation
Downloads

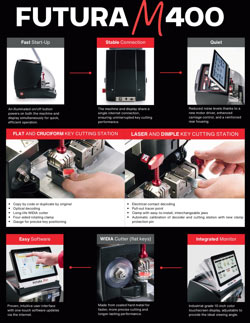

For more detailed specifications and product information:
 |
 |

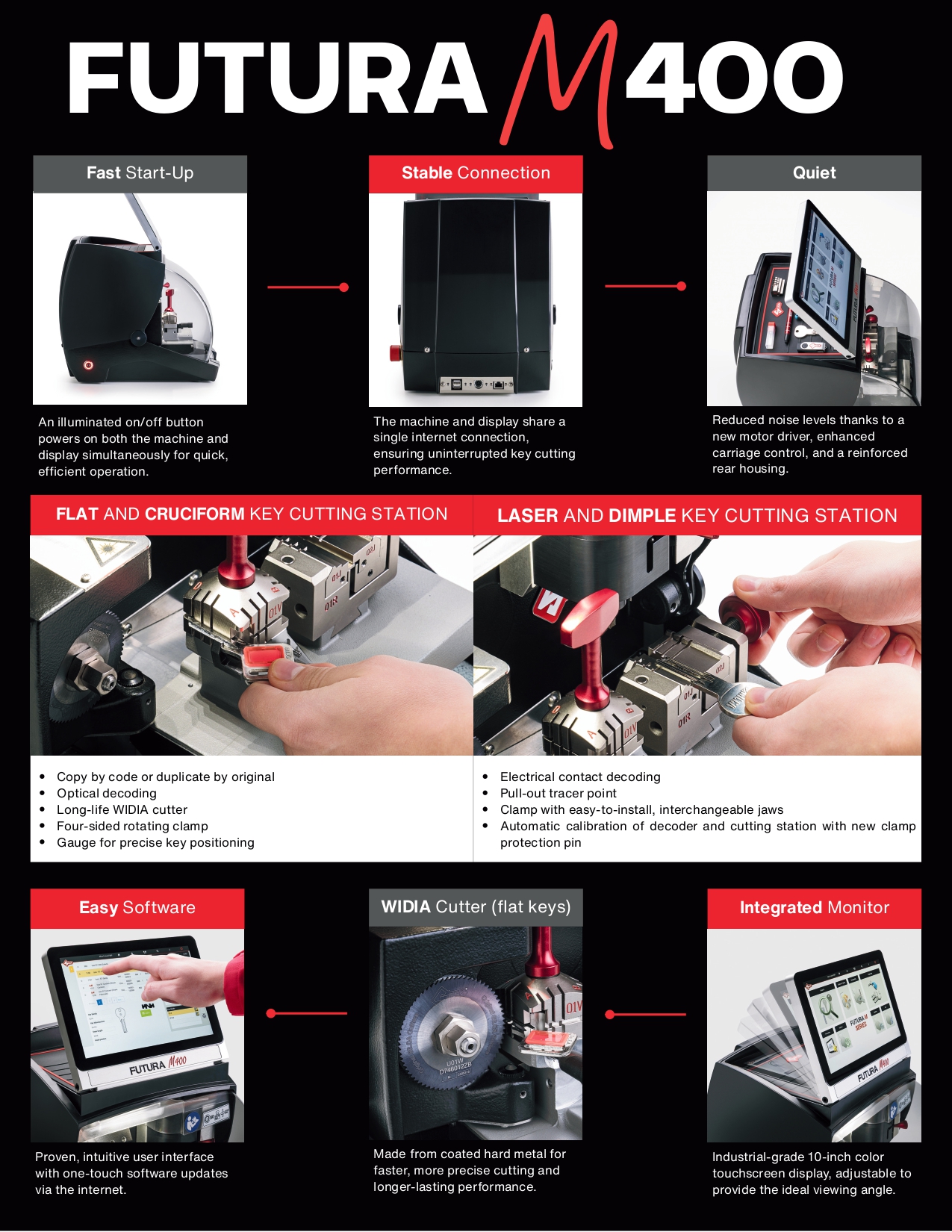

| Download the Futura M400 Flyer | Download the Futura M400 Brochure |
