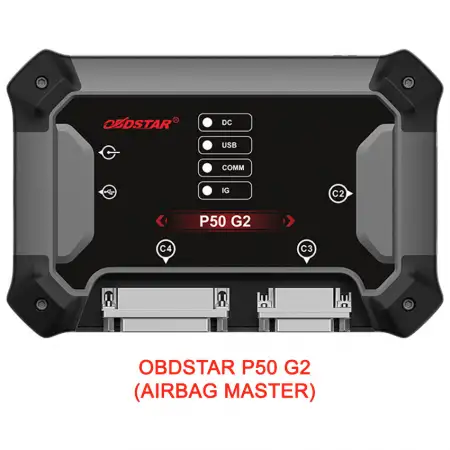

OBDSTAR P50 G2 (AIRBAG MASTER) – PC-Based Airbag Crash Data Reset Tool

OBDSTAR P50 G2 (AIRBAG MASTER) – PC-Based Airbag Crash Data Reset Tool-0 thumb
OBDSTAR P50 G2 Airbag Master Crash Data Reset Tool | KEY4 thumb
OBDSTAR P50 G2 Airbag Master — PC-based SRS crash data reset for 108 brands and 16,600+ ECU part numbers. CAN FD, battery MVBM reset, Toyota SAS reset. thumb
OBDSTAR P50 G2 (AIRBAG MASTER) – PC-Based Airbag Crash Data Reset Tool - PD-OBD-P50G2 p-2 thumb
OBDSTAR P50 G2 (AIRBAG MASTER) – PC-Based Airbag Crash Data Reset Tool - PD-OBD-P50G2 p-3 thumb
OBDSTAR P50 G2 (AIRBAG MASTER) – PC-Based Airbag Crash Data Reset Tool - PD-OBD-P50G2 p-4 thumb
OBDSTAR P50 G2 (AIRBAG MASTER) – PC-Based Airbag Crash Data Reset Tool - PD-OBD-P50G2 p-5 thumb
PD-OBD-P50G2

OBDSTAR P50 G2 (AIRBAG MASTER) – PC-Based Airbag Crash Data Reset Tool

$599.00

  • New Arrival
Operation systemWindows 10 or above
CPUSTM32H723, STM32F407
Working VoltageDC 14V / 24V
Working temperature-10℃ to 55℃ (14℉ to 131℉)
Storage temperature-20℃ to 70℃ (-4℉ to 158℉)
Weight24.69 oz (approx. 0.7 kg)
Dimension6.93 × 4.53 × 1.25 in (176 × 115 × 31.7 mm)
ProtocolCAN FD, CAN (ISO 11898), J1708, ISO 15765, SAE J1939, ISO 9141, ISO 14230 (KWP2000), SAE J1850
R/W ModeOBD, BENCH, BOOT, JTAG/BDM
Warranty1 year; software upgrade period 1 year from registration date

OBDSTAR P50 G2 (AIRBAG MASTER) is OBDSTAR's PC-based crash reset equipment, covering 108 vehicle brands and 16,600+ ECU part numbers including selected MCUs. It can be freely configured with ECU MASTER A/B/C software to unlock additional ECU programming functions.

Also known as Package D. The P50 G2 runs the same hardware platform as the OBDSTAR ECU MASTER; the difference is the base licence and the accessory kit in the box. OBDSTAR's Crash Reset coverage file is labelled Package D, so suppliers and technicians often refer to this unit as "ECU MASTER Package D." Both names describe this product.

Note: This is the PC-based P50 G2, not the OBDSTAR P50 handheld tablet. Both reset airbag crash data; the G2 is a PC-connected unit with CAN FD support and optional ECU MASTER A/B/C expansion.

AIRBAG RESET

  • Supports 16,600+ ECU part numbers, with full protocol compatibility including CAN FD and VPW
  • Supports major passenger, joint-venture and EV models from TOYOTA, HYUNDAI, KIA, BYD, GM, LAND ROVER, JAGUAR, LI AUTO, XPENG, XIAOMI AUTO, HONGQI, CHANGAN, GEELY, CHERY, AITO and others
  • One-click handling of JOYSON/TAKATA SPC airbags on new-energy models — collision and internal faults cleared without damage
  • Supports soldering the (C4-06) RH850/V850 adapter kit to decrypt encrypted RH850 processor-based SRS ECUs for data reading

BATTERY (MVBM) RESET

  • 48V / 16V / 12V multi-voltage battery service
  • Supports OBD, BENCH, BOOT and JTAG modes

SAS RESET

  • Disassembly-free, no-risk operation via BENCH mode
  • One-click reset and calibration for TOYOTA 2nd, 3rd and 4th generation steering angle sensors (SAS)

Expandable

Additional ECU MASTER A, B or C software configurations can be added to the P50 G2 to unlock further functions. These configurations are not included with this listing and are sold separately.

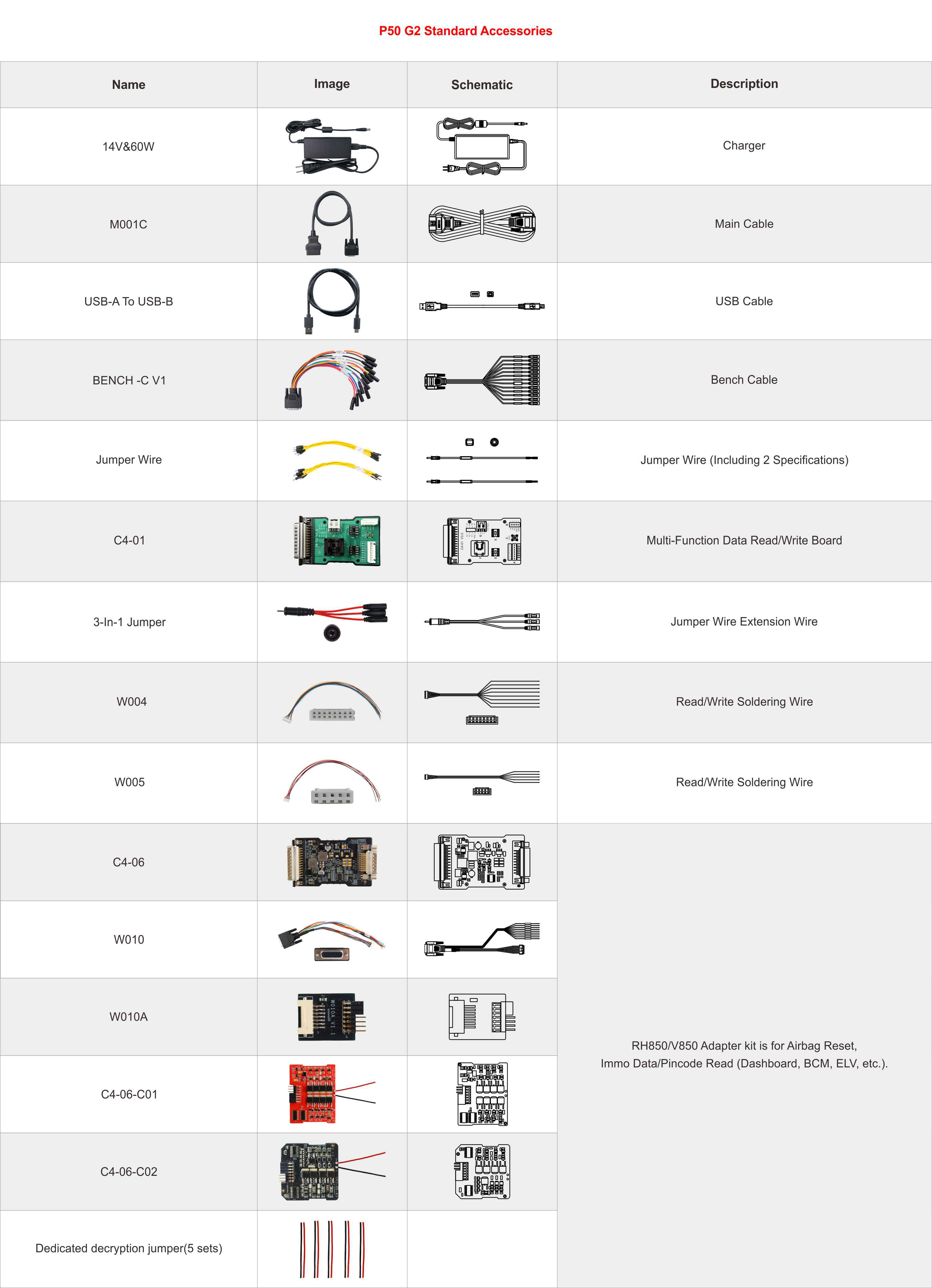

What's in the box

Item Description
14V & 60W Charger
M001C Main cable
USB-A to USB-B USB cable
BENCH-C V1 Bench cable
Jumper wires 2 specifications (J-B ×9, J-E ×8)
3-in-1 jumper Jumper wire extension
C4-01 Multi-function data read/write board
W004, W005 Read/write soldering wires
RH850/V850 adapter kit C4-06, W010, W010A, C4-06-C01, C4-06-C02 and dedicated decryption jumpers (5 sets) — for airbag reset and IMMO data / pincode read on dashboard, BCM, ELV and similar modules

The RH850/V850 kit is what makes the encrypted RH850 SRS function possible, and it is included — no separate purchase needed.

The P50 G2 does not include the ECU STD KIT1 (C4-10 adapter, W006 and jumper sets J-A, J-C, J-D, J-F, J-L, J-N) that ships with ECU MASTER units

For use by qualified technicians following manufacturer-approved SRS procedures. Resetting crash data does not repair damaged airbags, pretensioners or sensors — replace and validate all affected components. Verify the exact ECU part number against OBDSTAR's current coverage list before ordering.



Official Coverage List & User Manual
View the latest supported ECU coverage, software updates and operating instructions directly from OBDSTAR: View Official OBDSTAR Downloads →
Coverage lists and downloads are maintained by the manufacturer and may change without notice. Verify vehicle and ECU compatibility before purchasing.
