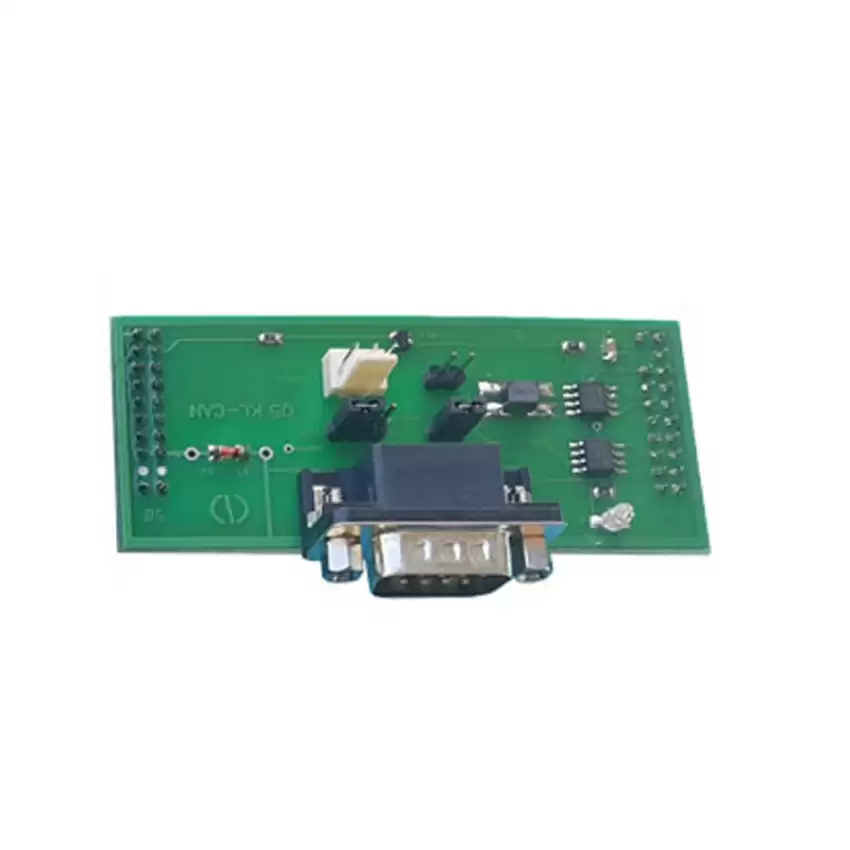

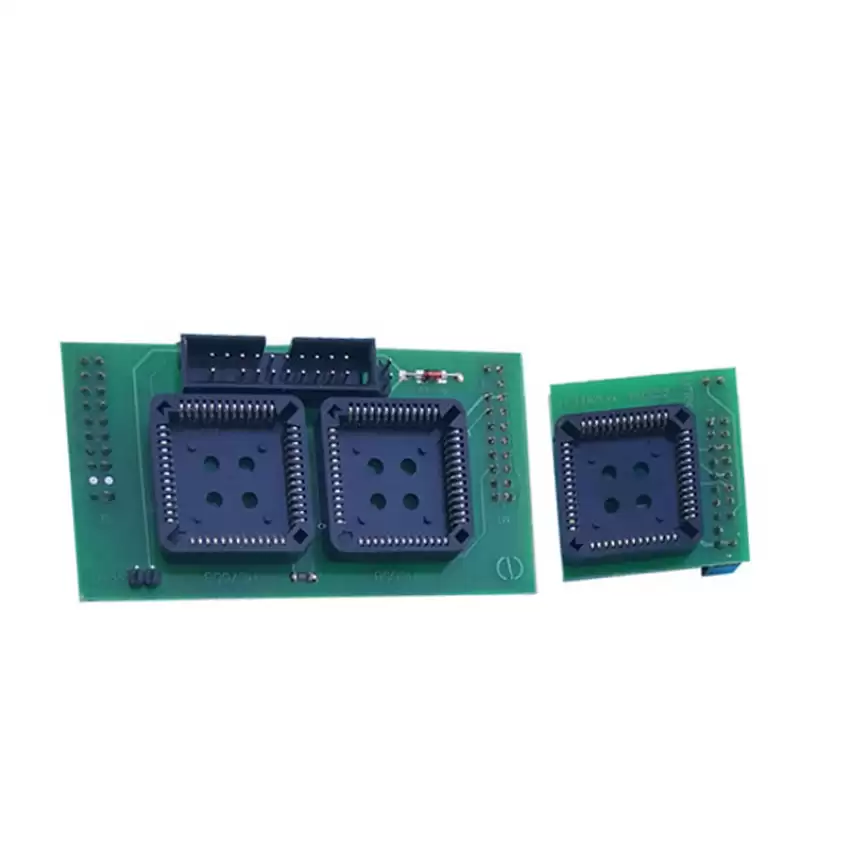

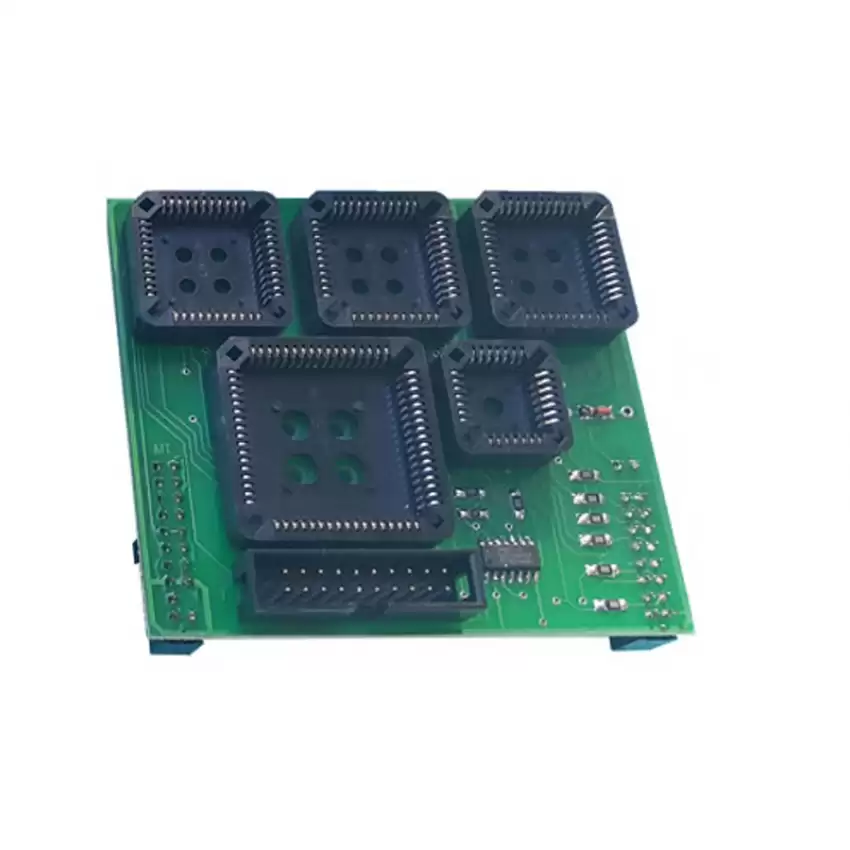

Orange5 Universal Programmer Basic (HC05B-HC705B) (TMS) (HC11A/EXX-PLCC52) (05 KL-CAN) New Sale Price thumb
Orange5 Basic Set EEPROM and MCU Programmer - PD-SCO-ORANGE5SET  p-2 thumb
PD-SCO-ORANGE5SET

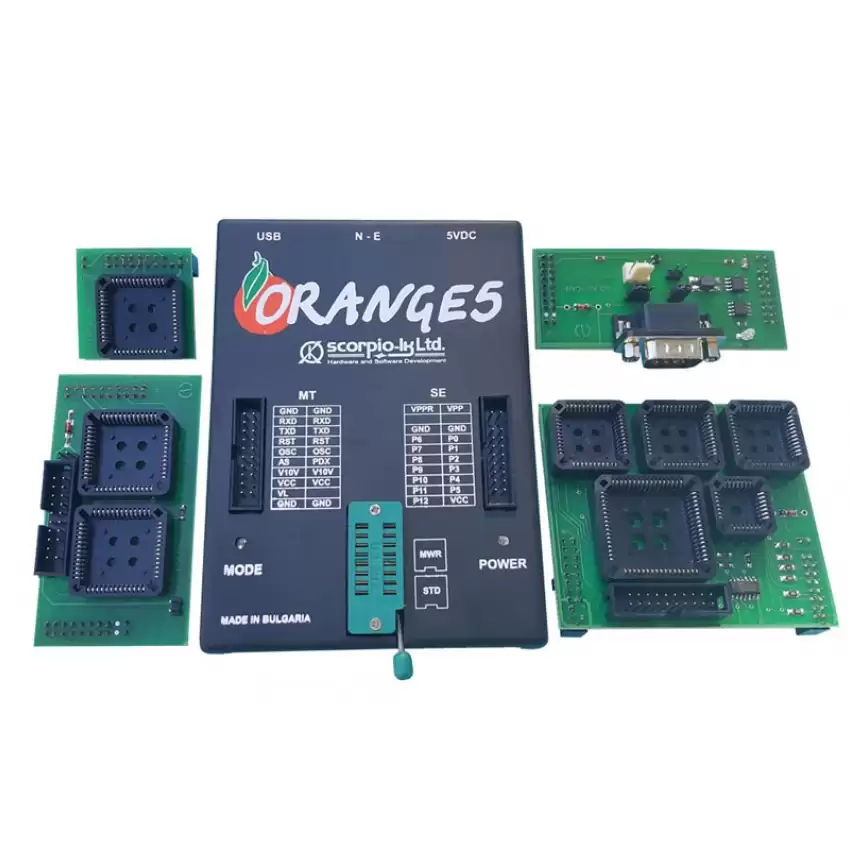

Orange5 Basic Set EEPROM and MCU Programmer

$400.00

Weight12.3520oz

Orange5 is a professional programming device for memory and microcontrollers.

Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which gives fast and easy capability to add new types of microschemes, precisely meeting manufacturers' requirements to read/write algorithms.

Technical Information:

  • USB power supply (USB2.0/3.0)
  • Universal easy to plug panel ZIF16 for EEPROM
  • Control of contacts in the sockets
  • Two expansions compatible with Orange4 and Omega MTRK
  • Protection against overcurrent
  • Overload voltage protection
  • Two types of power supply: Standard (USB) and enhanced (USB + external power supply
  • Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V)
  • Additional static 10V for microcontrollers
  • High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
  • Wave cycle generator with frequency ( up to 24 MHz) and out voltage(2.0...5.0V) adjustment.
  • Capability of functional emulation of class CDC USB devices
  • Built-in 32-bit virtual machine
  • Supported interface: I2?, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
  • Programmer is enclosed in a functional box
  • Supported OS: Windows XP / 7 / 8

Orange 5 Programmer Feature:

  • Supports any COM ports, incuding virtual ones from 1 to 20
  • Works with text (ASCII) and HEX mode
  • Creating a list of commands that allows editing and fast sending
  • Fine-tuning the exchange rate
  • Saving files including command and port settings.
  • Saving incoming data in binary files
  • File transfer via serial port.
  • Delay settings for bytes and blocks
  • "Echo" mode
  • Delay settings between incoming data
  • Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
  • Program doesn't need to be installed
  • Supports Orange5 programmer in emulation mode.
