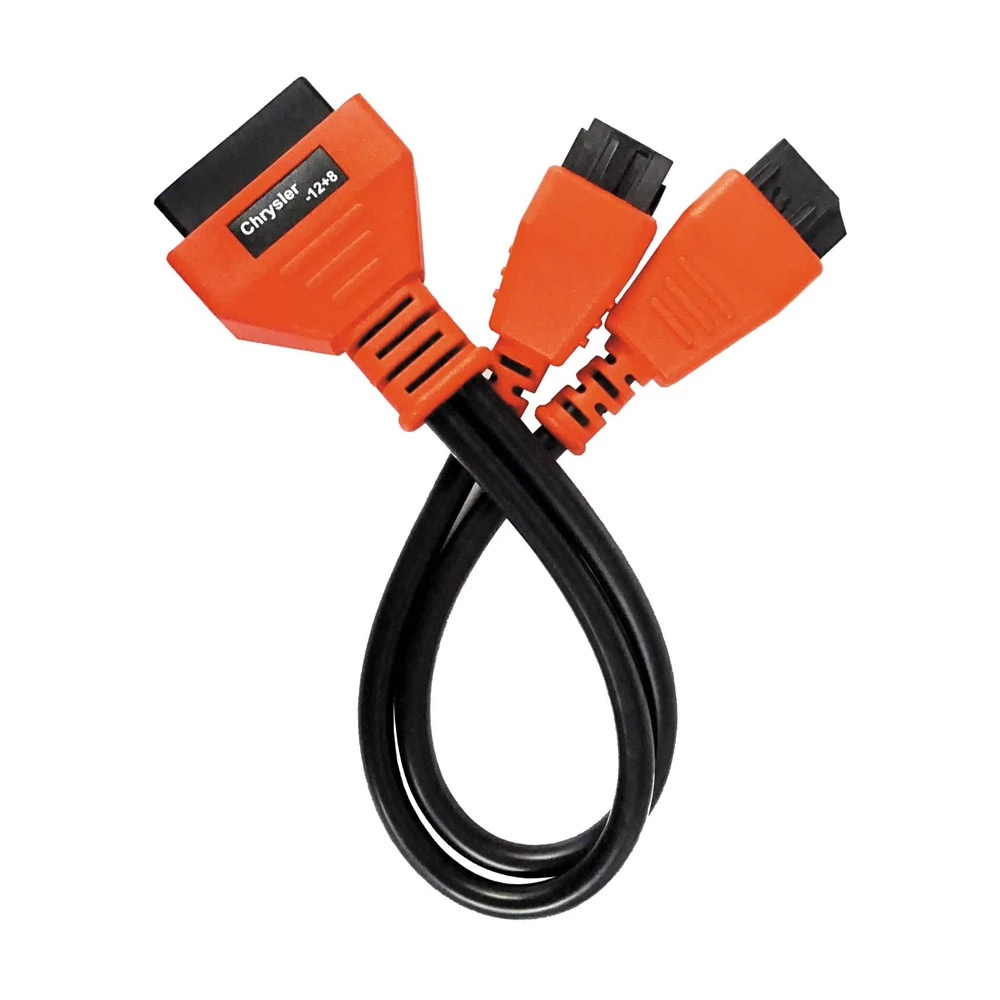

Autel Chrysler 12+8 Cable Adaptor for Autel MaxiSys Elite/ MS908/ MS908P/ MS908S Pro

Autel Chrysler 12+8 Cable Adaptor for Autel MaxiSys Elite/ MS908/ MS908P/ MS908S Pro-0 thumb
Chrysler 12+8 Cable Adaptor Autel MaxiSys Elite/ MS908/ MS908P thumb
AC-AUT-CHRADPT

Autel Chrysler 12+8 Cable Adaptor for Autel MaxiSys Elite/ MS908/ MS908P/ MS908S Pro

2 answered questions
$24.95Was $38.75 (Save 35.5%)

The 12+8 Adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tools to only reading DTCs and viewing data.

2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM.

The new Chrysler 12+8 Diagnostic Cable allows communication with late model Chrysler, Dodge, Jeep, Fiat & Alfa vehicles.

Suitable for:
The 12+8 Adapter connects to the Autel MaxiSys VCI.
The Cable Adapter can be used with Autel Maxisys Series Scanners MS906BT+ like MS906BT, MS906S, MS908, MS908S, MS908S PRO, Maxisys Elite

Apply for:
1. Use with Autel MaxiSys scanner to diagnose on Chrysler Jeep Renegade Wrangler 300C after 2018 year
2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

Features and Functions:

  1. Read/ Clear Codes
  2. Perform Active Tests
  3. View Generic & Manufacturer Live Data
  4. Perform TPMS OBDII Relearn
  5. Coding and Adaptation with Maxisys Tablet Tools MS906BT+

ADAS calibrations (Requires Maxisys ADAS Software)

Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:

  • 2013+ RAM Promaster
  • 2015+ Fiat 500x
  • 2015+ RAM Promaster City
  • 2016+ Jeep Renegade
  • 2017+ Alfa Romeo Giulia
  • 2017+ Jeep Compass
  • 2017+ Jeep Cherokee
  • 2018+ Jeep Wrangler
  • 2018+ Ram Trucks
  • 2018+ Dodge Durango
  • 2018+ Jeep Wrangler (JL Body only, not JK)
  • 2018+ Dodge Journey
  • 2018+ Jeep Grand Cherokee
  • 2018+ Chrysler Pacifica
  • 2018+ Chrysler 300
  • 2018+ Dodge Charger
  • 2018+ Dodge Challenger
  • 2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles
  • 2020+ ALL FCA vehicles

Questions & Answers 2 answered

Ask a question

No, this cable will not work with the AutoProPAD. The Autel Chrysler 12+8 Cable Adaptor is designed specifically for Autel MaxiSys series scanners (MS908, MS908P, MS908S Pro, MaxiSys Elite, etc.) and is not compatible with the AutoProPAD.

The good news is we carry three AutoProPAD-compatible options for bypassing the Security Gateway on 2018+ Chrysler, Dodge, Jeep, Ram, and Fiat vehicles:

1. Brute Force Chrysler/Dodge/Jeep 2018+ Universal Programming Cable https://www.key4.com/brute-force-chry... Budget-friendly option. Certified by Lock Labs for the AutoProPAD and AutoProPAD LITE. Works by tapping CAN HI/LO probes into the vehicle wiring.

2. XTOOL Chrysler/Dodge/Jeep 2018+ Bypass Cable https://www.key4.com/xtool-chrysler-d... Made by XTOOL, the manufacturer of the AutoProPAD. Plug-and-play.

3. The Diagnostic Box TDB094 Bypass Cable (Recommended) https://www.key4.com/the-diagnostic-b... Our premium choice. Extra-long, plug-and-play cable with Star, RFH, and ProMaster connectors all in one — giving you the broadest Stellantis coverage. Compatible with all AutoProPAD models plus SmartPro, Autel IM508/608, and Code Cannibal.

Any of these three will get you programming on 2018+ FCA vehicles with your AutoProPAD.

Answered by KEY4 Support on 12 May 2026

Yes, the Autel Chrysler 12+8 Cable is compatible with the MaxiIM KM100. The cable connects to the Radio Frequency Hub (RFH) on Chrysler / Dodge / Jeep / Ram vehicles equipped with the Secure Gateway Module (SGW), and the other end terminates in a standard OBD-II connector that can be plugged into any Autel tool with an OBD-II port — including the KM100, MaxiSys Elite, MS908, MS908P, and MS908SPro.

Autel specifically recommends connecting through the RFH rather than the green CAN bus "star connector," and the 12+8 cable is the official accessory for this connection.

Answered by KEY4 Support on 15 Jun 2026
