Scorpio-LK SLK-07E DST AES Smart Key Emulator for Tango - Toyota & Lexus Page1 AA

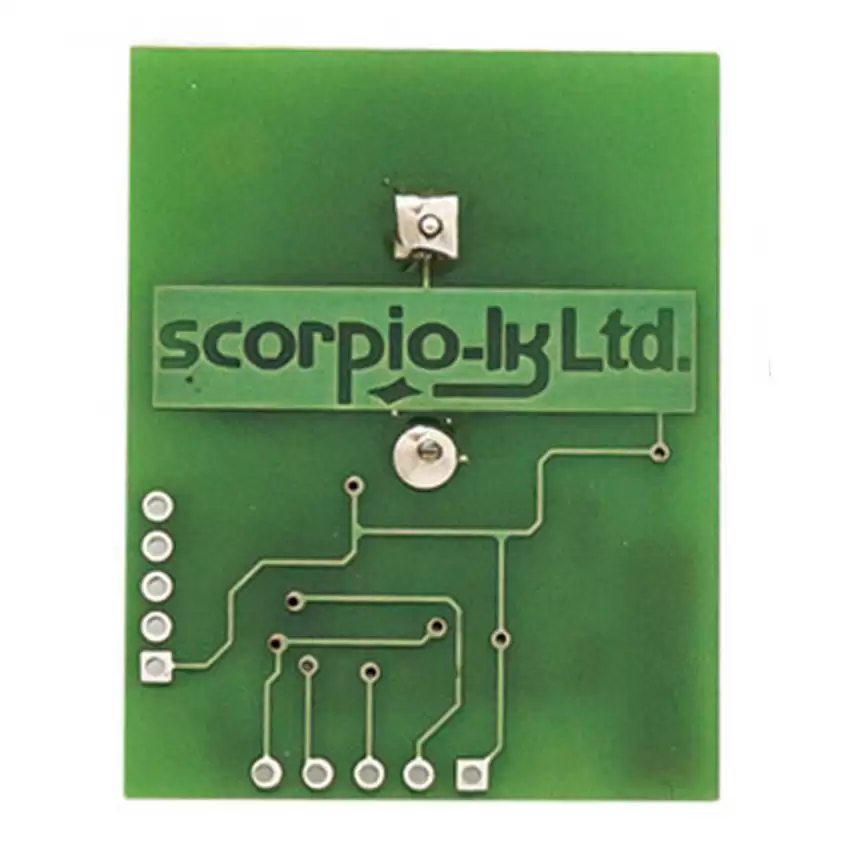

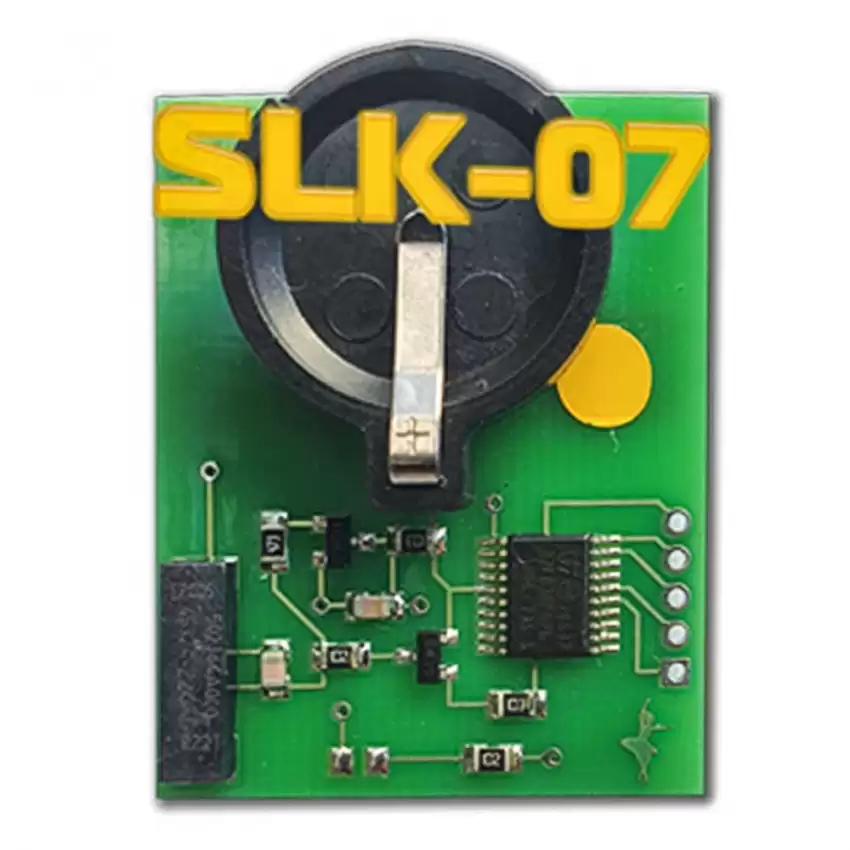

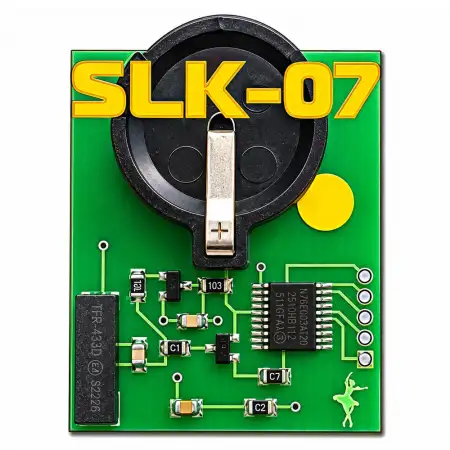

The Scorpio-LK SLK-07E is a DST AES smart key emulator for the Tango programmer, supporting Toyota and Lexus 128-bit smart keys with Page1 AA. The board is printed “SLK-07”; Scorpio-LK sells it as SLK-07E.

Functions

• Cloning existing Toyota/Lexus 128-bit smart keys with Page1 AA onto SLK-07E
• SLK-07 Utility: allows used (reset) or otherwise unauthorized Toyota/Lexus Page1 AA smart keys to be added to the vehicle — requires Toyota Techstream online service (3rd-party service, not provided by Scorpio-LK) and an internet connection
• All Keys Lost on supported locked Toyota/Lexus smart ECUs (2017–2022) through Tango+ Toyota via J2534 PassThru

Note: Scorpio-LK states that the SLK-07 cloning and utility functions themselves do not solve All Keys Lost. All Keys Lost is done through Tango+ Toyota on supported smart ECUs.

Compatibility

• Model: SLK-07E (Scorpio-LK color code: Gold)
• Technology: DST AES (128-bit), original chip RF430
• Toyota/Lexus: Page1 AA
• Functions (Toyota maker, SLK-07 maker) are included in the Tango annual subscription

Important: Scorpio-LK lists Page1 AA for both DST AES and HITAG AES smart keys. SLK-07E is for the DST AES version. HITAG AES Page1 AA systems are covered by SLK-08.

Battery Information

SLK-07E retains programmed data when it is not powered - removing the battery does not erase it, but the emulator still needs a battery to operate.

Requirements

• Tango programmer with an active Tango annual subscription (sold separately)
• For OBD procedures: Tango+ Toyota, a J2534 PassThru adapter and a Windows PC
• Battery: CR1616, CR1620 or CR1632 - not included, obtain locally

Package Contents

• 1 × Scorpio-LK SLK-07E emulator

Battery not included.

Official Documentation

Tango+ Toyota 2017+ documentation: https://www.scorpio-lk.com/downloads/Tango/Toyotaplus2018.pdf

Scorpio-LK SLK Emulators: https://scorpio-lk.com/tango.html#slkemulators
