Scorpio-LK TANGO SLK-03 Emulator Support DSTAES Smart Keys
![Scorpio-LK TANGO Emulator SLK-04 Supports DSTAES Smart Keys [Page1 A9, F3]](/thumbnail/crop/100/100/products/emulator/EM-TNG-SLK04/EM-TNG-SLK04-1.jpg)
| Condition | New |
scorpio-lk / Emulator
System Requirments:
- Tango programmer
- J2534 PassThru compliant OBD cable
- SLK emulator corresponding to system type
- Toyota maker software activation
- SLK-0x software activation
- Toyota TIS Techstream
- Windows XP/7/8/10 PC/Laptop

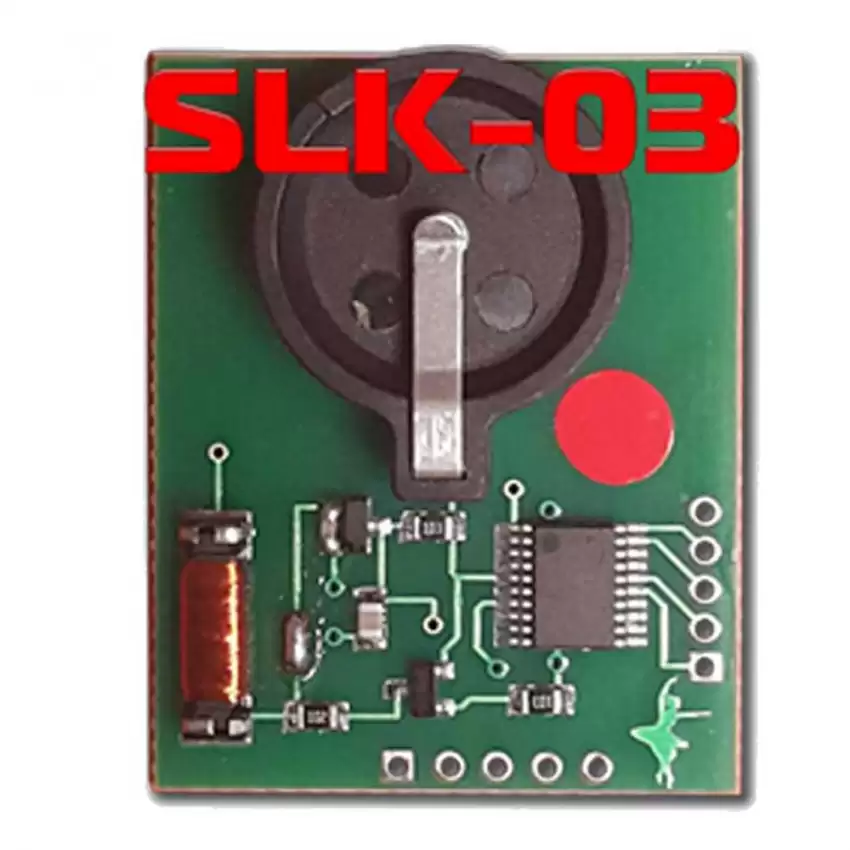

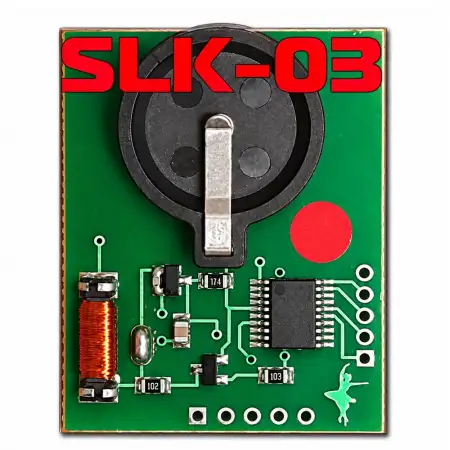

The SLK-03 Emulator is compatible with DSTAES smart keys [Page1 88, A8], offering support for emulation, cloning, and image generation. To access the full functionality of the emulator, activation of the SLK-03 additional software is required.
| Page1 | Logic | Emulator | Color Code |
| 94 | DST40 | SLK-01 | Yellow |
| D4 | DST40 | SLK-01 | Yellow |
| 98 | DST80 | SLK-02 | Blue |
| 88 | DSTAES | SLK-03 | Red |
| A8 | DSTAES | SLK-03 | Red |
| A9 | DSTAES | SLK-04 | White |
