Abrites Full Software and Hardware Bundle for Ford

The Abrites Full Software and Hardware Bundle for Ford is the complete all-in-one kit for Ford key and module work. It pairs the AVDI Plus interface, the ZN085 RH850/V850 programmer and the SAE J1850 adapter with the full Abrites Ford software range — five items in one order, priced below the cost of buying them separately.

What you can do with it

• PATS initialisation via OBDII on Ford vehicles up to 2021 — initialise and synchronise a replaced PCM, BCM, ABS, RFA module, SCR module, instrument cluster (IPC) or TCU
• All keys lost and spare key programming on the latest 2021+ Ford models with an RH850 processor in the BCM, by RH850 MCU dump — including the F-150 2021+, Maverick 2023+, Mustang Mach-E 2021+ and Transit 2021+
• PATS initialisation on those 2021+ RH850 models as well
• Older J1850 vehicles — the J1850 adapter lets the AVDI communicate with older Ford and other vehicles that use SAE J1850 instead of CAN

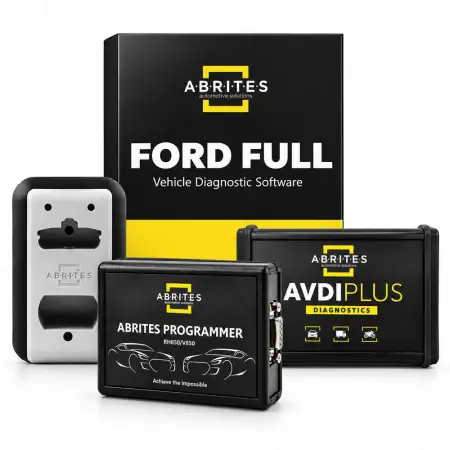

What’s in the bundle

Software licences

• FR010 PATS Initialisation for Ford
• FR011 Key Learning by RH850 Dump for Ford (2021+)

Interface, programmer and adapter

• AVDI Plus vehicle diagnostic interface
• ZN085 RH850/V850 Programmer — needed for the FR011 procedures
• J1850 SAE J1850 adapter for AVDI

Good to know

• FR011 supports BCM version 1573. If you come across a different BCM version, report it to Abrites so it can be added.
• Even when a module is initialised and synchronised successfully, a software-version mismatch on a donor module can still prevent engine start.
• A key and transponder programmer such as the ZN103 PROTAG is not included.
• The software licences need an active AVDI annual subscription to run. Licences are delivered electronically.
• Already have the hardware? The FR00F Full Software Package for Ford gives you both licences on their own.
