Abrites Full Software and Hardware Bundle for Mercedes-Benz

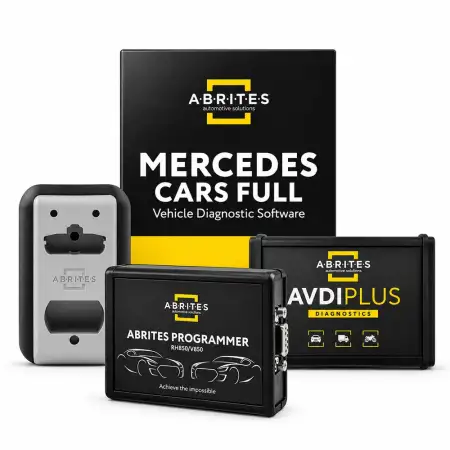

The Abrites Full Software and Hardware Bundle for Mercedes-Benz is the complete all-in-one kit for Mercedes-Benz passenger car work. It combines the AVDI Plus, PROTAG and ZN085 RH850/V850 programmer with nine Abrites Mercedes-Benz licences and the bench hardware Abrites includes for them — 19 items in one order, priced well below the cost of buying them separately.

What you can do with it

• FBS4 module replacement — read FBS4 data, set used ECUs, TCUs and DSM modules to virgin and personalise them to the car, with or without saved FBS4 data
• 7G-Tronic TCU work — virgin and personalisation of VGS4-0-NAG2 units by diagnostic CAN, plus 9G-Tronic and DCT TCU personalisation without FBS4 data
• Instrument cluster calibration — IC213 and IC222 by OBDII (with AMG menu activation), and IC177 (2018–2023) and IC223 / IC177 M (2020+ / 2023+) on the bench with the ZN085
• Electronic steering lock repair — clear the ‘ELV Component Fault’ on FBS4 vehicles, in the car or on the bench
• High-voltage battery unlock and reset after a crash or undervoltage on mild hybrid, plug-in hybrid and electric models
• EZS / EIS reading on infrared-key cars and IR key emulation with the USB IR adapter

What’s in the bundle

Software licences

• MN030 FBS4 Instrument Cluster Calibration
• MN032 DAS Manager for FBS3/FBS4
• MN033 FBS4 Electronic Steering Lock Repair
• MN034 FBS4 Personalisation Expert
• MN037 Cluster Calibration IC177
• MN038 Cluster Calibration IC223 and IC177 M
• MN039 VGS4-NAG2 TCU Personalisation by Diagnostics
• MN040 TCU Personalisation without FBS4 Data
• MN042 Battery Unlock and Reset for Hybrid and EV

Interface and programmers

• AVDI Plus vehicle diagnostic interface
• ZN103 PROTAG key and transponder programmer
• ZN085 RH850/V850 Programmer with the ZN092 5V to 3.3V adapter
• ZN130 ABPROG Programmer Set
• ZN151 Distribution Box Set

Adapters and cables

• ZN074 ECU reading set
• ZN076 USB infrared adapter
• CB012 direct CAN-BUS / LIN-BUS cable set
• CB026 FBS4 / FBS3 ELV connection cable

Good to know

• Some procedures need extra leads that are not included: the EM019 emulator is required for IC223 / IC177 M calibration with MN038; the CB034 DSM/ISM cable, CB088 7G-Tronic cable and CB030 MD1/MG1 cable are used for some MN032 / MN034 / MN039 bench jobs. Ask us and we will supply them.
• MN030 on IC222 clusters (W205, W222 pre-facelift) also needs an EM008, EM018 or EM014 odometer emulator.
• Mercedes-Benz trucks and buses (MN031) are not part of this bundle.
• The software licences need an active AVDI annual subscription to run. Licences are delivered electronically.
• Already have the hardware? The MN00F Full Software Package for Mercedes-Benz cars gives you eight of these licences (all except MN042).
