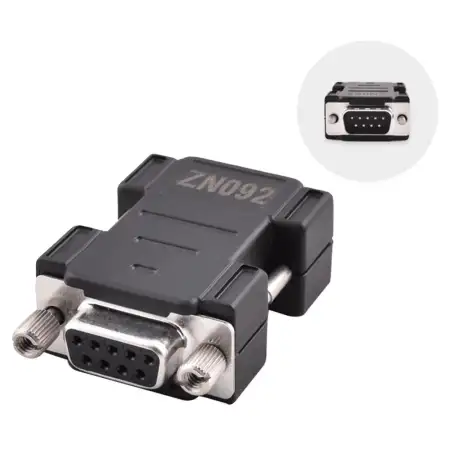

Abrites ZN092 Adapter for ZN085 – 5V to 3.3V

The Abrites ZN092 Adapter is used together with the ZN085 RH850/V850 Programmer for bench work on automotive modules. It shifts the programmer’s 5V logic level to 3.3V, so the ZN085 can talk to microcontrollers that run on 3.3V logic.

What it is required for

• Mercedes-Benz IC177 cluster calibration (Visteon R7F701403) with the MN037 licence
• Mercedes-Benz IC223 / IC177 M cluster calibration (Visteon R7F701529 BGA) with the MN038 licence — this job also needs the EM019 emulator

The ZN092 was originally designed for programming IC177 clusters, and it suits any module whose MCU uses 3.3V logic — it is not brand-specific. The connection to the module is made with the CB501 RH850/V850 cable supplied with the ZN085.

An AVDI with an active annual subscription is required. Hardware warranty is one year from the date of purchase, covering defects in materials and workmanship under normal use.
