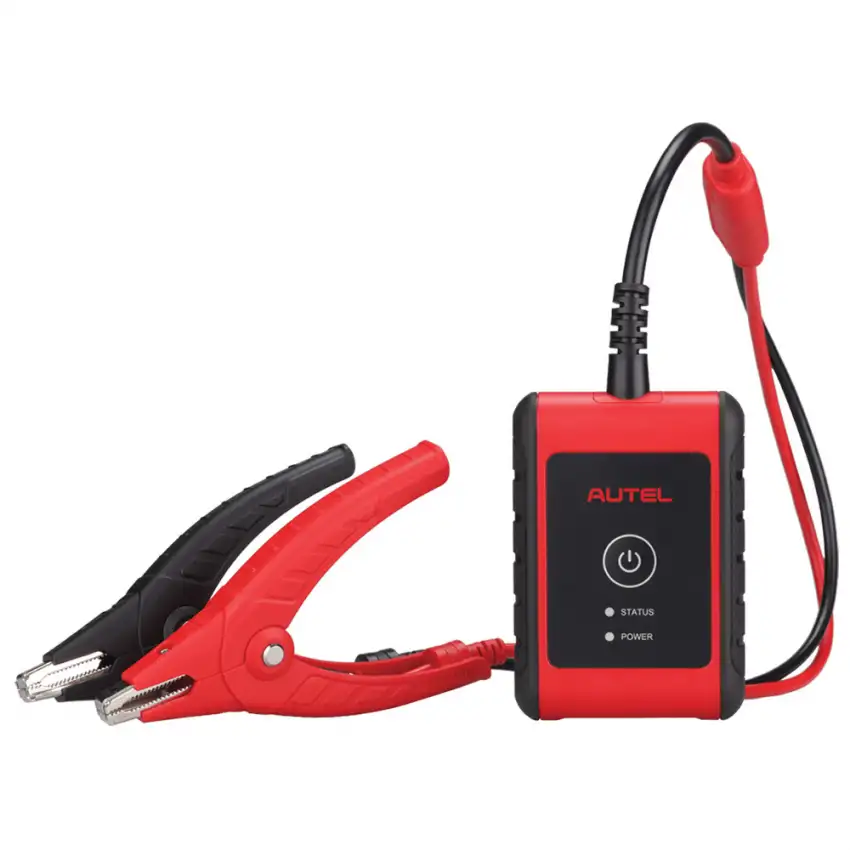

Autel MaxiBAS BT506 Battery Tester Electrical System Diagnostic & Analysis Tool
| Connectivity | USB 2.0, Type C, Bluetooth® V3.0 BR/EDR+ V4.2 LE Dual-Mode |
| Input Voltage | 5V DC |
| Working Current | < 150 mA at 12 V DC |
| Internal Battery | N/A |
| CCA Range | 100 to 2000 A |
| Voltage Range | 6 to 36 V |
| Operating Temperature | -10°to 50° C (14° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Dimensions (W x H x D) | 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) |
| Weight | 320 g (0.7 lb.) |
| Condition | New |
Autel /
The BT506 is a battery and electrical system analysis tool that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle’s battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results. Includes connected cable with clamps.
Description:
- BT506 is a Battery and Electrical System Analysis tool and App
- Includes Connected Cable with Clamps
- Support In-vehicle and Out-of-vehicle Testing of Passenger Vehicle Batteries
- Test 6- and 12-volt batteries: 100 - 2000 CCA
- Test 12- and 24- cranking/charging systems
- Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
- Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
- Download Free App from Google Play and the App Store
