Abrites Full Software and Hardware Bundle for Hyundai and Kia
| Function | Key programming and PIN reading, module neutralisation, VIN calibration, cluster calibration |
| Vehicle makes | Hyundai, Kia, Genesis |
| Requires | Active AVDI annual subscription (AMS) to use the licences |
| Availability | Hardware ships; software delivered electronically |
Abrites / Key Programmers
The Abrites Full Software and Hardware Bundle for Hyundai and Kia is the complete all-in-one kit for Hyundai, Kia and Genesis work. It combines the AVDI Plus, PROTAG, ZN085 RH850/V850 programmer and Distribution Box Set with the full Abrites Hyundai / Kia software range — eight items in one order, priced below the cost of buying them separately.
What you can do with it
- Key programming and PIN code reading on nearly all Hyundai and Kia vehicles up to 2022 via OBDII — smart and mechanical keys, PIN extraction for smart-key vehicles, and reset to new of used keys
- Module neutralisation — neutralise used ECUs on bench, and VCUs on bench for the whole Hyundai / Kia EV range, with no donor PIN needed; plus smart system, ESCL, PDM and immobiliser neutralisation via OBD when the donor PIN is known
- VIN calibration in new or used ECMs / VCUs, digital dashboards and eCall modules
- Instrument cluster calibration when replacing a dashboard, including 2020+ DNKR clusters (Hyundai Tucson, Kona, Elantra, i20; Kia Sportage, Niro, EV6, Carnival; Genesis G80, GV70, GV80) with the RH850/V850 programmer

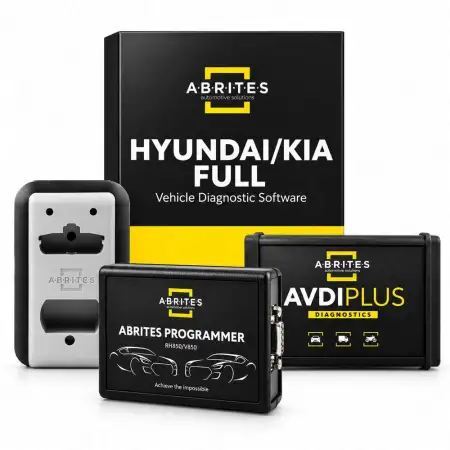

What’s in the bundle
Software licences
- HK010 Advanced Module Neutralisation
- HK011 PIN and Key Manager
- HK012 VIN Calibration
- HK013 Cluster Calibration
Interface and programmers
- AVDI Plus vehicle diagnostic interface
- ZN103 PROTAG key and transponder programmer
- ZN085 RH850/V850 Programmer — with the CB501 cable for cluster calibration
- ZN151 Distribution Box Set — for on-bench neutralisation
Good to know
- On-bench ECU / VCU neutralisation also needs the CB403 DS-Box extended cable set, which is not included. Ask us and we will add it.
- Keys have to be relearned to the vehicle after a neutralised module is installed.
- The software licences need an active AVDI annual subscription to run. Licences are delivered electronically.
- Already have the hardware? The HK00F Full Software Package for Hyundai and Kia gives you all four licences on their own.
